Model: APR-Z0202

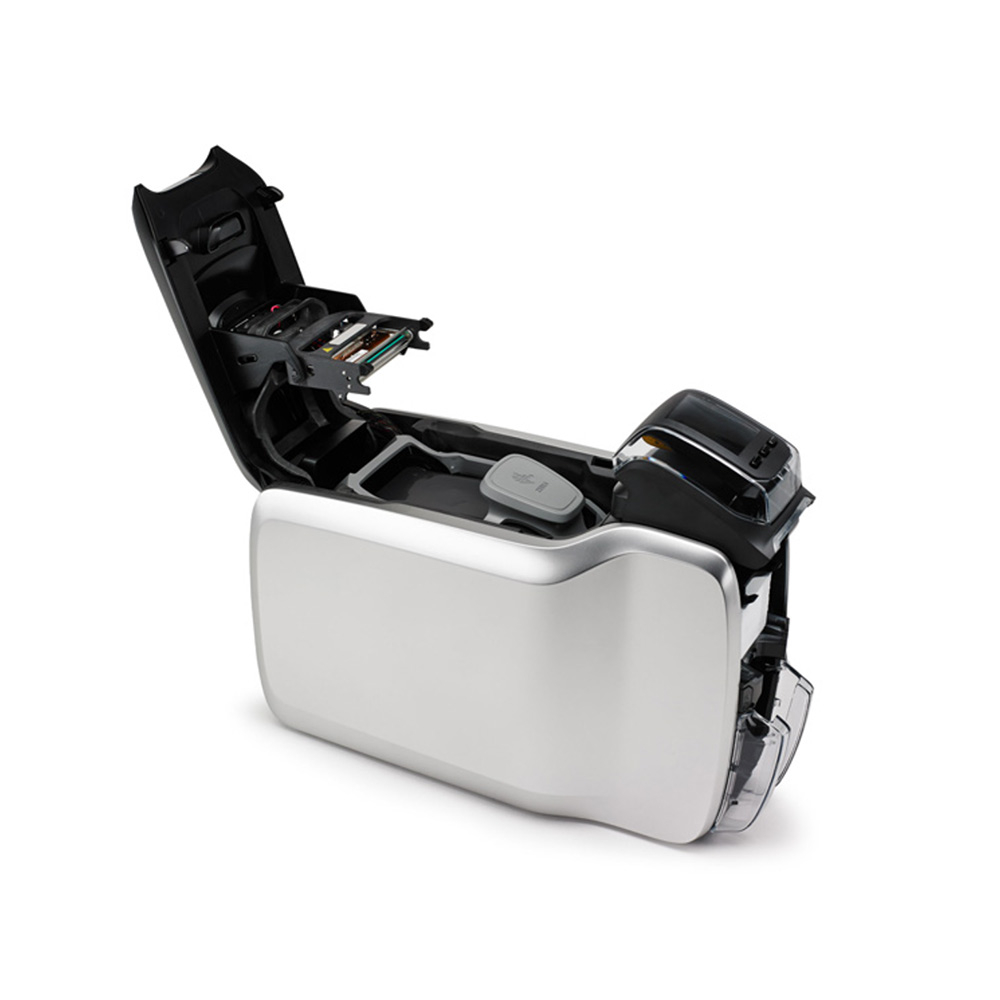

Card Printer(Single Side) APR-Z0202
$1886.00
暂无数据
Shipping cost within 10kg is $100, and for every additional 1kg, the shipping cost increases by $5
Description

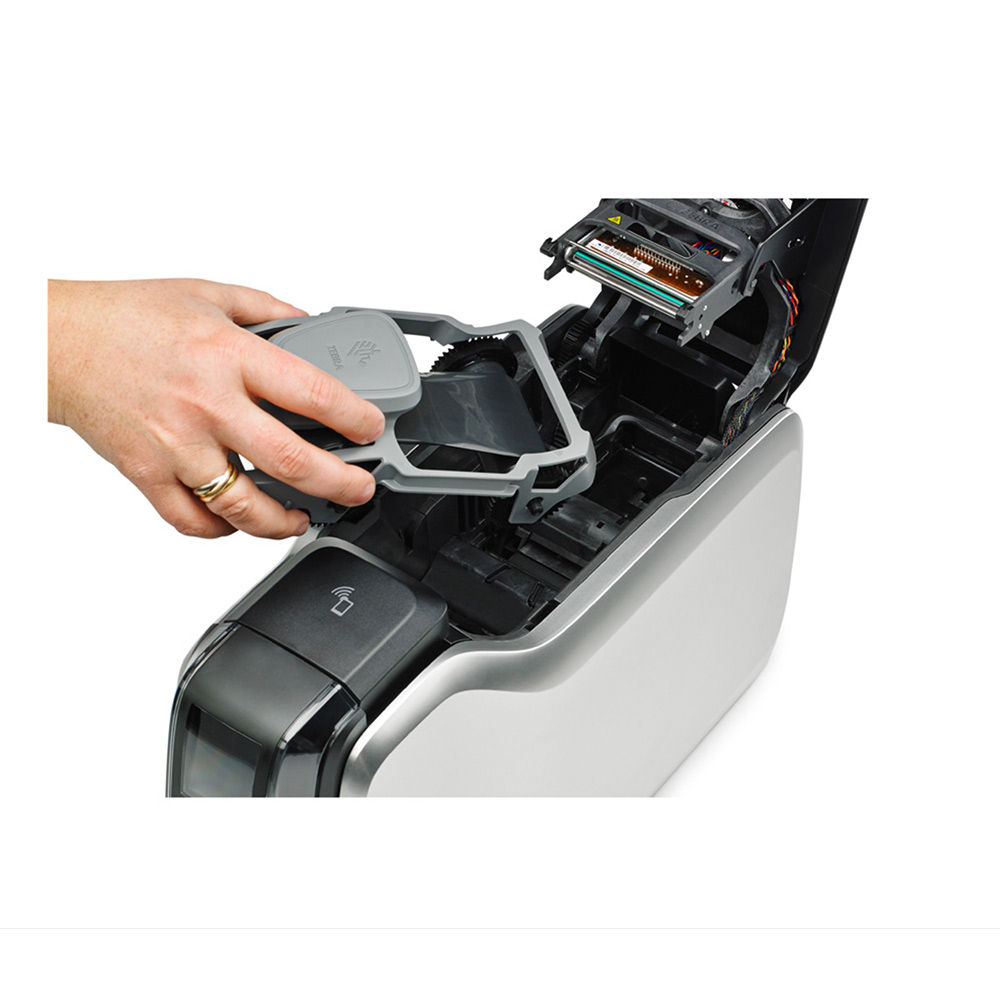

Highly graphical LED/LCD interface with highly intuitive and well-validated icons, animations and text-based messages in your language, making it easy for users to understand printer needs and how to perform virtually any function, including how to resolve printer jams Paper issues, installing ribbon, loading ribbon or cards, etc. The new card feeder is cleverly designed and can handle cards of different thicknesses at any time. Simple deployment, plug-and-play, with customizable encoding, printer and host device authentication.
Detail
|
Purchasing code (product model) |
APR-Z0202 |
|
Performance parameters |
|
|
Standard features |
300 dpi (11.8 dots/mm) printing resolution • 2 GB flash memory • Image size: 1006 x 640 pixels • Automatic ribbon correction • USB 2.0 and Ethernet 10/100 connectivity • Self-adjusting card input slot (30 mil) holds 100 cards • Card output slot (30 mil) holds 100 cards • Supports manual card insertion, with LED light and card slot • Graphic color LCD display • 3 tri-color printer status lights • Kensington® security lock slot • Print Touch NFC tag for online printer help and access to documentation • Printer and host device authentication • data encryption |
|
Print specifications |
• Dye sublimation thermal transfer DTC (print directly onto the card surface) method • Full color or monochrome printing • Single-sided and double-sided printing • Borderless printing (standard CR-80 media) Printing throughput (cards /hour) is based on batch printing (with USB connection). Note, print The number of times varies depending on computer configuration. • 200 cards/hour (single-sided YMCKO full color printing) • 140 cards/hour (double-sided YMCKOK printing) • 900 cards/hour (single-sided monochrome printing) • 450 cards/hour (duplex monochrome printing) |
|
Card Compatibility: |
• Card thickness: 10–40 mil • Card size: CR80 ISO 7810 ID-1 format, CR79 • Card material: PVC and PVC composite • Card with adhesive back and writable back • Spot or monochrome printing on cards <20 mil thick and CR79 cards only |
|
environment |
Operating temperature: 59ºF to 95ºF/15ºC to 35ºC storage temperature: 23ºF to 158ºF/-5ºC to 70ºC Operating Humidity: 20% to 80% (non-condensing) Storage humidity: 20% to 90% (non-condensing) Media storage: —Temperature : 41ºF to 77ºF/5ºC to 25ºC —Humidity : 35% to 65% (non-condensing) |
|
Electrical Specifications |
• Automatic switching of single-phase AC power • Operating range: 90–132 VAC and 190–264 VAC RMS • Frequency range: 47–63 Hz • FCC Class A |
|
Single side size |
10.2"(L) x 6.2"(W) x 15.1"(H) 258mm (L) x 157mm (W) x 383mm (H) |
|
Single side weight |
8.8 lbs (4.0 kg) |
|
Communication and interface functions |
USB 2.0 — standard Built-in 10/100 Ethernet—standard 802.11ac ( MFi certified)—optional |
|
Encoding options and specifications |
• Magnetic stripe encoder—ISO 7811 (new and pre-encoded; code lanes 1, 2 and 3; high coercivity and low coercivity; magnetic stripe down and up; printers that support duplex printing) * • Combined MIFARE® ISO 14443 A & B (13.56 MHz) contactless with 1 SAM mode block socket and ISO 7816 contact encoder (EMV Level 1 certified) and complies with PC/SC requirements* (optional module supports reading Prox ® ISO 11784 and iCLASS ISO 15693) • ISO 7816 smart card contact station, supporting third-party external contact encoders* • Third Party Contactless Encoder Integration Kit* |
