Model: AA-Q256R

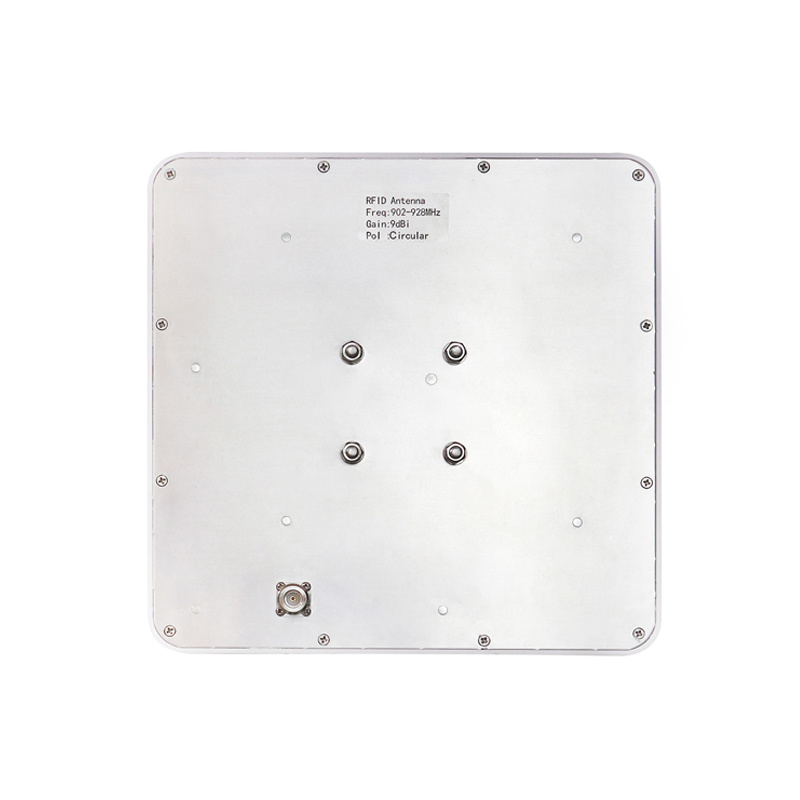

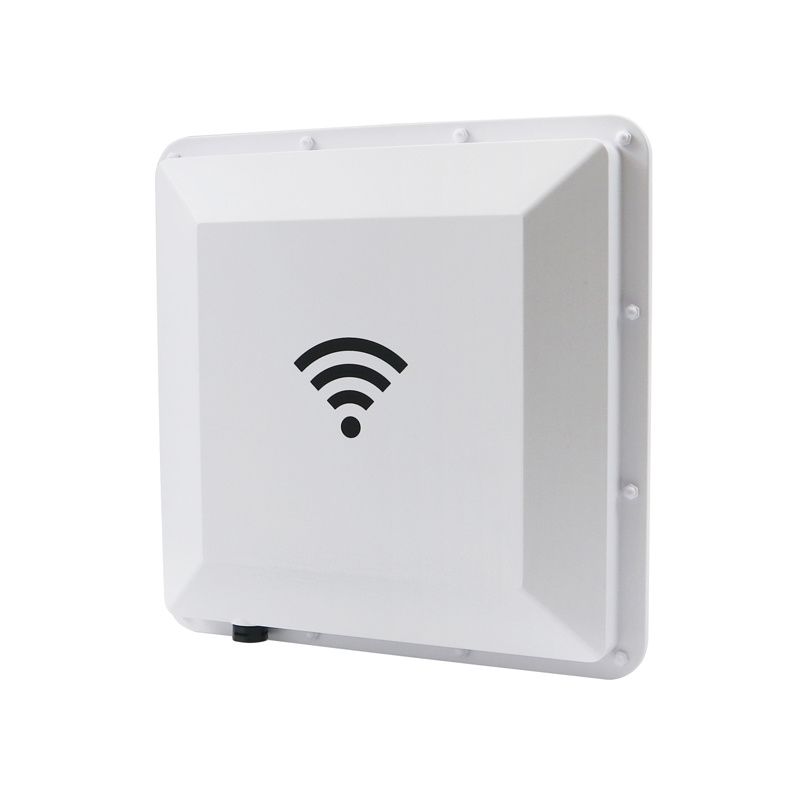

UHF antenna 9dBi specification-(waterproof) AA-Q256R
$28.30
暂无数据
Connector:
Cable length:
Frequency:
Shipping cost within 10kg is $100, and for every additional 1kg, the shipping cost increases by $5
Description
Application scenario: desktop settlement desk and other near-range batch recognition scenarios. The angle is small, the edge signal is well controlled, and the signal above is strong.
Desktop clearing station antenna - built-in array narrow angle antenna - size 338 * 248 * 28mm - internal reserved module space.
Detail
|
Product number |
AA-Q256R |
|
Performance |
|
|
Frequency Range(MHz) |
902-928 MHz |
|
Gain( dBi ) |
9 dBi |
|
Beam Width(°) |
Hor: 65 ± 2 °/ Ver: 65 ± 2 ° |
|
VSWR |
≤1. 3 |
|
Impedance(Ω) |
50 |
|
Polarization Polarization |
circular polarization |
|
axial ratio (dB) |
≤3dB |
|
Maximum power MAX.Power (W) |
50 |
|
Lightning protection |
DC ground |
|
physical parameters |
|
|
Connector |
N- F female |
|
Connector position |
behind |
|
Dimension(mm) |
256*256*40 |
|
Antenna weight(kg) |
/ |
|
Radiation material Reflector material |
aluminum |
|
Radome material |
ABS/Chimei 757 |
|
Radome color |
White |
|
International Protection |
IP6 7 |
|
Operating temperature(℃) |
-40～55° |
|
Mounting hardware(mm) |
φ30-50mm |
