Model: AA-9108

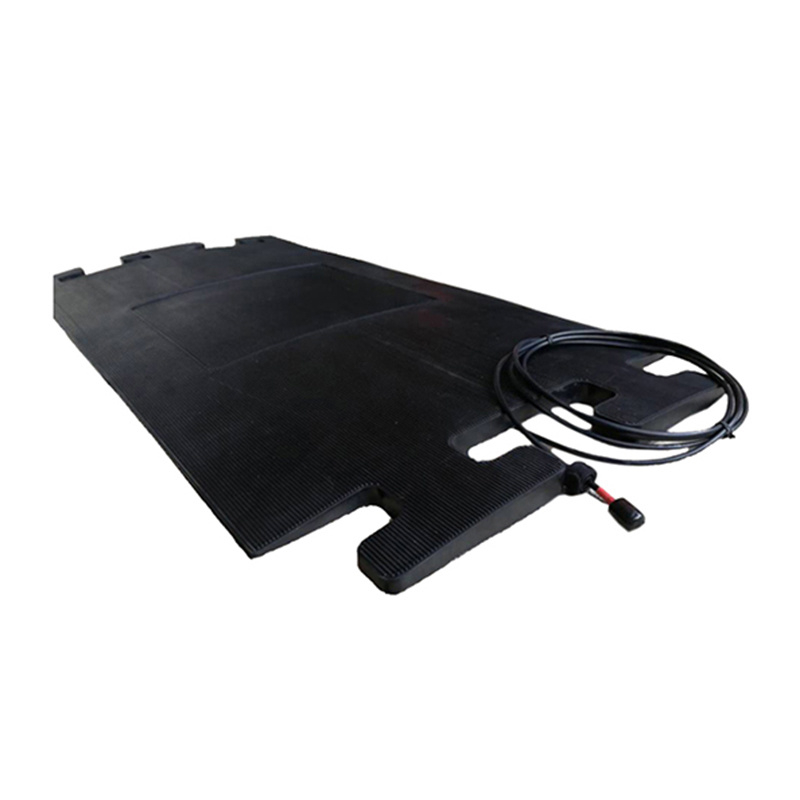

AA-9108 UHF RFID Mat antenna
$204.20
暂无数据
Connector:
Cable length:
Frequency:
Shipping cost within 10kg is $100, and for every additional 1kg, the shipping cost increases by $5
Description
Ultra-thin in design, convenience in installation;Anti-interference, waterproof and dustproof, workable in extreme operating conditions;
Applications: sports race timing, event attendance, asset management and VIP customer management in retail etc.
·Inventory ·Power patrol ·Personnel ·Livestock ·Accessories ·Clothing retail
·Inventory ·Power patrol ·Personnel ·Livestock ·Accessories ·Clothing retail
Detail
|
Model# |
AA-9108 |
|
Electrical Performance |
|
|
Input impedance |
50Ω |
|
VSWR |
≤1.5 |
|
Connector |
Customized （N male，N female，SMA male，RPSMA male，TNC male，RPTNC male） |
|
Front-to-back ratio-dB |
/ |
|
Polarization |
Vertical |
|
V-side lobe width |
65° |
|
H-side lobe width |
75° |
|
Lighting protection |
DC ground |
|
Options for cable |
2M, 3.1M, 4.2M, 5.3M, 6.4M, 7M, 7.5M, 8.6M, 9.7M |
|
Mechanical Performance |
|
|
Weight |
14kg |
|
Shell material |
rubber |
|
Max input power |
20W |
|
Operating temperature |
-40ºC to+60ºC |
|
Storage temperature |
-40°C to+ 80°C |
|
Installation method |
Ground tiling |
|
Dimension |
1100(L)*520(W)*30(H)mm |
|
Precautions for use |
Hard screwing will make the nut inside the large rubber slip and make installation more difficult. |
