Model: AM-65H
HF RFID High frequency module AM-65H
$7.80
暂无数据
Shipping cost within 10kg is $100, and for every additional 1kg, the shipping cost increases by $5
Description

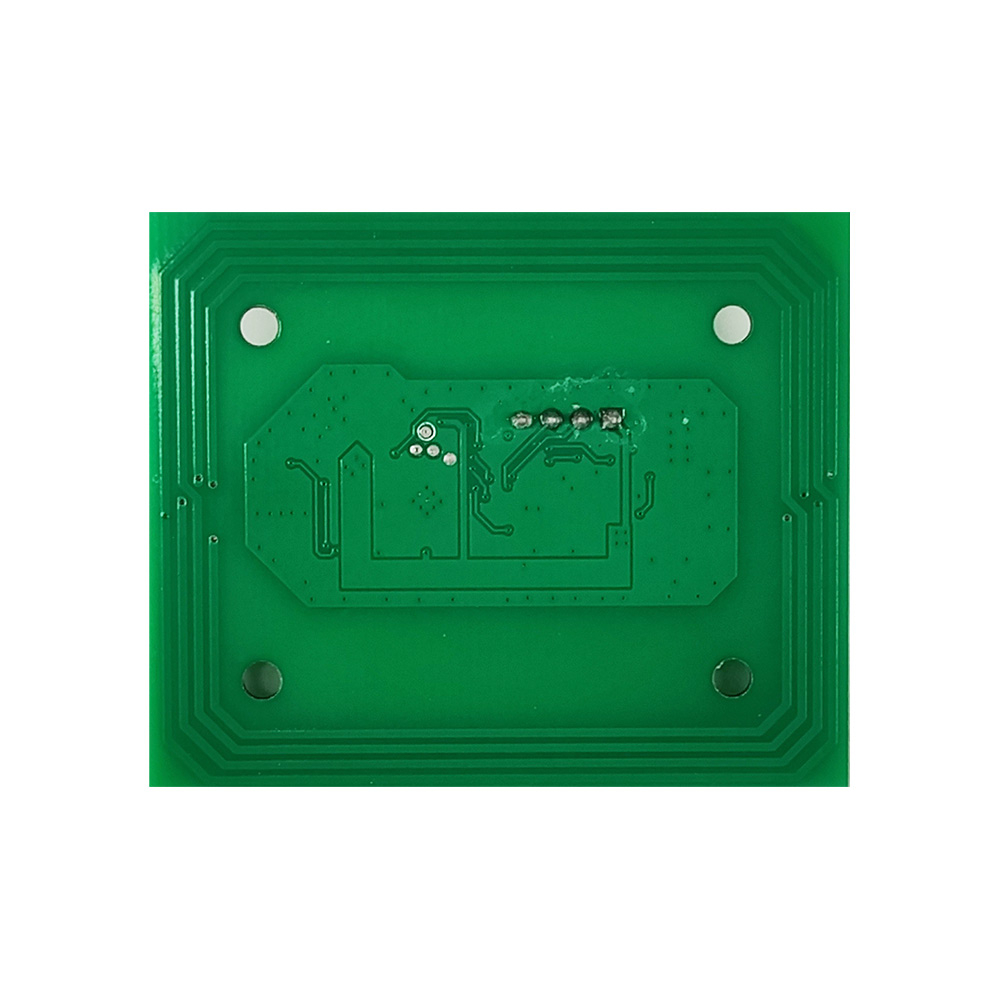

1. Adopt FNC chip and integrated PCB antenna integrated module;
2. Full support for electronic tags that comply with the ISO 15693 standard;
3. Working frequency 13.56MHZ;
4. Support serial communication;
5. ISO15693: The maximum card reading distance is 55mm,
6. Communication interface: serial port output;
7. Power supply voltage: DC3.3V;
8. Upgrade method: ①Serial port upgrade;
9. LED flashes to indicate the working status;
It is suitable for embedding in production line, food processing automatic production line, automatic sorting system, parts assembly production line and other equipment products.
Detail
|
Product number |
AM-65H |
|
Performance |
|
|
RF chip |
FM17660 |
|
air protocol |
ISO 15693 |
|
working frequency |
13.56MHz |
|
Reading distance |
ISO15693:55mm (depending on label) |
|
antenna |
PCBintegrated antenna |
|
Communication Interface |
Serial output（RX、TX） |
|
communication rate |
115200bps |
|
working status |
LED indicator |
|
Reliable Firmware Upgrades |
Scalable upgrade mechanism |
|
application software interface |
Provide API development kit and C, C# and Java application routines |
|
Mechanical and Electrical Properties |
|
|
size |
50*60 *4mm |
|
power supply |
Operating VoltageDC3.3V |
|
power consumption |
Maximum power consumption0.5W |
|
weight |
about8g |
|
humidity |
5% ~ 95%,non-condensing |
|
Operating temperature |
-40ºC ~ +85ºC |
|
storage temperature |
room temperature |
