Model: AM-S60H

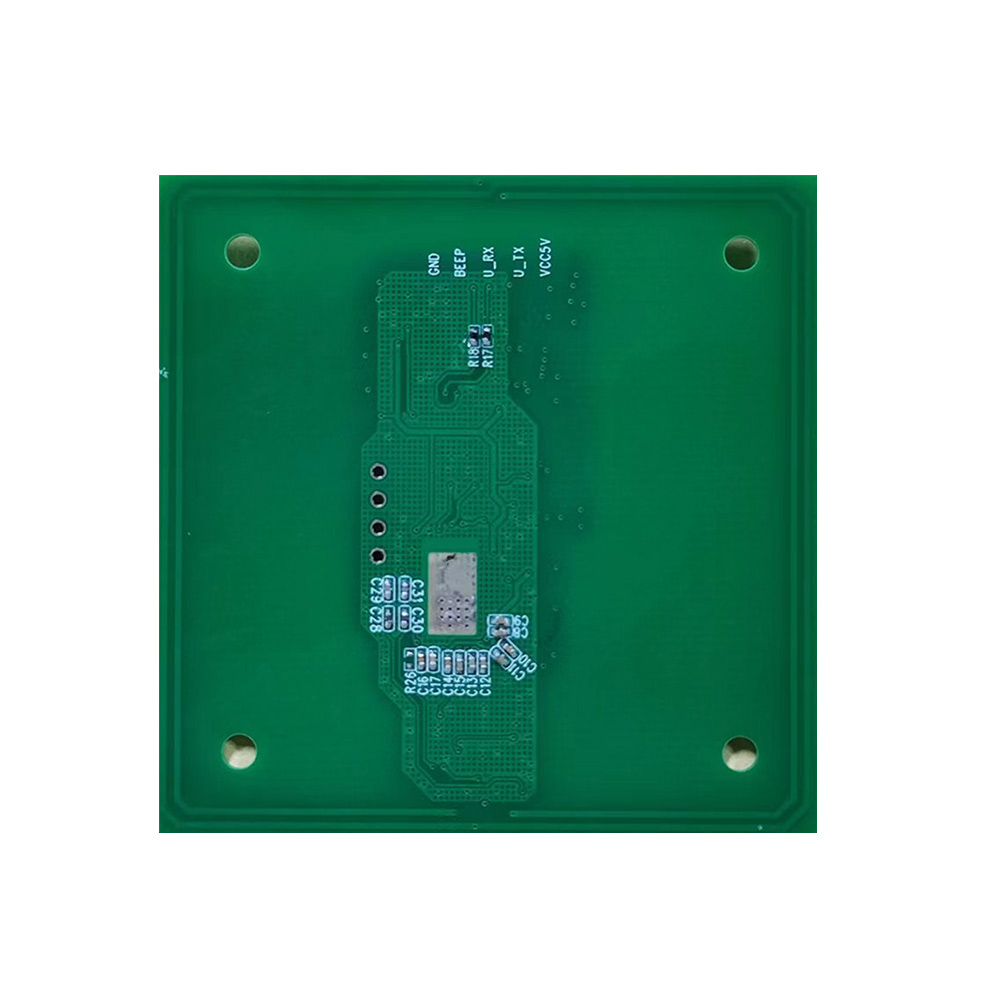

HF RFID Reader module AM-S60H
$15.70
暂无数据
Shipping cost within 10kg is $100, and for every additional 1kg, the shipping cost increases by $5
Description
1. Adopt FNC chip and integrated PCB antenna integrated module;
2. Fully support electronic labels that comply with ISO 15693/ 14443A standards;
3. Working frequency 13.56MHZ;
4. Support serial communication;
ISO15693: The maximum reading distance is 110mm,
The maximum writing distance is 100mm (industrial diameter 30mm label);
ISO14443A: The maximum reading distance is 60mm,
The maximum writing distance is 50mm (white card label);
5. Communication interface: serial output;
6. Power supply voltage: DC5V;
7. The read/disk mode supports continuous (automatic), command, and trigger modes of work;
8. Upgrade method: Serial port upgrade;
9. LED flashes to indicate the working status;
10. Suitable for embedding into production lines, automated food processing lines, automated sorting systems, parts assembly lines and other equipment products.
Detail
|
MODEL |
AM-S60H |
|
Performance |
|
|
NFC RF IC |
ST25R3916B |
|
PROTOCOL |
ISO 15693 / ISO 14443A |
|
working frequency |
13.56MHz |
|
reading distance |
ISO15693:110mm ISO14443A: 60mm |
|
write distance |
ISO15693:100mm ISO14443A: 50mm |
|
antenna |
PCB integrated antenna |
|
Communication Interface |
Serial output (RX, TX) |
|
communication rate |
Serial communication rate 9600 ~ 115200bps |
|
working status |
LED indicator |
|
Reliable firmware upgrades |
Extensible upgrade mechanism |
|
Application software interface |
Provide API development kit and C, C# and Java application routines |
|
Mechanical and electrical properties |
|
|
size |
60(L)*60(W)*4(H)mm |
|
power supply |
Working voltage DC5V |
|
Power consumption |
Maximum power consumption 2W |
|
weight |
about 10g |
|
humidity |
5% ~ 95%, non-condensing |
|
Operating temperature |
-40ºC ~ +85ºC |
|
storage temperature |
normal temperature |
