Model:

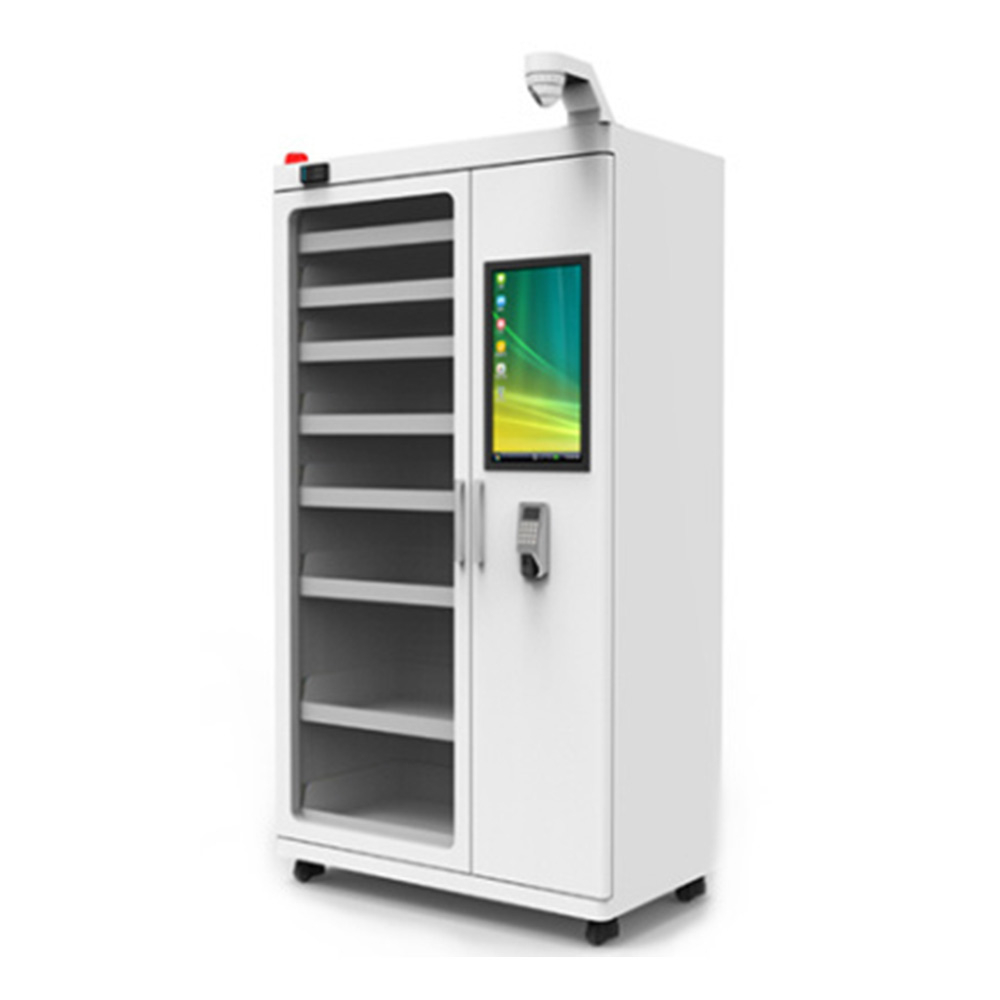

RFID Smart Tool Cabinet ASET-TC02
$3107.00
暂无数据
Shipping cost within 10kg is $100, and for every additional 1kg, the shipping cost increases by $5
Description
The ASET-TC02 RFID smart tool cabinet is a tool cabinet that complies with the ISO 18000-6C national standard protocol. Based on RFID automatic identification technology, it can realize real-time inventory, intelligent access, inspection reminders, real-time search, language broadcast and Abnormal prompts and other functions.
The product can be placed in an indoor environment or a safe open semi-outdoor environment, using RFID intelligent identification technology, unattended, can run for 24 hours, man-machine communication is easy to operate, strong sense of interaction, and stable performance.
The product can be placed in an indoor environment or a safe open semi-outdoor environment, using RFID intelligent identification technology, unattended, can run for 24 hours, man-machine communication is easy to operate, strong sense of interaction, and stable performance.
Detail
|
Main specifications |
|
|
Model |
ASET-TC02 |
|
Performance parameter |
|
|
Operating system |
Windows (Android is optional) |
|
Industrial control configuration |
I5, 4G+128 (RK3399, 4G+16G) |
|
Identification method |
Radio Frequency Identification (UHF RFID) |
|
Read time |
5 seconds |
|
Physical parameter |
|
|
Whole machine size (height*width*depth) |
2000mm*1100mm*600mm |
|
Material |
1.2mm thick carbon steel plate |
|
screen |
14 inch / 21.5 inch capacitive touch screen, resolution 1280:800 screen ratio 16:9 |
|
capacity |
4 layers (layer height 280mm)/six layers (layer height 225mm) can be adjusted freely |
|
Communication Interface |
Network port |
|
Fixed/mobile way |
Bottom foot cup/caster |
|
UHF RFID |
|
|
Frequency Range |
840MHz-960MHz |
|
RF protocol standard |
ISO 18000-6C（EPC C1 G2） |
|
RFID main chip |
VM-68 RF module or VF-787 fixed reader (Impinj R2000 RF chip) |
|
Identification authority |
|
|
High frequency swipe |
Standard |
|
fingerprint |
Optional |
|
Surveillance cameras |
Optional |
|
Face recognition |
Optional |
|
Wifi |
Optional |
|
POWER |
|
|
Power input |
AC220V,50Hz |
|
Rated power |
≤150W |
|
Development support |
|
|
Development support |
SDK development kit |
|
Development language |
JAVA, C# |
|
Operating environment |
|
|
Operating temperature |
0~60℃ |
