Model: AT-R6025

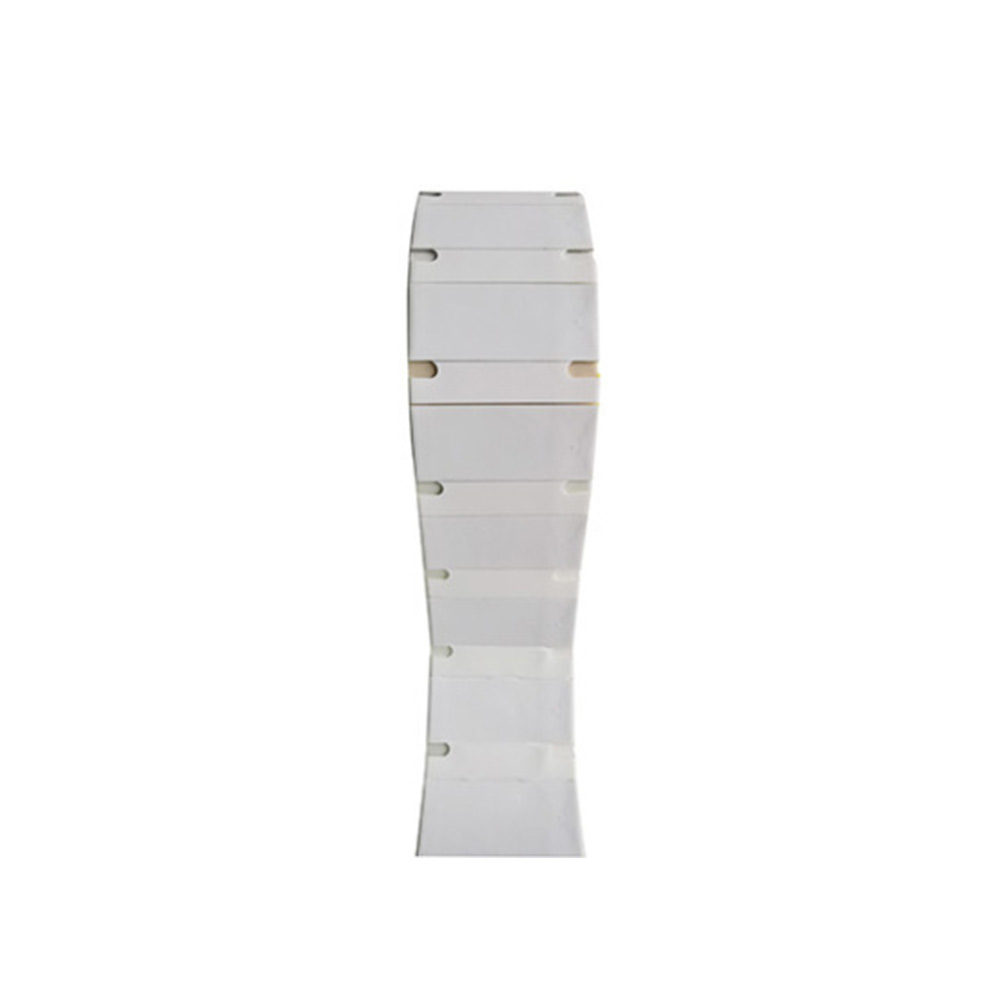

UHF RFID flexible printable anti metal Label AT-R6025
$0.45
暂无数据
Shipping cost within 10kg is $100, and for every additional 1kg, the shipping cost increases by $5
Description
(1) This label can be divided into two frequency bands (European frequency and American frequency), using high-performance Impinj chip to achieve the best reading effect;
(2) The linear polarization design has an ultra-high reading rate in a specific direction and high tag recognition sensitivity;
(3) Application: Mainly used in the field of asset management.
Detail
|
Performance |
|
|
air protocol |
EPC Class1 Gen2; ISO18000-6C |
|
working frequency |
902-928MHz (European standard can be processed, and the frequency can also be customized according to the application) |
|
chip type |
Impinj M730 |
|
chip storage |
EPC 128bits, User 0 |
|
read and write performance |
Readable and writable (customers can repeatedly write content into the chip) |
|
data storage |
20 years |
|
physical parameters |
|
|
Main material |
PET/ Avery Brightening Mask |
|
surface color |
White |
|
Product Size |
60mm L x 25mm W x 1.25mm H ( 2.362in x 0.984in x0.049 |
|
product weight |
0.834 kg/ roll |
|
Package |
500 pcs per roll / small box, and 2000 pcs / big carton, 4 small boxes per big carton |
|
drop test |
200 times drop test from 1 meter height |
|
alcohol test |
95% concentration alcohol test passed (alcohol wipe after printing with full resin ribbon |
|
High and low temperature alternating test |
-40 ℃ ~+85 ℃, 7 cycle time tests, a total of 48 hours, passed |
|
Double 85 test |
+85 ℃ temperature and 85% humidity for 148 hours, the test passed |
|
RoHS and SVHC |
pass |
|
IP rating |
IP68 |
|
Reading distance |
Metal : up to 6 meters On plastic : up to 7 meters On glass : up to 6 meters On the carton : up to 2.6 meters ( Adopted with Impinj R2000 RF module + 33dBm power + 4dBi antenna Gain is read by the handheld, if other equipment is used, the reading distance may be different) |
|
Polarization mode |
linear polarization |
|
RF Performance Consistency Test |
100% tested and passed (tested by European Finnish Voyantic Tagsurance tester) |
|
optional |
Pre-writing, surface LOGO or text processing, barcode or two-dimensional code processing |
|
operating environment |
|
|
Operating temperature |
-40 degrees ~ +85 degrees |
|
save humidity |
5% ~ 95% |
|
installation method |
3M adhesive (standard) |
|
installation surface |
to curved surfaces with a diameter of 50mm |
|
Storage conditions |
at +20 ℃ / 50% relative humidity for 1 year |
