Model: AF-P16/AF-P32
UHF RFID Multi-port Reader AF-P16/AF-P32
$312.00
暂无数据
Chip:
Interface:
Protocol:
Frequency:
Shipping cost within 10kg is $100, and for every additional 1kg, the shipping cost increases by $5
Description
1. Fully support electronic tags that comply with EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C standards;
2. Working frequency 860-868MHZ, 902-928MHZ (adjustable according to the requirements of different countries or regions);
3. Support multiple modes such as RS232, TCP/IP and wireless network communication;
4. Support 32 external SMA antenna interfaces;
5. Output power up to 33dbm adjustable, inventory tag peak speed, > 700 pieces/second;
6. Support active mode, command mode, trigger mode and other working modes;
7. LED status indication, support online firmware upgrade through the communication interface;
8. The reader provides 2 optically isolated input and 2 optically isolated output I/O interfaces to facilitate product application integration.
Detail
|
Model No. |
AF-P16、AF-P32 |
|
Performance index |
|
|
Frequency |
860Mhz – 960Mhz can be customized |
|
Work area support |
US, Canada and other regions following U.S. FCC Europe and other regions following ETSI EN 302 208 with & without LBT regulations Mainland China Japan Korea Malaysia Taiwan |
|
Frequency modulation |
FHSS or fixed-frequency, can be set by software |
|
RF output |
10-30 dBm customized；50 ohm load. |
|
Read tag peak speed |
>900 piece/second
|
|
Tag Cache area |
800 tags @ 96 bit EPC |
|
tag RSSI |
support |
|
Antenna connection protection |
support |
|
Environmental temperature monitoring |
support |
|
The number of antennas（AF-P16） |
16 SMA antenna interface can choose |
|
The number of antennas（AF-P32） |
32 SMA antenna interface can choose |
|
communication interface |
10M/100MAdaptive Ethernet、RS232、RS485 |
|
Communication rate |
Serial rate 9600～115200bps，RJ45 is 10Mbps |
|
Reliable firmware upgrade |
Scalable upgrade mechanism |
|
input / output (GPIO) |
2 Optical isolation inputs, 1 Optical isolation output |
|
Application software interface |
Provide API development kit and application routines |
|
API interface |
Provide API functions suitable for specific applications, using standard API interface, support C language, JAVS and other development environment |
|
Tag operation performance |
|
|
reading range |
9dbi antenna configuration, through the RF power adjustment, the typical reading distance of 3-15 meters range reference (depend on tag performance related) |
|
Protocol |
EPC global UHF Class 1 Gen 2 / ISO 18000-6C/ ISO18000-6B |
|
Maximum receiving sensitivity |
-82dBm; Maximum return loss: 10dBm |
|
Mechanical and electrical performance |
|
|

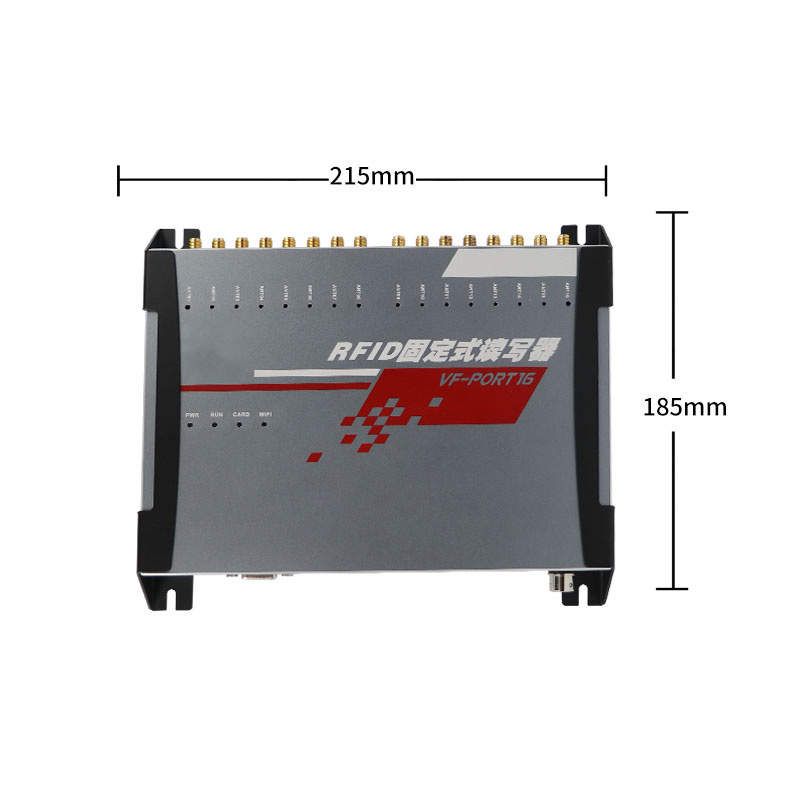

AF-P16 Dimension |
215(L)*185 (W)*34(H)mm |
|

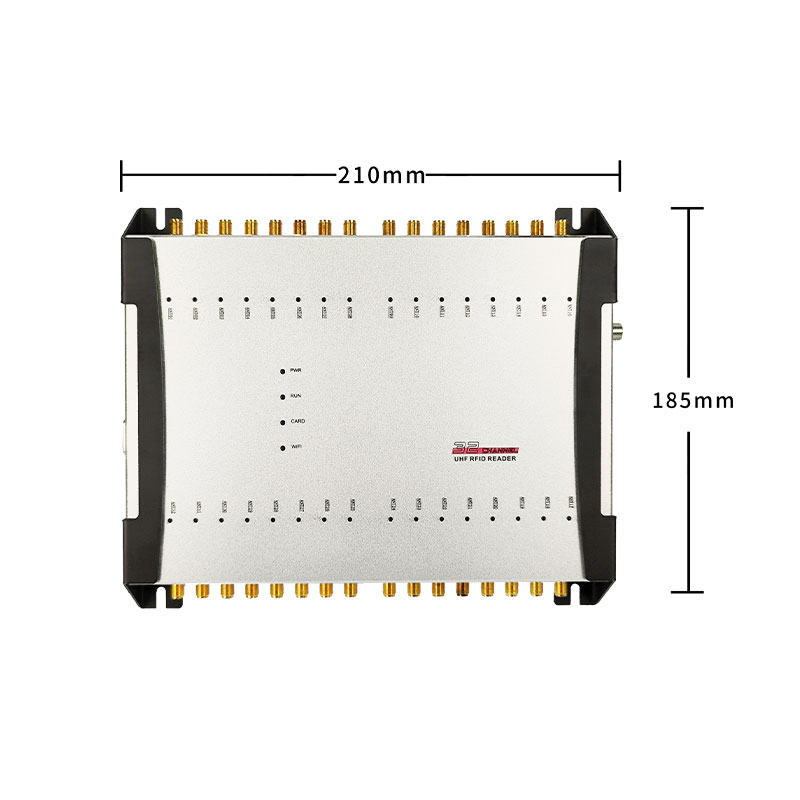

AF-P32 Dimension |
210(L)*185 (W)*26.5(H)mm |
|
Power Supply |
With 220V AC input, the output of +12 V/3A DC power converter |
|
Power Consumption |
Less than or equal to 15W |
|
RF output interface |
SMA connector |
|
Gross weight |
1.5KG |
|
Humidity |
5% to 95%, non-condensing |
|
IP rating |
IEC IP51 |
|
Operating Temp |
-20 ºC to +70ºC |
|
Storage Temp. |
-20°C to 85°C |
|
Certifications |
FCC/CE |
