Model: AF-S108

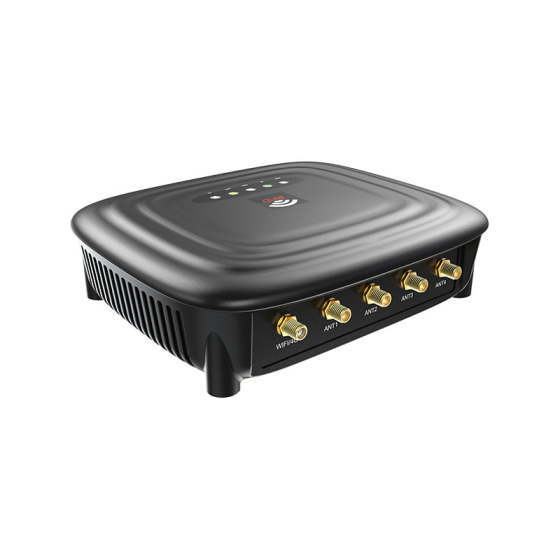

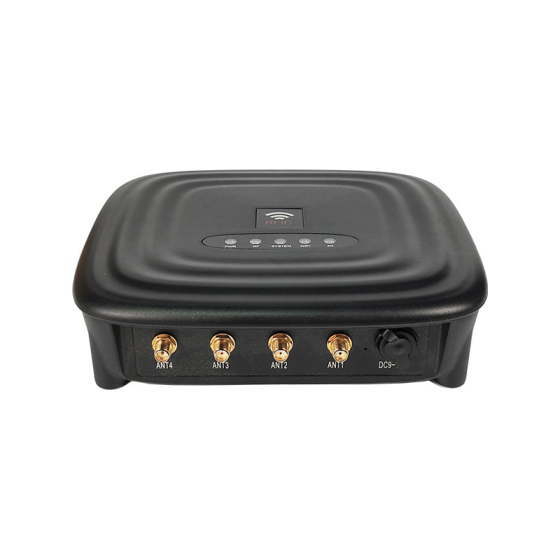

4-Port Android UHF RFID Fixed Reader AF-S108
$343.00
暂无数据
Chip:
Interface:
Protocol:
Frequency:
Shipping cost within 10kg is $100, and for every additional 1kg, the shipping cost increases by $5
Description
Ultra-strong communication interface design to get professional technology simpler, avoid extra expense increase, integrated with Bluetooth, WiFi, 4G, and 4 I/O interface, USB, HDMI HD video, audio interface.
AF-S08 Android UHF RFID fixed reader with excellent design, powerful functions and high cost-effective, satisfy customer’s demand about price, performance and multi-application scenarios.
AF-S08 Android UHF RFID fixed reader with excellent design, powerful functions and high cost-effective, satisfy customer’s demand about price, performance and multi-application scenarios.
Detail
|
Purchase code (product model) |
AF-S108 |
|
Physical parameters |
|
|
Product size |
165 (length) * 143 (width) * 45 (height) mm |
|
Weight |
1.1KG |
|
Shell material |
Die-cast aluminum alloy |
|
Protection level |
IEC IP54 |
|
Electrical parameters |
|
|
Operating system |
Android 7.1.2 |
|
CPU Processor |
Qualcomm MSM8909 chip platform, 1.8GHz quad-core A7 processor, main frequency up to 1.8GHz |
|
GPU Graphics Processing Unit |
Adopt Mali-T764 GPU, support 4K, H.265 hardware decoding |
|
RAM+ROM memory |
1GB LPDDR3+ 8GB eMMC (optional 2GB/4GB/16GB/32GB) |
|
Internal storage SD |
Support SD card*1, up to 128GB |
|
USB interface |
2 USB 2.0 ports (HF terminals), 1 OTG debugging port (TYPE-C) |
|
HDMI |
Support video 1*HDMI interface (1080P) |
|
Type-c |
OTG, external debug interface |
|
Input voltage |
DC12/3A |
|
power |
25W |
|
Ambient temperature detection |
support |
|
I/O Interface |
4 optocoupler inputs (initial low level), 4 relay outputs (loadable DC24V/2A) |
|
Communication |
|
|
WIFI |
Support IEEE802.11n/b/g 2.4G |
|
Bluetooth communication |
Support Bluetooth 4.0 |
|
position |
Support GPS+GLONASS |
|
4G network |
4G: China Mobile (TD-LTE); 4G: China Unicom (FDD-LTE); 4G: China Telecom (FDD-LTE); 4G: China Unicom (TD-LTE) |
|
3G/2G network |
3G: China Mobile (TD-SCDMA); 3G: China Unicom (WCDMA); 3G: China Telecom (CDMA2000); 2G: China Mobile, China Unicom (GSM) + China Telecom (CDMA) (optional) |
|
Serial port (RS232) |
1 serial port communication |
|
Network connection |
1-way; 10M/100BASE-T Ethernet |
|
SIM card interface |
1 |
|
RF Interface |
4-way SMA antenna interface |
|
Reliable firmware upgrade |
Scalable upgrade mechanism |
|
Application Software Interface |
Provide API development kit and C and Java application examples |
|
UHF RFID Parameters |
|
|
RF Core Chip |
Imported/domestic |
|
Air interface protocol |
EPC Global UHF class1 Gen2/ISO 18000-6c/ISO 18000-6B |
|
Operating frequency |
902-928MHz or 865-868MHz |
|
Output Power |
0～33dBm±1dBm |
|
Output power regulation |
1dBm step (set via VANCH software) |
|
Receiving sensitivity |
＜﹣85dBm |
|
Tag recognition peak speed |
＞800 times/second |
|
Reading distance |
0-25 meters (related to reader parameter configuration, antenna gain, and tag type) |
|
Writing distance |
0-10 meters (related to reader parameter configuration, antenna gain, and tag type) |
|
Tag RSSI |
support |
|
Antenna connection protection |
support |
|
Supported Regions |
The United States, Canada, and other regions that comply with the US FCC Part 15 regulations Europe and other regions compliant with ETSI EN 302 308 China, India, Japan, South Korea, Malaysia, Taiwan |
|
Environmental parameters |
|
|
Operating temperature |
﹣20°～﹢65° |
|
Storage temperature |
﹣40°～﹢85° |
|
Ambient humidity |
＜95% (non-condensing state) |
|
Working status indication |
|
|
Power indicator (PWR) |
1 red light, which is always on when the power is on normally; |
|
Card reader indicator (RF) |
1 green light, flashing when RFID card is being read; off when not reading a card |
|
System indicator (SYSTEM) |
1 yellow light, flashing when the system is normal and the APP is running; off/steady on when the APP is dead or the system is not started |
|
WIFI indicator light (WIFI) |
1 blue light, WIFI network (not WIFI hotspot network), flashes when the network is connected, otherwise it is off/always on |
|
3G/4G indicator light (4G) |
1 blue light, 3G/4G module working indicator flashes, otherwise it is off/always on |
|
Buzzer |
Working status sound indicator |
