Model: AC-WM1690
AC-WM1690 Wall-Mounted Access Control System
$581.00
暂无数据
Shipping cost within 10kg is $100, and for every additional 1kg, the shipping cost increases by $5
Description
Product Introduction：

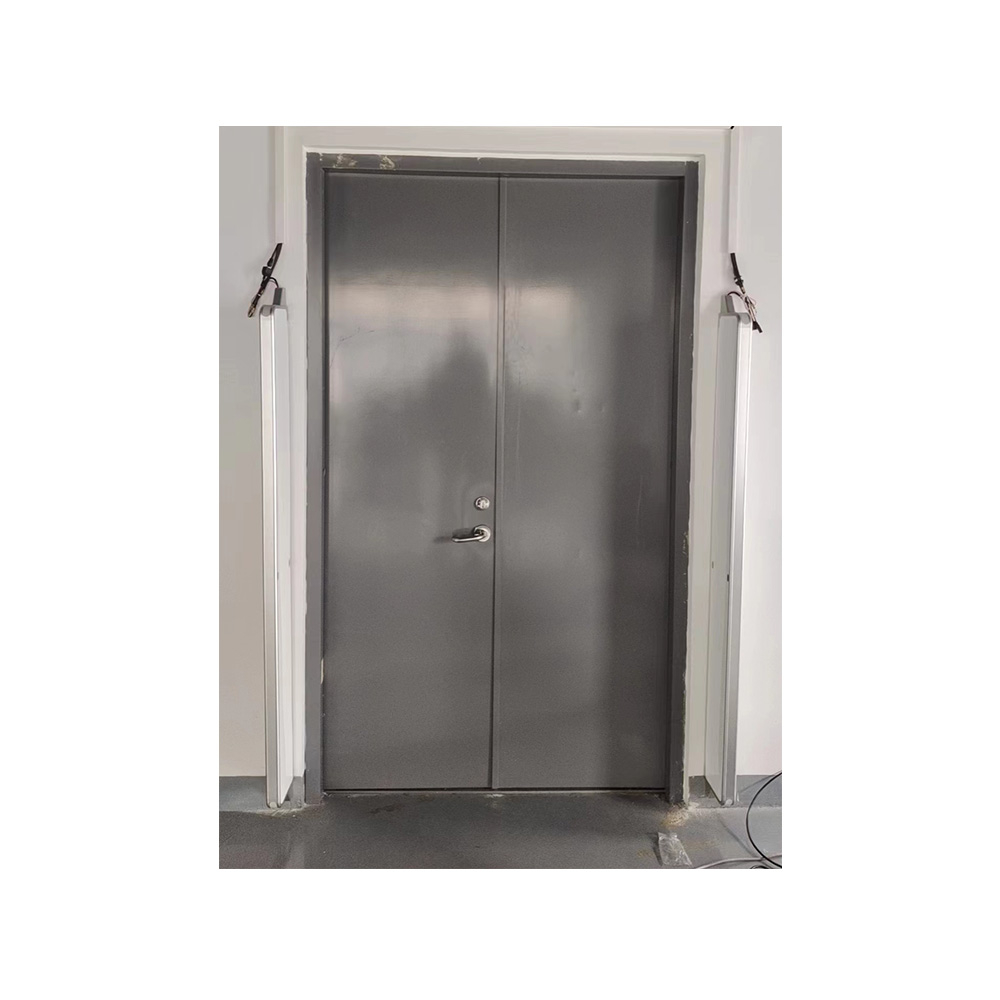

The AC-WM1690 wall-mounted access control system features simple side-wall installation, saving space. It integrates an audible and visual alarm system to detect unauthorized RFID tags. For warehouse and store goods entry and exit, it enables intelligent identification, providing convenience and speed. This access control system is widely used in warehouse material management, anti-theft management in new retail apparel stores, and library/archive borrowing management, enabling batch identification and anti-theft alarms for incoming and outgoing assets.
Features： * Employs Impinj E710 RF chip module, featuring strong tag group reading capability, long identification distance, and a speed of 900 tags/second; * Simple installation, space-saving, and cost-effective; * Multiple communication methods available, including wired and wireless (RJ45, WiFi, etc.) and PoE power supply; * Uses a dual-angle, dual-antenna circular polarized RFID antenna; * Can integrate LiDAR and millimeter-wave radar for enhanced intelligent identification capabilities; * Built-in audible and visual alarm function for real-time monitoring and alarm of unauthorized operations; * Adjustable output power, supporting automatic, command, and trigger (external sensor) operating modes; * Data reporting modes support buffering, timed, and instant modes; * 5dBi antenna - high gain - small size antenna.
Features： * Employs Impinj E710 RF chip module, featuring strong tag group reading capability, long identification distance, and a speed of 900 tags/second; * Simple installation, space-saving, and cost-effective; * Multiple communication methods available, including wired and wireless (RJ45, WiFi, etc.) and PoE power supply; * Uses a dual-angle, dual-antenna circular polarized RFID antenna; * Can integrate LiDAR and millimeter-wave radar for enhanced intelligent identification capabilities; * Built-in audible and visual alarm function for real-time monitoring and alarm of unauthorized operations; * Adjustable output power, supporting automatic, command, and trigger (external sensor) operating modes; * Data reporting modes support buffering, timed, and instant modes; * 5dBi antenna - high gain - small size antenna.
Detail
|
Product Model |
AC-WM1690 Wall-Mounted Access Control System |
|
|
|
Based on the AM-61F module, it also boasts excellent multi-label recognition performance. |
|
|
Performance Indicators |
||
|
Frequency range |
American standard 902-928MHz / European standard 865-868MHz (Customization and adjustment available depending on country or region) |
|
|
Antenna Polarization |
Dual-angle, dual-antenna - circularly polarized RFID antenna |
|
|
Antenna Gain (dBi) |
5±0.5 |
|
|
Half-Power Beamwidth (°) |
Hor:70±5 Ver: 70±5 |
|
|
Frequency Modulation |
Broadband frequency modulation (FHSS) or fixed frequency, software configurable. |
|
|
RF Output |
33dBm ± 1dBm (MAX); 50 ohm load |
|
|
Output Power Adjustment |
1 dB step |
|
|
Communication Interface |
RS232, RS485, Wiegand26/34, TCP/IP, or wireless communication (optional) |
|
|
Communication Rate |
Serial port speed 9600～115200bps, RJ45 is 10M/100Mbps auto-sensing |
|
|
GP I/O Interface |
I/O Interface (PR9 connector) |
|
|
Alarm methods |
Audible and Visual Alarm |
|
|
Infrared trigger height (optional) |
≤3 meters |
|
|
360° 2D LiDAR (optional) |
Distance range |
0.05~12m (80% reflectivity), scanning angle 0-360°, Class I eye safety standard |
|
Distance measurement accuracy |
20mm; |
|
|
Millimeter-wave radar (optional) |
Performance indicators |
Frequency: 77–78 GHz; Detection range: 40 meters; Elevation beamwidth (-6 dB): -5° to +5°; Horizontal beamwidth (-6 dB): -60° to +60° |
|
Recognition resolution |
Distance resolution 0.2m, speed resolution 1.9km/h, distance accuracy ±0.1m |
|
|
Features |
Supports intensive read/write operations, antenna standing wave detection, online firmware upgrades, tag data filtering, and RSSI (Signal Strength Indicator). |
|
|
Power consumption |
Average power consumption <10W |
|
|
Application software interface |
Provides API development kits and example programs for VC, VB, and Java applications. |
|
|
Labeling performance |
||
|
Read distance |
With a 10dBi antenna configuration, the typical read distance is 6-10 meters (depending on tag performance). |
|
|
Air interface protocol |
EPCglobal UHF ISO-18000-6C (EPC G2), ISO-18000-6B, GB/T29768-2013 (optional) |
|
|
Mechanical and electrical performance |
||
|
Dimensions |
1690 (L) * 158 (W) * 40 (H) mm (excluding mounting bracket and external wiring) |
|
|
Power Supply (Aeronautical Connector) |
Equipped with a 220V AC input and +12V/3A DC output power converter |
|
|
Panel Material |
Acrylic |
|
|
Frame Material |
Aluminum alloy |
|
|
Radiator Color |
White or gray |
|
|
Weight |
3Kg |
|
|
Mounting Method |
Ceiling, wall, pole mounting |
|
|
Mast Diameter |
35-50mm |
|
|
Humidity |
5% to 95%, non-condensing |
|
|
Protection Rating |
IEC IP65 |
|
|
Operating Temperature |
-20 ºC to +60 ºC |
|
|
Lightning Protection |
DC grounding |
|
