Model: AA-9595F/AA-9595N

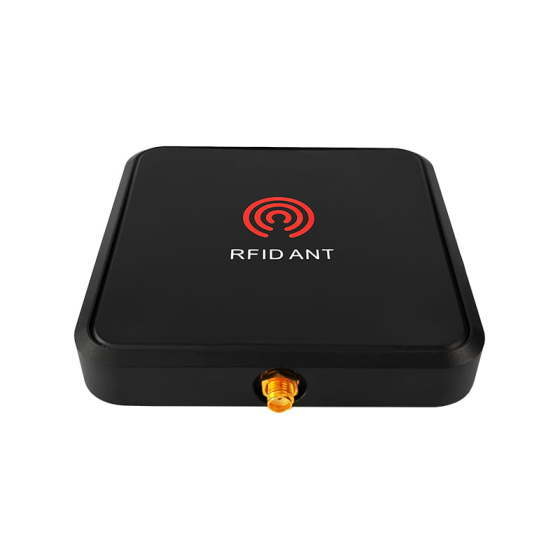

Industrial Reader Farfield/nearfield antenna AA-9595F/AA-9595N
$52.00
暂无数据
Cable length:
Interface:
Frequency:
Cable Connector:
Shipping cost within 10kg is $100, and for every additional 1kg, the shipping cost increases by $5
Description
1. IP protection grade IP65, compatible far-field/near-field design, low standing wave ratio, patented appearance design;
2. The back cover is made of CNC aluminum alloy, which can effectively prevent rear cross-reading. The front cover is made of ABS+PC, which has good directionality and recognition rate;

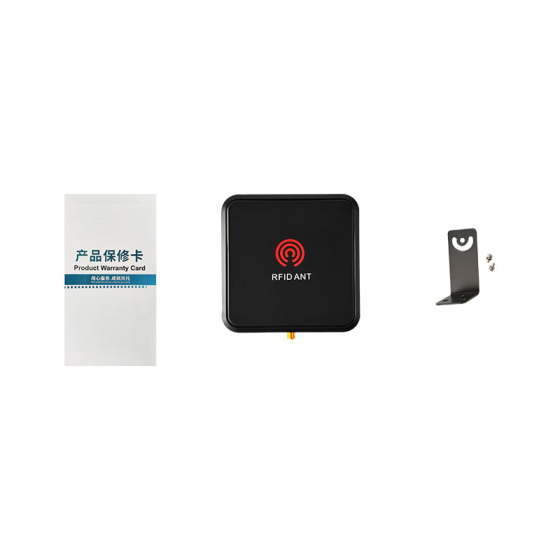

3. Supporting multi-functional mounting bracket, adapt to different on-site installation and use environments.
Detail
|
Model No. |
AA-9595F |
AA-9595N |
|
Performance |
||
|
Frequency Range |
902-928MHz or 865-868Mhz |
902-928MHz or 865-868Mhz |
|
Antenna material |
Dual-polarized ceramic antenna |
High dielectric PCB antenna |
|
Polarization mode |
Circular polarization |
Near field antenna |
|
Gain |
>3dBi |
-15dBi |
|
Axle ratio |
<3dbi |
<3dbi |
|
Voltage Standing Wave Ratio
(VSWR) |
≤1.3:1 |
<-1.5:1 |
|
Characteristic impedance |
50Ω |
50Ω |
|
Reading distance (supporting AF-747P)
(AZ9662 white card test distance) |
13 ～ 33dBm ：Distance 60-10000mm |
13～33dBm：Distance 20-350mm |
|
Interface form |
SMA female |
SMA female |
|

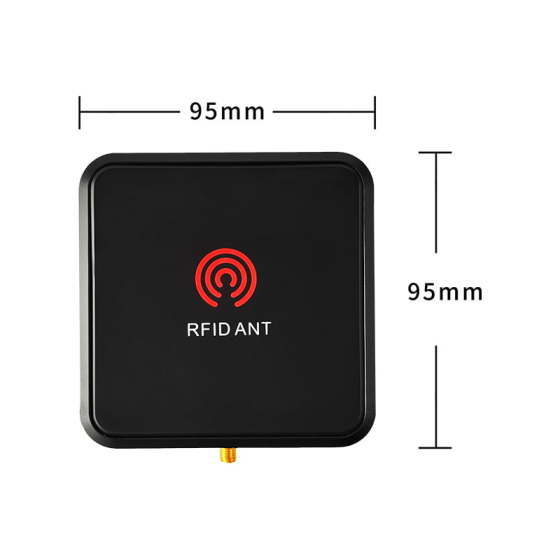

Antenna size |
Length*width*thickness
95*95*17(mm) |
Length*width*thickness
95*95*17(mm) |
