Model: AD-Q68/AD-Q68U/AD-Q68Pro

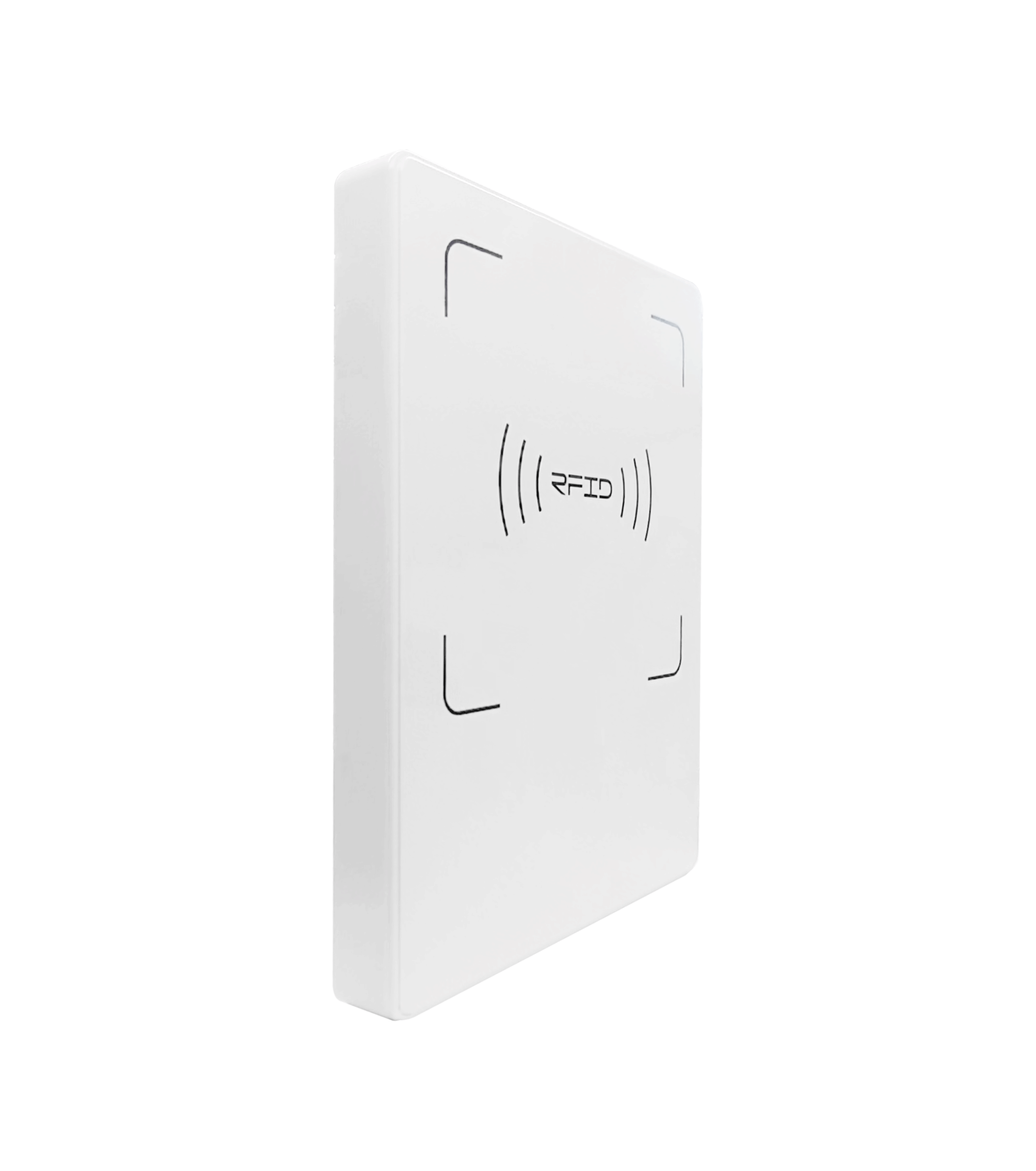

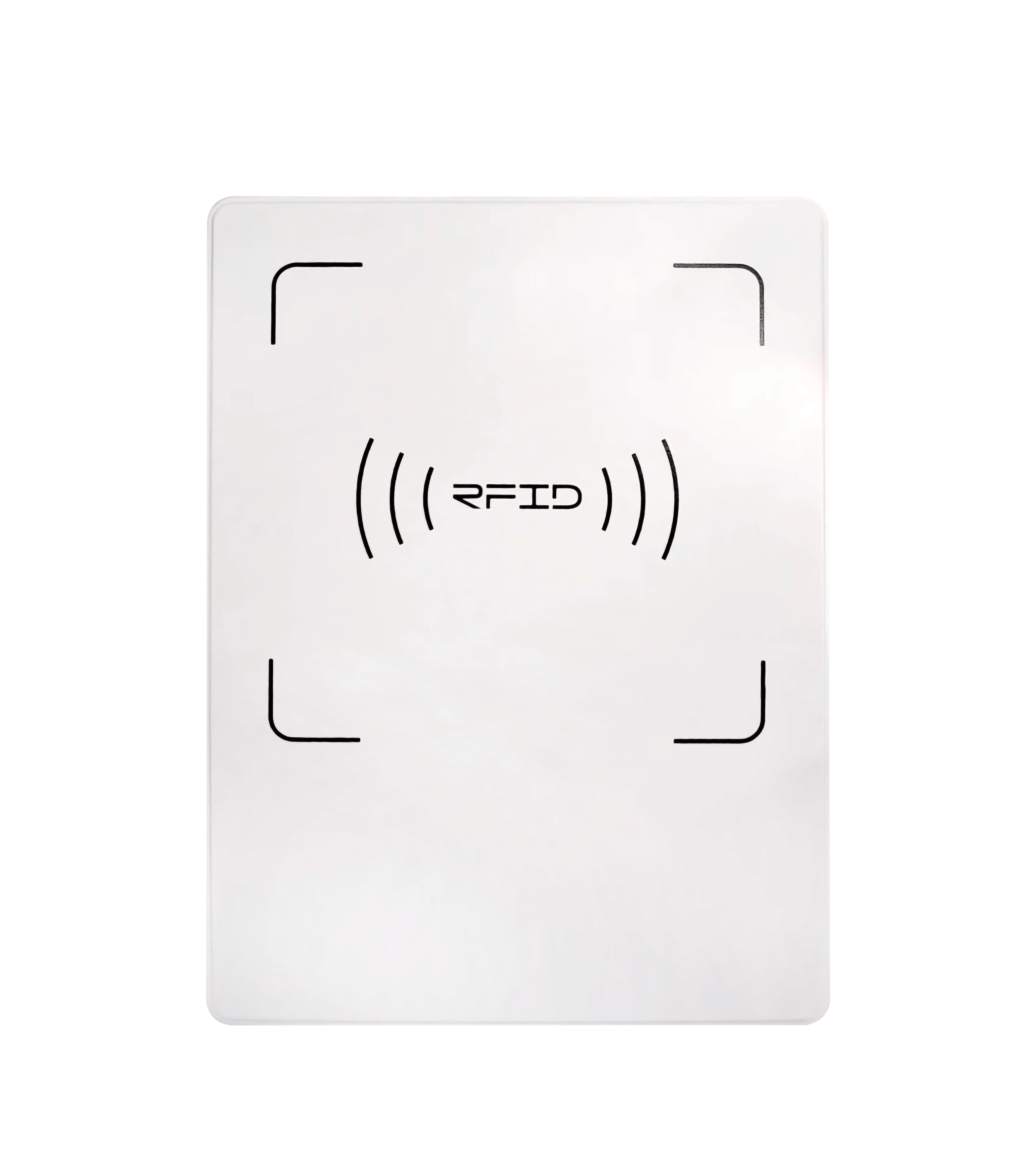

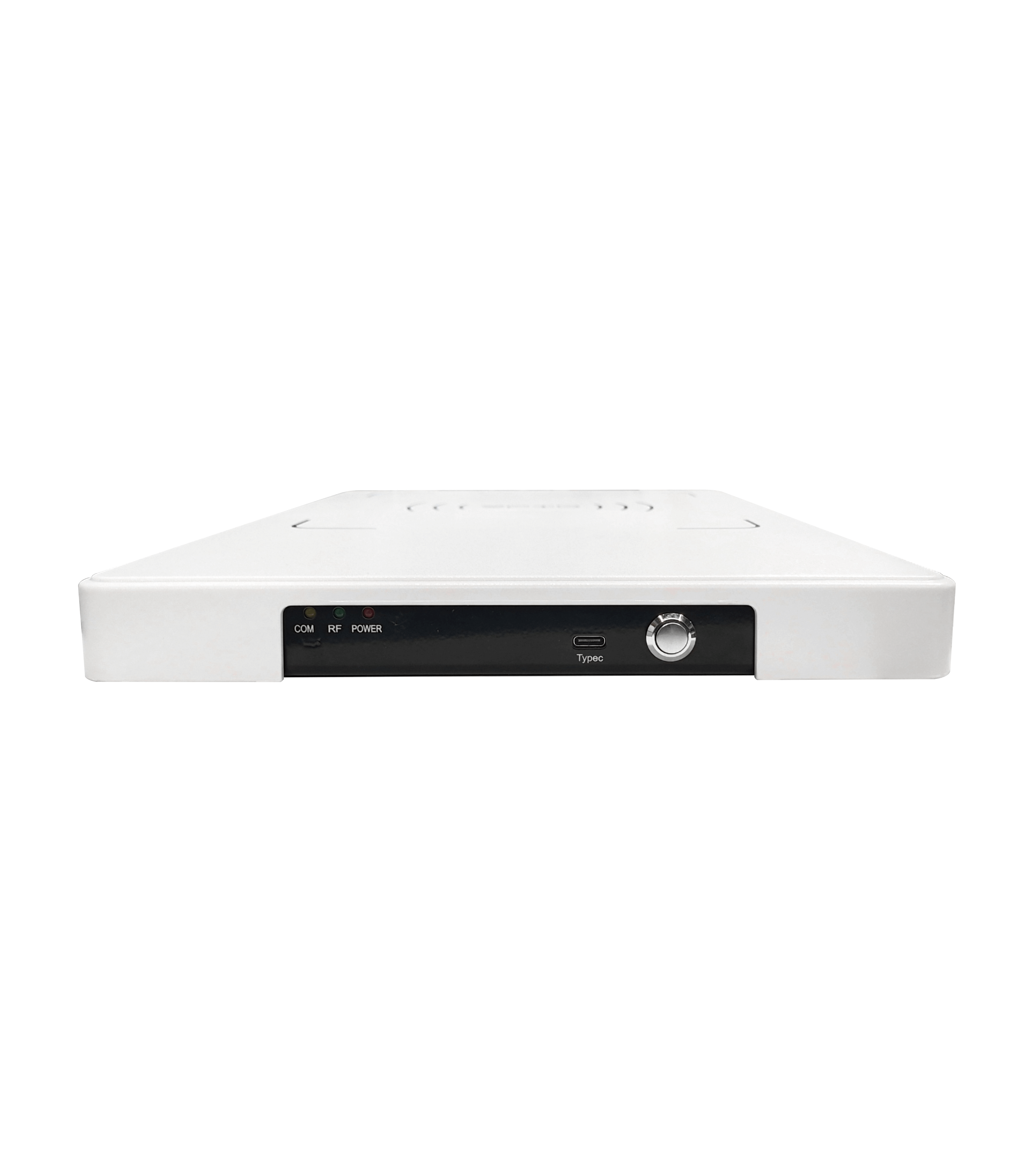

UHF Desktop Payment Terminal AD-Q68/AD-Q68U/AD-Q68Pro
$154.00
暂无数据
Chip:
Shipping cost within 10kg is $100, and for every additional 1kg, the shipping cost increases by $5
Description
The AD-Q68 series comprises three desktop settlement terminals with varying functionalities. They feature a built-in precision array narrow-beam antenna, ensuring accurate identification range and eliminating common problems such as tag crosstalk and blind spots. The product offers a rich array of communication interfaces, including RJ45, RS232, RS485, and WiFi/Bluetooth wireless communication. It also features a built-in high-capacity, high-performance lithium-ion battery, allowing for flexible mobility to meet the needs of new retail settlement, warehouse asset inventory, and other application scenarios.
Features an aluminum alloy base frame + ABS casing, making it robust, durable, and aesthetically pleasing;
Supports electronic tags compliant with EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C standards;
Operating frequency: 865~868MHz, 902~928MHz (adjustable according to different countries or regions);
Adjustable output power, with a controllable reading distance of 0mm~800mm;
Supports active mode, command mode, and other operating modes;
Features card reading buzzer and LED status indicators; supports upgrades via the communication interface;
Supports RS232 serial port, RJ45 or USB communication; and wireless communication functions;
Widely used in systems such as new retail for footwear and apparel, jewelry inventory, and warehouse asset management.
Detail
|
Procurement code (product model) |
AD-Q68/AD-Q68U/AD-Q68Pro |
|
Performance Parameters |
|
|
RF Module |
Vanch RF Module (selectable based on order) |
|
AD-Q68 Motherboard |
AF-946Pro motherboard |
|
AD-Q68U Motherboard |
AD-61 motherboard |
|
AD-Q68Pro Motherboard |
AD-Q68Upro motherboard |
|
Air Interface Protocol |
EPC Global UHF Class1 Gen2/ISO 18000-6C/(ISO 18000-6B optional) |
|
Frequency Range |
902~928MHz or 865~868MHz |
|
AD-Q68/AD-Q68Pro |
0~33dBm±1dBm |
|
AM-61E/E710 RF Output Power |
15~26dBm±1dBm |
|
AD-Q68U |
0~800mm (related to reader parameters, antenna gain, and tag type) |
|
M100 RF Output Power |
0~300mm (related to reader parameters, antenna gain, and tag type) |
|
Reading Distance |
Frequency Hopping Spread Spectrum (FHSS) or fixed frequency, software configurable |
|
Writing Distance |
Built-in 150*150 -10dBi near-field antenna |
|
Modulation Method |
RS232, RJ45 or USB Type-C interface |
|
Antenna |
WiFi, Bluetooth |
|
Communication Interface |
Serial communication speed: 38400, 115200bps, RJ45 communication speed: 10/100Mbps |
|
AD-Q68Pro |
LED indicator lights, buzzer |
|
Wireless Communication |
Serial port or USB upgrade |
|
Communication Rate |
Provides API development kit and C, C#, and Java application examples |
|
Physical Parameters |
|
|
Dimensions |
338 (length) * 248 (width) * 28 (height) mm |
|
AD-Q68 Power Supply |
Equipped with a power converter with 220V AC input and +12V/3A DC output |
|
AD-Q68U Power Supply |
5V USB Type-C interface |
|
AD-Q68pro Power Supply Capacity |
10000mAh |
|
AD-Q68 Weight after packaging |
Approximately 2.0 kg |
|
AD-Q68U Weight after packaging |
Approximately 1.6 kg |
|
AD-Q68Pro Weight after packaging |
Approximately 2.0 kg |
|
Humidity |
5% ~ 95%, non-condensing |
|
Protection Rating |
IEC IP54 |
|
Operating Temperature |
-20°C ~ 80°C |
|
Storage Temperature |
-40°C ~ 85°C |
