Model: AI-IR60
AI-IR60 UHF RFID Industrial Reader
$137.00
暂无数据
Chip:
Interface:
Protocol:
Frequency:
Shipping cost within 10kg is $100, and for every additional 1kg, the shipping cost increases by $5
Description
1.Industrial-grade design appearance patent, IP67 protection level, can adapt to harsh environments such as oil, dust, and humidity;
2.All industrial-grade electronic components are used, with built-in filters and isolation modules to resist interference, ensuring stable and reliable quality;
3.The RF module uses the outstanding American Impinj E310 chip, with extremely high sensitivity and higher reading rate;
4.Multi-protocol, multi-interface, multi-cascade, multi-mode, and multi-function;
5.Modbus directly connects to PLC to achieve rapid RFID acquisition; supports low-threshold secondary development.
Detail
|
Purchase code (product model) |
AI-IR60 |
|
Performance |
|
|
RF ModuleA |
AM-18E/AM-M18 (RF chip E310 or Fudan Micro) |
|
Air interface protocol |
RAIN RFID / Compliant with ISO 18000-6 C and EPC Global Gen2v2 regulations |
|
Frequency Range |
902~928MHz or 865~868MHz |
|
RF output power |
0~27dBm±1dBm |
|
Receiving sensitivity |
-75 dBm; |
|
Output Power |
0-26dBm |
|
Maximum read rate (tags/second) |
250 |
|
Reading distance |
0~35cm (related to reader parameter configuration, antenna gain, and tag type) |
|
Writing distance |
0~35cm (related to reader parameter configuration, antenna gain, and tag type) |
|
Number of antennas |
1 built-in ceramic antenna |
|
Firmware Upgrade |
Scalable upgrade mechanism |
|
Application Software Interface |
Provide API development kit and C and Java application examples |
|
Communication Interface |
RS232, RS485, RJ45, choose one |
|
Communication rate |
Serial port rate 9600～115200bps Network port rate 10/100Mbps |
|
Protocol |
Modbus TCP/RTU, VUP protocol |
|

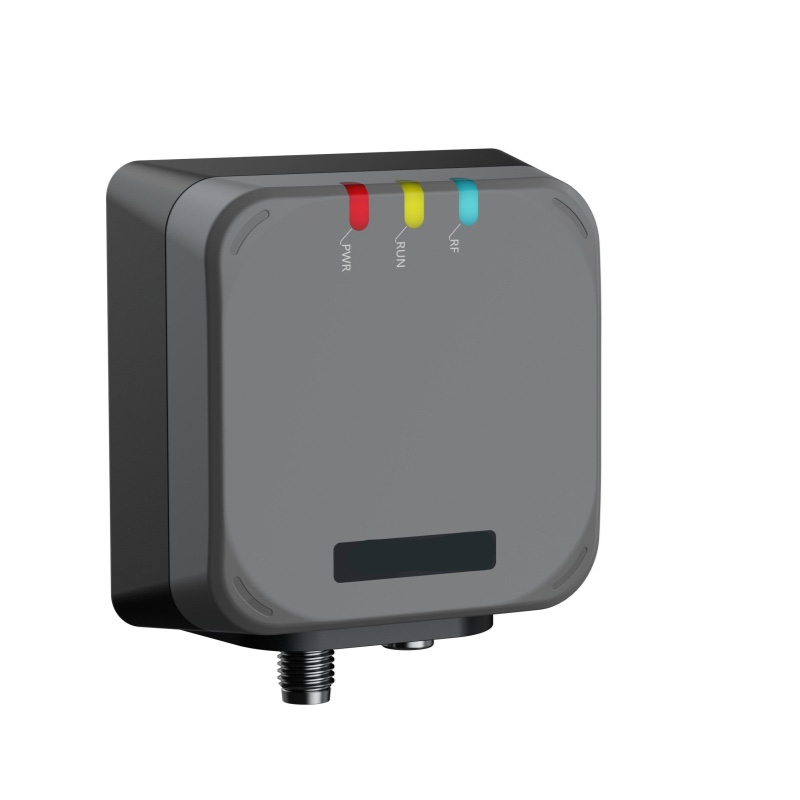

Signal indicator |
Power indicator PWR (red) Operation indicator RUN ( orange ) Card reading indicator RF (green) |
|
Mechanical and electrical properties |
|
|
Protection level |
IP67 |
|
Typical power consumption (Watts) |
＜ 3.5 W |
|
Operating Voltage |
DC 9~24V or POE power supply |
|
Working status display mode |
LED indicator, buzzer |
|
Product Size |
65*65*30mm |
|
Housing Material |
Cast aluminum + ABS |
|
Mounting bracket material |
Iron galvanizing or powder coating process |
|

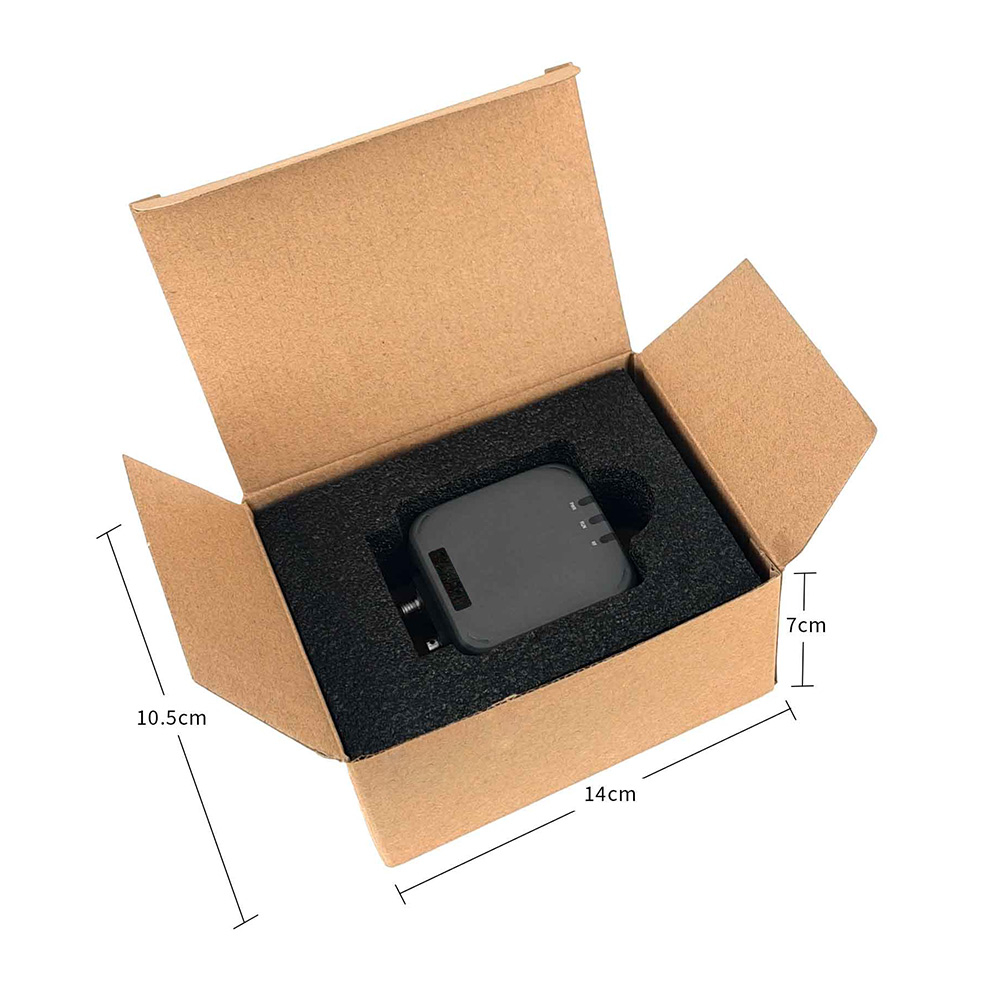

Weight (k ) |
Net weight 151g; including packaging 308g |
|

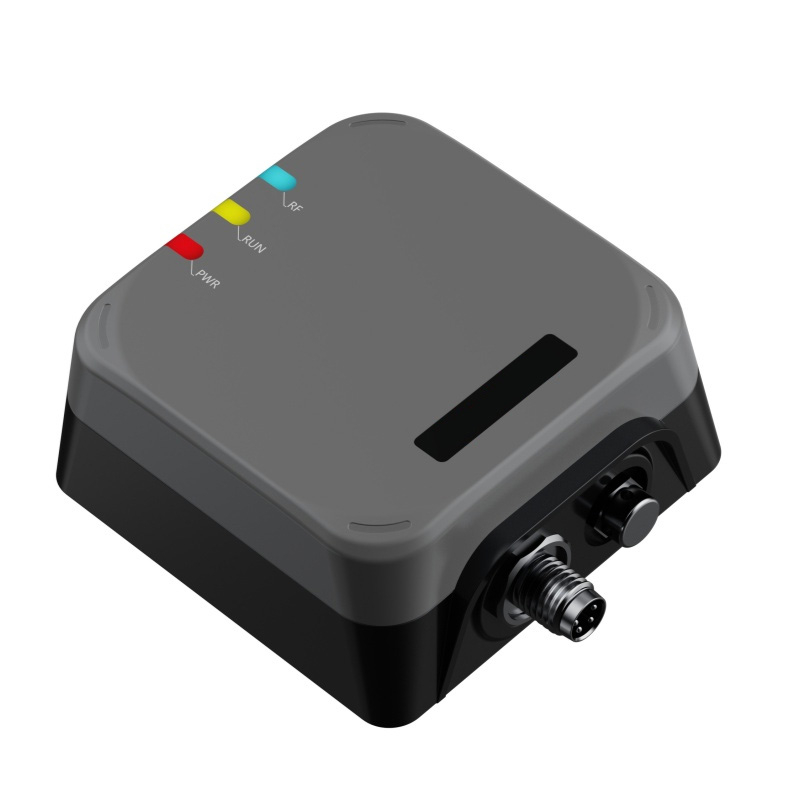

Wiring harness connector |
M8-A type 8-pin female connector ( Ethernet port/RS232 ), M8-A type 4 -pin female connector ( RS485 ) |
