Model:
VF-A987 Android13 Fixed RFID Reader
$490.00
暂无数据
Shipping cost within 10kg is $100, and for every additional 1kg, the shipping cost increases by $5
Description
The outer casing is made of high-strength die-cast aluminum alloy for efficient heat dissipation , and the PCB board adopts a high-density 6-layer board (immersion gold) design.
Employing the Impinj E710 RF chip , it boasts excellent stability and powerful multi-tag long-range identification performance ;
It uses a Rockchip RK3568 processor, a quad-core Cortex-A55 processor with a main frequency of 2.0GHz;
2 RAM + 16 G ROM storage, which can be replaced with larger capacity according to customer requirements;
Operating system : Android 13 ; highly expandable and supports customization.
Standard interfaces: RS232, RS485, RJ45; Optional interface functions: GPS, Wiegand, WIFI, Bluetooth, 4/5G (optional).
Supports MQTT HTTPS protocol and supports remote configuration via Web;
Supports 4/8-channel external antenna interfaces; supports RSSI and tag data filtering;
Output power is adjustable from 0 to 33 dBm; peak tag storage speed is > 950 tags/second.
Supports multiple working modes including active, command, and trigger modes;
Provides 4 optically isolated inputs , Four optically isolated output I/O interfaces facilitate product application integration;
It is an ideal equipment choice for warehousing and logistics supply chain, fixed asset management, personnel and vehicle management, production line manufacturing, etc
Detail
|
Purchase code (product model) |
VF-A987 (Android 13 system) |
|
Performance parameters |
|
|
Frequency range |
860MHz – 960MHz (can be adjusted depending on country or region) |
|
Work area support |
The United States, Canada, and other regions that comply with U.S. FCC Part 15 regulations. Europe and other regions that comply with ETSI EN 302 308 standards China, India, Japan, South Korea, Malaysia, Taiwan |
|
Frequency modulation |
Broadband frequency modulation (FHSS) or fixed frequency, can be set by software. |
|
RF output |
0-33dBm adjustable; 50 ohm load |
|
Peak speed of inventory tags |
> 950 frames/second |
|
Receiver sensitivity |
≤-87dBm |
|
RSSI tag |
support |
|
Antenna connection protection |
support |
|
Ambient temperature monitoring |
support |
|
Number of antennas |
4 TNC antenna interfaces or 8 SMA antenna interfaces |
|
Standard Interface |
RS232, RS485, RJ45 |
|
Optional Interface |
Wiegand, Wi-Fi, Bluetooth, GPRS (4G/5G), GPS |
|
USB/TF/SIM card slot |
2 USB 3.0 ports / 1 TF card slot / Nano SIM card slot |
|
Video output interface |
One HDMI 2.0 port supports 4K@60fPS |
|
Communication rate |
Serial port speeds range from 9600 to 115200 bps, while RJ45 speeds are 1000 Mbps. |
|
Reliable firmware upgrades |
Scalable upgrade mechanism, USB/online, network upgrade |
|
General Purpose Input/Output (GPIO) |
3 optically isolated inputs, 4 optically isolated outputs |
|
Application Software Interface |
Provides API development kits and application examples (.Net/C++/Java) |
|
Electrical performance |
|
|
CPU processor |
Rockchip RK3568 processor, a quad-core Cortex-A55 processor with a clock speed of 2.0GHz and an integrated NPU; |
|
NPU |
1Tops |
|
GPU |
Mail-G52-2ee |
|
RAM+ROM |
2+16G |
|
Operating system support |
Android 13 |
|
Tag operation performance |
|
|
Reading distance |
With a 9dBi antenna configuration, the typical read distance is 0-25 meters (depending on tag performance). |
|
Air Interface Protocol |
EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C |
|
Maximum receiver sensitivity |
-87dBm; |
|
Mechanical and electrical performance |
|
|
size |

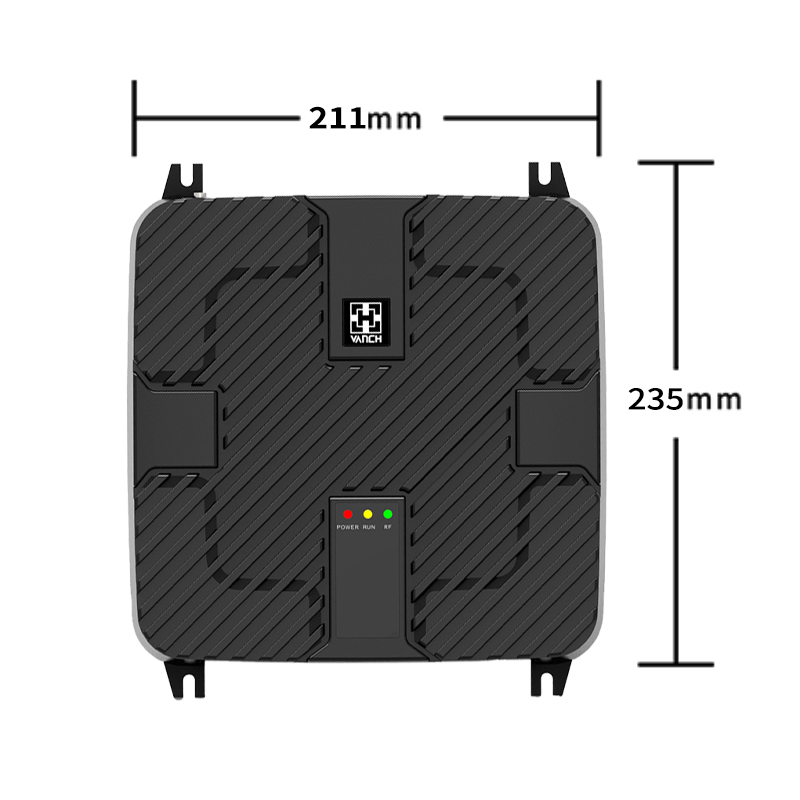

235 ( length) * 211 (width) * 40 (height) mm |
|
Device power supply/operating power consumption |
DC9-24V/10W (Maximum output power 33dBm) |
|
RF output interface |
SMA (8-port) or TNC (4-port) connectors |
|
Weight after packaging |
2.5KG |
|
Material |
Die-cast aluminum |
|
humidity |
5% to 95%, non-condensing |
|
Protection level |
IEC IP53 |
|
Operating temperature |
-20°C to +70°C |
|
Storage temperature |
-20°C to 85°C |
|
Compliance Certification |
FCC certification, CE certification |
|
Application areas |
Asset management, personnel and vehicle access control, production line and warehouse logistics management, etc. |
