Model: AI-IR610P-UHF

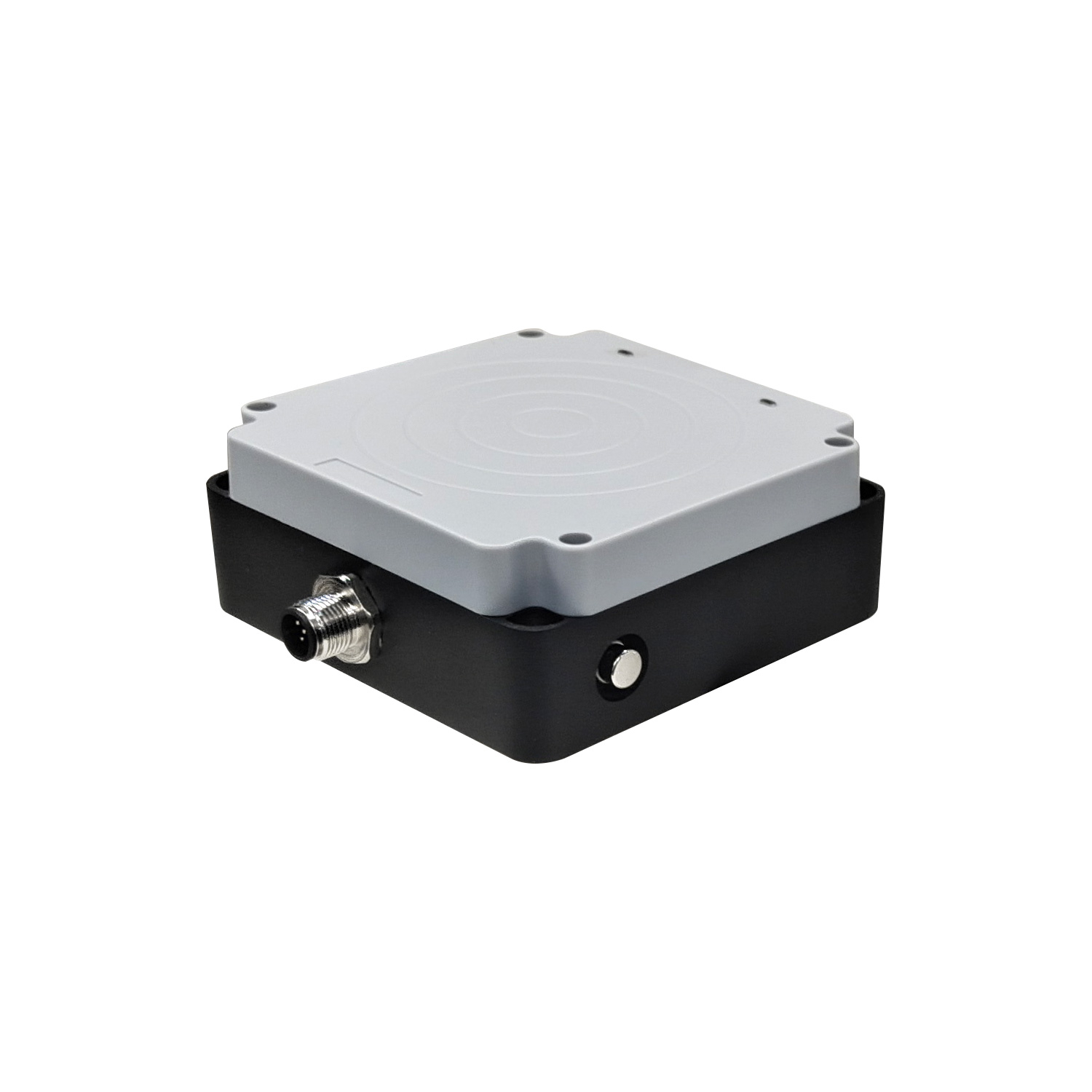

AI-IR610P-UHF Industrial RFID reader
$150.00
暂无数据
Chip:
Interface:
Frequency:
Shipping cost within 10kg is $100, and for every additional 1kg, the shipping cost increases by $5
Description
1. Industrial design, strong and durable, suitable for harsh industrial production line environments;
2. RFID module uses Korean PR9200 or Impinj E310 dedicated UHF RFID chip;
3. Fully supports EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C standard electronic tag;
4. Working frequency 865-868MHZ, 902-928MHZ (adjustable according to the requirements of different countries or regions);
5. Supports Vanch VUP protocol, ModbusTCP, ModbusRTU protocol, TCP/UDP protocol
6. Card reading distance can be controlled at 30cm-200cm arbitrarily;
7. Communication mode supports 100M Ethernet communication, WiFi (optional), supports 232/485 communication.
Detail
|
Model |
AI-IR610P |
|
Performance Index |
|
|
RF chip |
Korean PR9200 or Impinj E310 (optional) dedicated RF chip |
|
Air interface protocol |
EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C |
|
Operating frequency |
902-928MHz or 865-868MHz |
|
Output power |
13-27dBm±1dBm |
|
Output power adjustment |
1dBm step (set by VANCH software) |
|
Receive sensitivity |
＜﹣70dBm |
|
Inventory tag peak speed |
＞150 times/second |
|
Read distance |
30~250cm (depending on the tag) |
|
Write distance |
0-100cm (related to reader parameter configuration, antenna gain, tag type) |
|
Tag RSSI |
Support |
|
Supported regions |
United States, Canada and other regions that comply with the US FCC Part 15 specification Europe and other regions that comply with the ETSI EN 302 308 specification China, India, Japan, South Korea, Malaysia, Taiwan |
|
Antenna |
Dual feed ceramic antenna or PCB near field antenna |
|
Communication interface |
RJ45, RS232, RS485 |
|
Communication protocol |
ModbusTCP, ModbusRTU, TCP/UDP protocol |
|
WiFi (optional) |
Support IEEE 802.11 n/b/g |
|
Heating device (optional) |
Low temperature automatic heating (-5°C) optional (determined according to the project site environment) |
|
Communication rate |
Serial port rate 9600~115200bps, RJ45 is 10Mbps |
|
Working status |
LED indicator, buzzer |
|
Reliable firmware upgrade |
Extensible upgrade mechanism |
|
General purpose input/output (GPIO) |
2-way input, 2-way output |
|
Application software interface |
Provide API development kit and C and Java application examples |
|
Mechanical and electrical performance |
|
|
Dimensions |

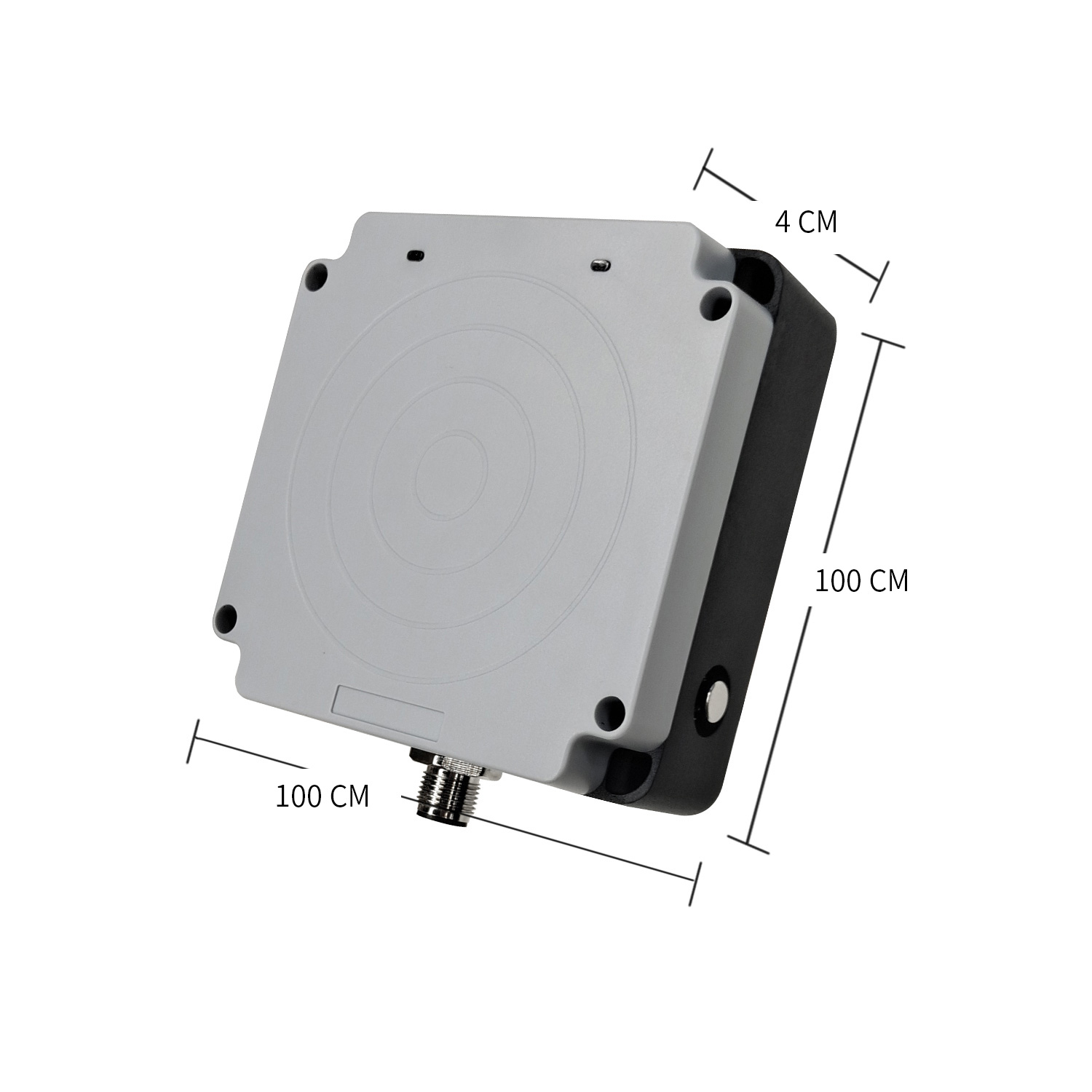

100 (length) * 100 (width) * 40 (height) mm |
|
Power supply |
Working voltage DC9-24V |
|
Connection tail wire |
Industrial connection tail line one to five |
|
Weight |
About 1.1KG |
|
Humidity |
5% to 95%, non-condensing |
|
Protection level |
IEC IP67 |
|
Operating temperature |
-40 ºC to +85 ºC |
|
Storage temperature |
Normal temperature |
