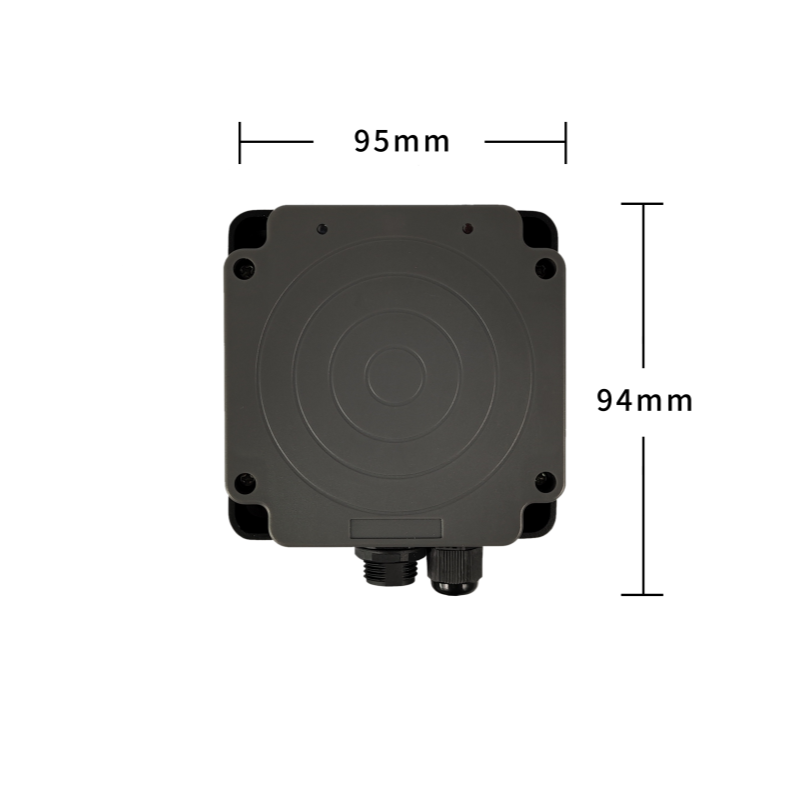

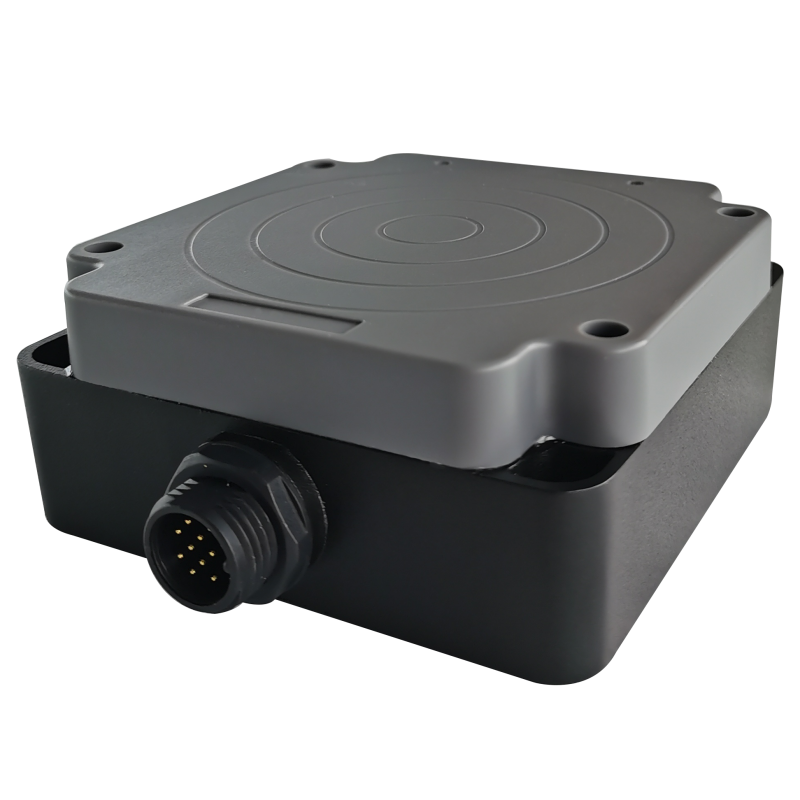

Model#A

AI-IR610

Performance Index

Frequency Range

860Mhz – 960Mhz（Can be adjusted according to different countries or regions）

Support working area

US, Canada and other regions following U.S. FCC

Europe and other regions following ETSI EN 302 208 with & without LBT regulations

Mainland China、Japan规Korea、Malaysia、Taiwan

Frequency modulation method

Broad spectrum frequency modulation (FHSS) or fixed frequency, which can be set by software

RF output

20-28dBm adjustable; 50 ohm load

Antenna number

Built-in double-feed point ceramic antenna

Interface

RS232、RS485

Communication rate

Rate 9600～115200bps，

Reliable firmware upgrade

Scalable upgrade mechanism

GPIO

Photoelectric isolation 1 input, 1 output;

Application software interface

Provide API development kit and application routines

Electrical performance

Working status display

LED indicator, buzzer

RFID tag operation performance

Reading distance

The distance can be controlled arbitrarily set between 30cm-150cm (related to label performance)

Air interface protocol

EPC global UHF Class 1 Gen 2 / ISO 18000-6C/ ISO18000-6B

Maximum receiving sensitivity

-75dBm; Maximum return loss: 10dBm

Mechanical electrical performance

Size

95 (L) * 95 (W) * 40 (H) mm

 Power

Working voltage adaptation 9-24V

Weight

450g

Humidity

5% to 95%, Non-condensing

IP rating

IEC IP67

Working temp.

-20 ºC to +60  ºC

Storage temp.

-20°C to 85°C

Connector form

Round waterproof M10 pin socket

Certification

FCC and CE

Mounting bracket

Galvanized iron bracket with adjustable reading angle
