Model: AI-IR65

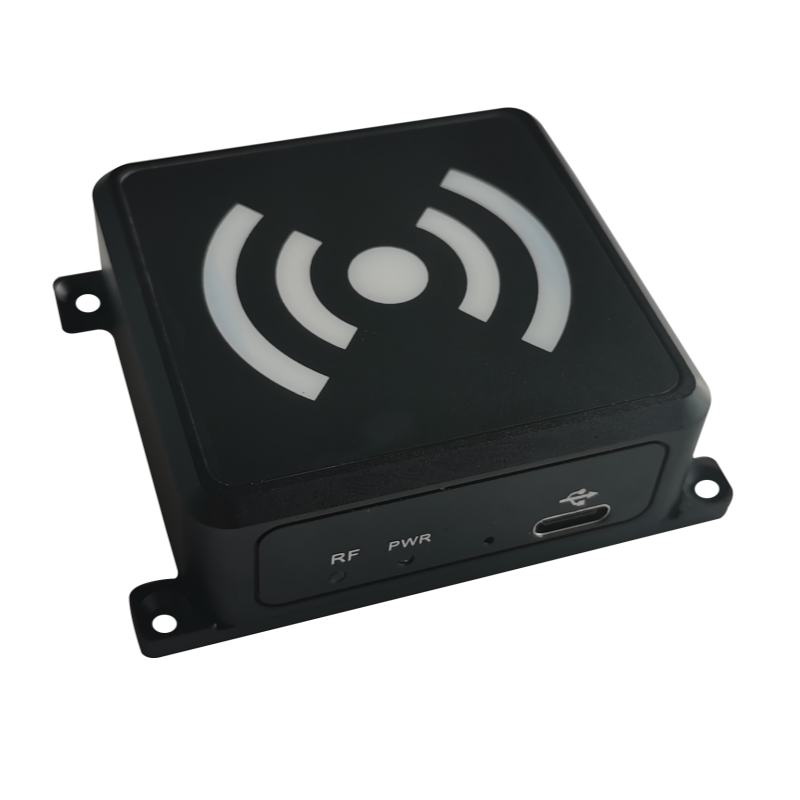

Small UHF integrated industrial reader AI-IR65
$130.00
暂无数据
Chip:
Interface:
Protocol:
Frequency:
Shipping cost within 10kg is $100, and for every additional 1kg, the shipping cost increases by $5
Description
(1) Industrial design, aluminum alloy CNC shell, strong and durable, in line with harsh industrial production line environment;
(2) Full support for compliance with ISO-18000-6C (EPC G2) standards;
(3) Operating frequency 902-928Mhz or 865-868Mhz(can be adjusted according to different countries or regions);
(4) With simulation keyboard function, computer USB interface power, blue radio frequency indicator light and buzzer operation;
(5) Small size, fast reading rate and other advantages, you can read and write the label authorization, loss reporting, programming and other operations;
(6) The reading distance can be freely set according to the output power;
(7) Suitable for automated production line projects, such as production lines, sorting lines, beat logistics, automated production lines, mold management, auto parts and final assembly production lines.
(2) Full support for compliance with ISO-18000-6C (EPC G2) standards;
(3) Operating frequency 902-928Mhz or 865-868Mhz(can be adjusted according to different countries or regions);
(4) With simulation keyboard function, computer USB interface power, blue radio frequency indicator light and buzzer operation;
(5) Small size, fast reading rate and other advantages, you can read and write the label authorization, loss reporting, programming and other operations;
(6) The reading distance can be freely set according to the output power;
(7) Suitable for automated production line projects, such as production lines, sorting lines, beat logistics, automated production lines, mold management, auto parts and final assembly production lines.
Detail
|
Model |
AI-IR65 |
|
Sexual signifiers |
|
|
Frequency range |
Operating frequency 902-928MHZ or 865-868MHZ (depending on the country or region can be adjusted) |
|
Rf module |
based on VM-5S (Korean PHYCHIPS PR9200), excellent stability |
|
Frequency modulation mode |
Broad spectrum frequency modulation (FHSS) or fixed frequency, can be set by software |
|
Antenna Gain |
Gain 1.5dbi ceramic antenna |
|
Communication interface |
Type_C |
|
Software interface |
Provide dynamic link libraries (DLLS) to support secondary development |
|
Tag performance |
|
|
Reading distance |
Built-in transceiver antenna, reading distance of 100~200mm |
|
Write distance |
The write distance is 0 to 100mm |
|
Air interface protocol |
support compliant with ISO-18000-6C (EPC G2) |
|
Mechanical electrical and pneumatic performance |
|
|
Dimensions |
68(L)*54.5(W)*21.2(H)mm |
|
Power Supply |
Computer USB port power supply or 9-24V DC power input |
|
Weight |
60g |
|
Humidity |
5% to 95%, non-condensing |
|
Protection class |
IEC IP52 |
|
Operating temperature |
-20 ºC to 65 ºC |
|
Storage temperature |
-40°C to 80°C |
