Model: AG-IOL-16DIP-M12A

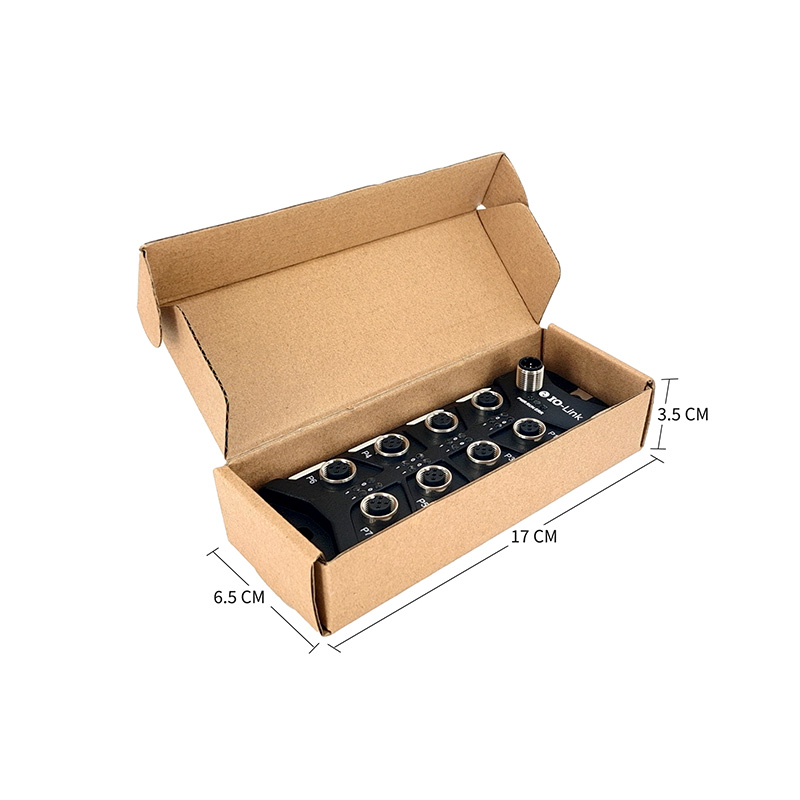

IO-Link Industrial Communication Gateway (Slave) AG-IOL-16DIP-M12A
$520.00
暂无数据
Protocol:
Shipping cost within 10kg is $100, and for every additional 1kg, the shipping cost increases by $5
Description
AG-IOL-16DIP-M12A is a HUB slave based on IO-Link technical specifications launched by Vanch Intelligent. It enables IO signals to be converted into IO-Link through the HUB and communicate with the upper network.
Detail
|
Purchase code (product model) |
AG-IOL-16DIP-M12A |
|
Physical parameters |
|
|
Shell material |
ABS+PC |
|
weight |
245 g |
|
size |
155 x 60 x 22.8 (mm) |
|
Electrical parameters |
|
|
Supply voltage |
18 ... 30,2 V DC, corresponding to EN 61131-2 |
|
Ripple |
< 1 % |
|
No-load current |
≤ 21mA |
|
Load current (PIN 1) |
max. 200 mA (temperature-dependent) |
|
Us Total current |
3,5 A |
|
Input signal |
PNP, type 3 |
|
Working conditions |
|
|
Ambient temperature |
-5°C … +70°C |
|
Storage temperature |
-20 °C … +70 °C |
|
Protection level |
IP67 (when all protective nuts are installed) |
