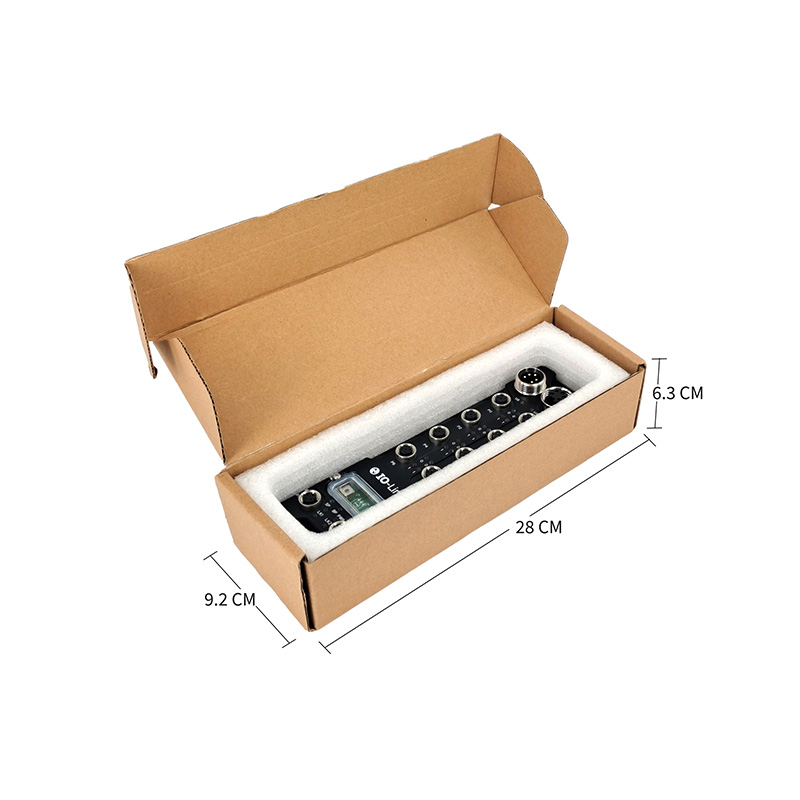

Model: AG-IOL-PN-8M12A
IO-Link Industrial Communication Gateway (Master） AG-IOL-PN-8M12A
$520.00
暂无数据
Protocol:
Shipping cost within 10kg is $100, and for every additional 1kg, the shipping cost increases by $5
Description
AG-IOL-PN-8M12A is a master gateway based on IO-Link technical specifications launched by IDTech, which enables IO-Link signals to communicate with upper-layer networks (PLC, HMI, MES, etc.) through the master station integrating industrial Ethernet protocols such as Profinet, EtherCAT and OPC UA.
Detail
|
Purchase code (product model) |
AG-IOL-PN-8M12A-FLP (Plastic housing) |
|
AG-IOL-PN-8M12A-FLM (metal housing) |
|
|
Physical parameters |
|
|
Shell material |
ABS+PC |
|
weight |
690 g |
|
size |
237 x 62 x 22.8 (mm) |
|
Install |
M5 Screw |
|
Power interface |
7/8'' interface |
|
Protection level |
IP67 |
|
Electrical parameters |
|
|
Supply voltage |
18 ... 30,2 V DC, corresponding to EN 61131-2 |
|
Ripple |
< 1 % |
|
No-load current |
≤ 250 mA |
|
Us Total current |
9A |
|
UA Total current |
9A |
|
Working conditions |
|
|
Ambient temperature |
-25°C … +55°C |
|
Storage temperature |
-40 °C … +70 °C |
|
Protection level |
IP67 (when all protective nuts are installed) |
