Model: AT-H30

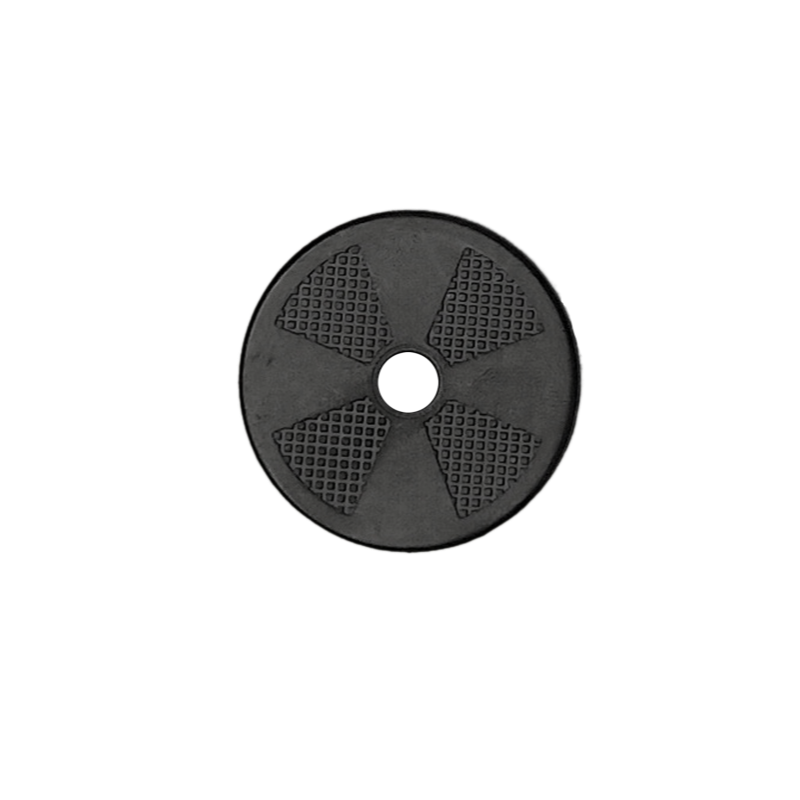

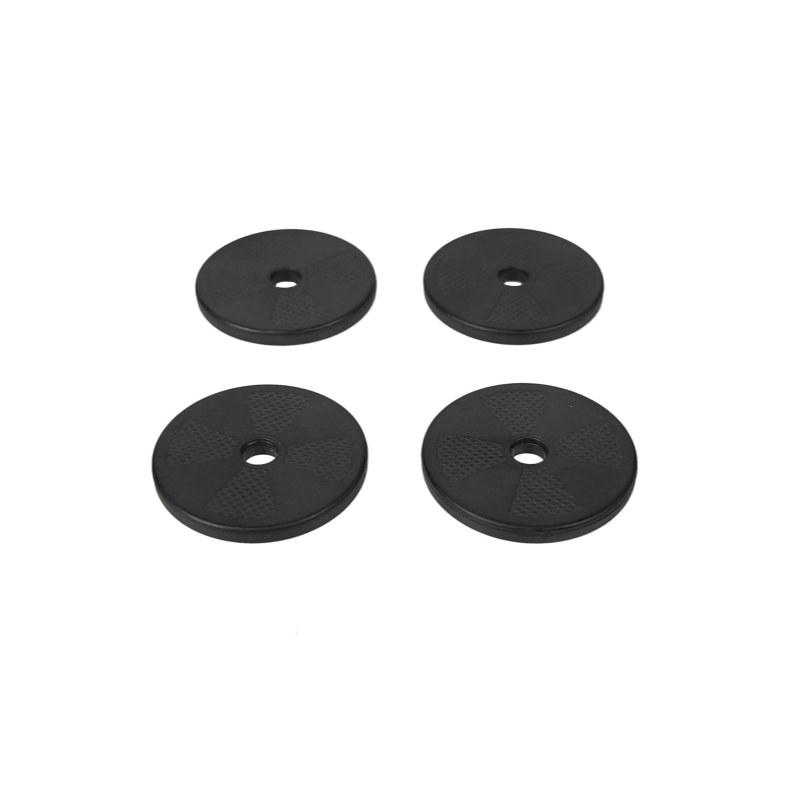

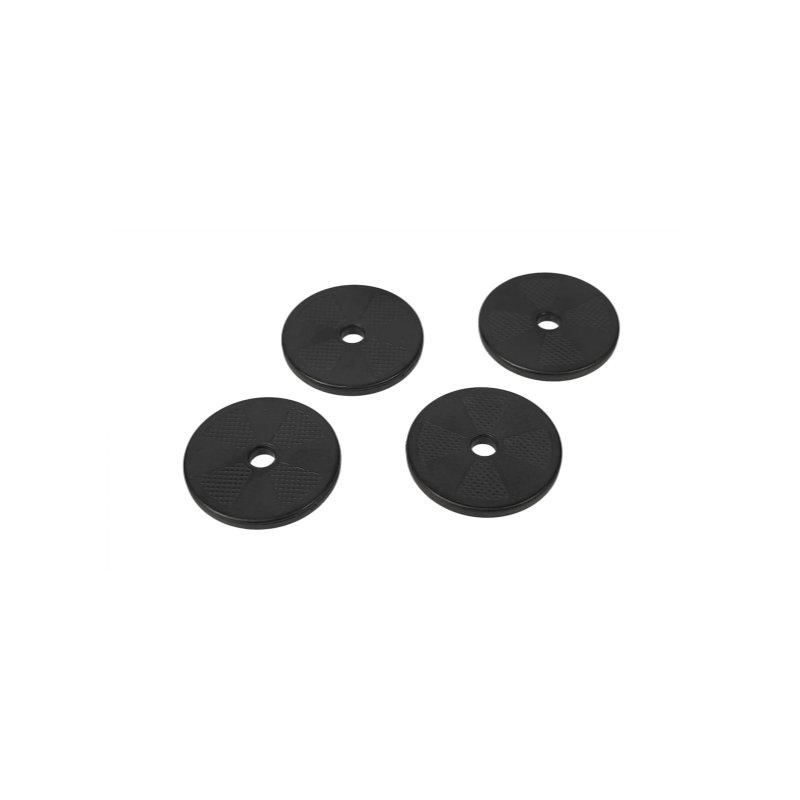

RFID High Temperature Anti-metal Tag Specification AT-H30
$2.20
暂无数据
Protocol:
Shipping cost within 10kg is $100, and for every additional 1kg, the shipping cost increases by $5
Description
1. Widely used in fine chemical industry production line management, with high sensitivity and strong anti-interference ability.
2. 100% memory write test;
3. The material and design have been tested for reliability.
Detail
|
working frequency |
13.56Mhz |
|
air protocol |
ISO-15693 |
|
read and write time |
0.01ms |
|
chip type |
NXP ICODE X、NXP ICODE X2、MB89118C1-DIAP15-P1 24PF |
|
read and write performance |
Readable and writable (customers can repeatedly write content into the chip) |
|
storage |
112bits/256bits/2k bytes |
|
Erase life |
100,000/100,000/1 billion |
|
Physical Parameter |
|
|
Sensing distance |
2-50cm |
|
Main material |
PPS |
|
surface color |
black |
|
Product Size |
30*3mm aperture 5mm |
|
service life |
>10 years |
|
Operation Environment |
|
|
Operating temperature |
-25℃~+200℃ |
|
storage temperature |
-25℃~+220℃ |
|
mechanical stability |
Axial/radial compression strength 1000N/500N ( 10 seconds, static) |
|
washing cycle |
200 |
|
chemical resistance |
Typical Laundry and Dry Cleaning Processes Using Chemicals |
