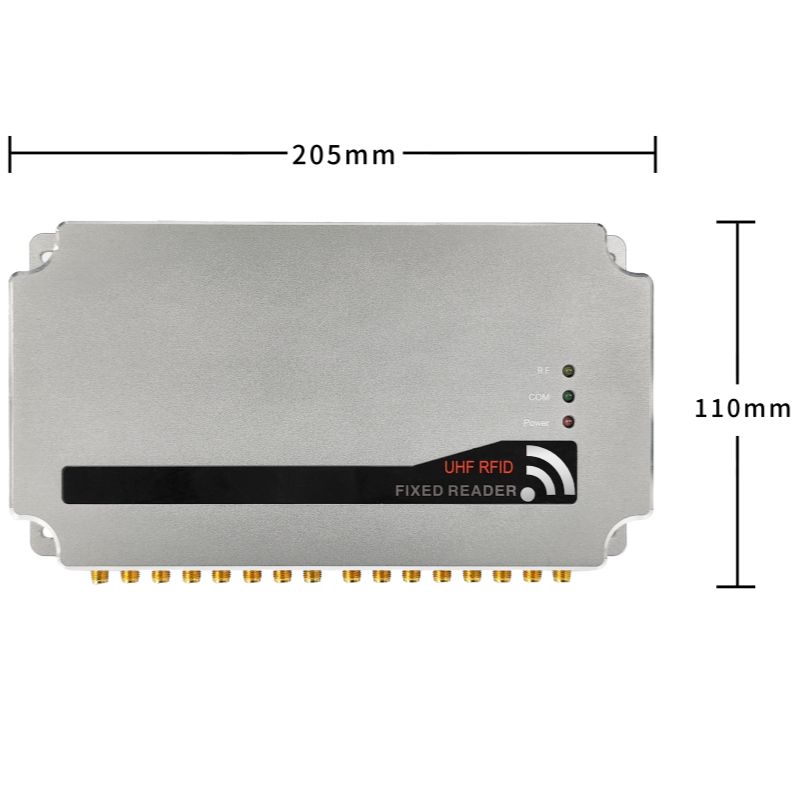

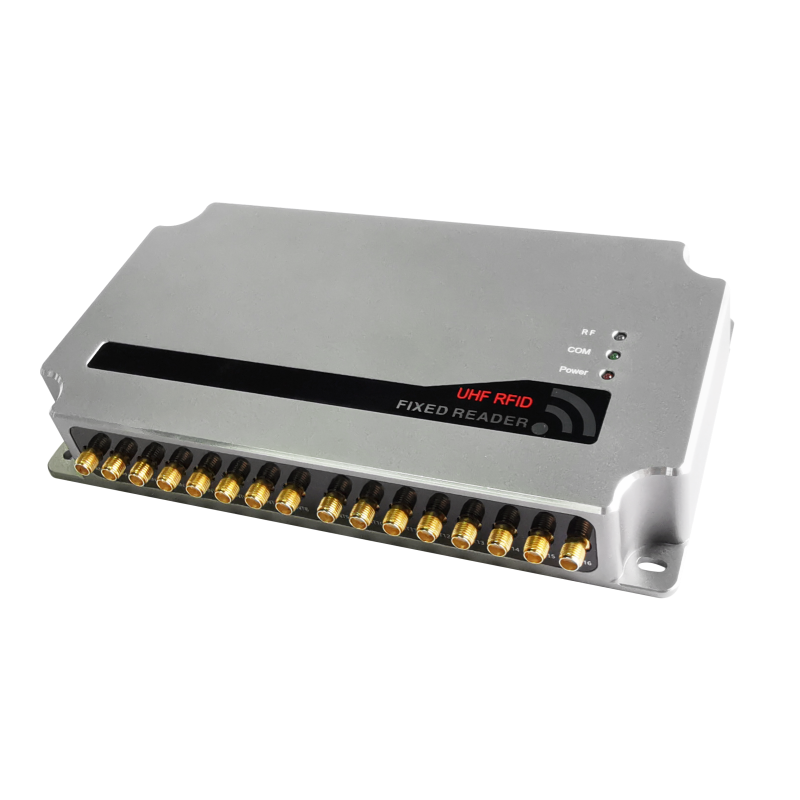

Product number

AF-716

Performance

RF core chip

Indy R2000

Air interface protocol

EPC Global UHF class1 Gen2/ISO 18000-6C/ISO 18000-6B

Working frequency

902-928MHz or 865-868MHz

Output power

20-30dBm±1dBm

Output power adjustment

1dBm((Set via VANCH software））

Receiving sensitivity

-82 dBm; Maximum return loss: 10 Dbm

Tag recognition peak speed

＞800times /sec

Reading distance

0-25m (related to reader parameter configuration, antenna gain, tag type)

Writing distance

0-10m (related to reader parameter configuration, antenna gain, tag type)

Tag RSSI

Support

Antenna connection protection

Support

Environmental temperature monitoring

Support

Supported regions

United States, Canada and other regions that comply with FCC Part 15 regulations in the United States Europe and other regions that comply with ETSI EN 302 308 regulations China, India, Japan, South Korea, Malaysia, Taiwan

Number of antennas

4 SMA-KE antenna interfaces; 8 SMA-KE antenna interfaces; 16 SMA-KE antenna interfaces are optional

Communication interface

10M/100M adaptive Ethernet, RS232, RS485, Wiegand26/34 interface

WiFi（Optional）

Support IEEE 802.11 n/b/g

Communication rate

The serial port rate9600～115200bps，RJ45 is 10Mbps

Reliable firmware upgrade

Scalable upgrade mechanism

General input/output （GPIO）

2 inputs, 1 output

Application software interface

Provide API development kit and VC, VB, Java application routines

Mechanical electrical performance

Size

205(L)*110 (W)*33(H)mm

Power supply

Equipped with 220V AC input, +12V/3A DC output power converter

RF output interface

SMA-KE type connector

Weight

＜1.5KG

Humidity

5% to 95%, non-condensing

Protection level

IEC IP51

Working temperature

-20 ºC to +60  ºC

Storage temperature

Normal temperature

Compliance certification

FCC、CE
