Model: AF-S708
8-Port Android RFID Fixed Reader AF-S708
$374.00
暂无数据
Chip:
Interface:
Frequency:
Shipping cost within 10kg is $100, and for every additional 1kg, the shipping cost increases by $5
Description
AF-S708 eight-port UHF Android reader has a high cost-effectiveness, meets customers' needs for price, performance and multiple application scenarios, and can realize value benefits for customers! It adopts Qualcomm MSM8909 chip platform and 1.8GHz quad-core A7 processor to ensure easy data computing in complex environments; the RF channel adopts American Impinj E710/indyR2000 high-end RF chip, which has excellent multi-tag recognition and long-distance recognition performance. Super strong communication interface design, integrated Bluetooth, WiFi, 4G full network access, and 4-way input and output interfaces, USB, HDMI high-definition video, audio interface are all available, making professional technology simple without adding additional expenses. The products are widely used in intelligent transportation, commercial retail, supply chain management, asset management and other fields.
Detail
|
Product model |
AF-S708 |
|
physical parameter |
|
|
Product Size |
240(L)*115(W)*33(H)mm |
|
Shell Material |
CNC Aluminum Alloy |
|
Protection class |
IEC IP54 |
|
Weight |
1.2Kg |
|
Electrical Parameter |
|
|
Operating System |
Android7.1.2 |
|
CPU Processor |
Qualcomm MSM8909 chip platform, 1.8GHz quad-core A7 processor, main frequency up to 1.8GHz |
|
GPU Graphics Processor |
Mali-T764 GPU, support 4K, H.265 hard decoding |
|
RAM+ROM Memory |
1GB LPDDR3+ 8GB eMMC (optional 2GB/4GB/16GB/32GB) |
|
Online Upgrade |
Supports remote update of OS kernel and applications |
|
Built-in storage SD |
Supports SD card*1, up to 128GB |
|

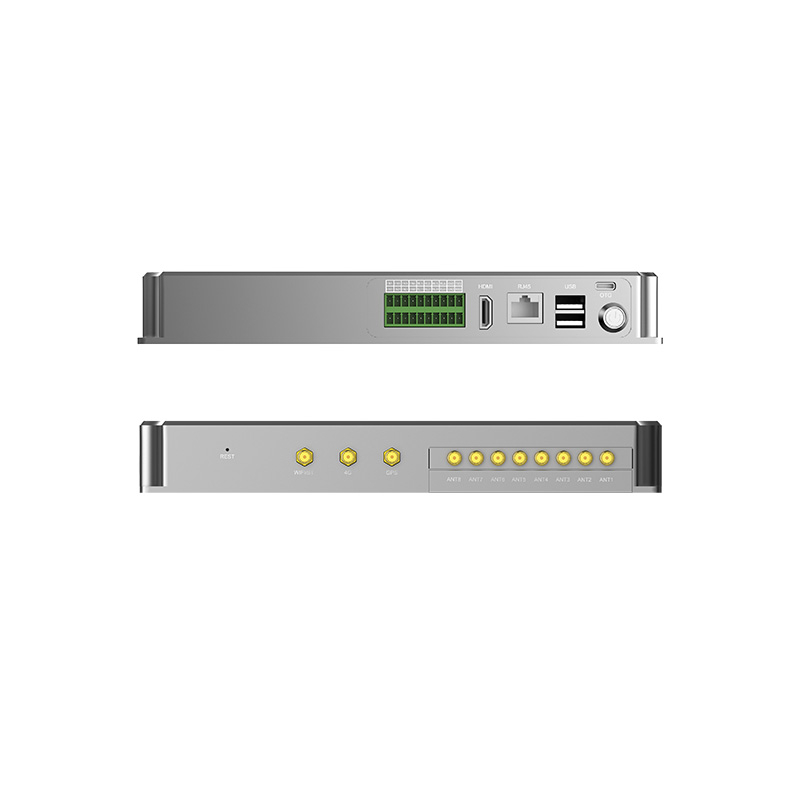

USB Interface |
2 USB 2.0 ports (HF terminal), 1 debugging interface OTG (TYPE-C) |
|
HDMI HD Output |
Support video 1*HDMI interface (1080P) |
|
Type-c |
OTG, external debugging interface |
|
Input Voltage |
DC12/3A |
|
Wattage |
25W |
|
Ambient Temperature Detection |
Support |
|
I/O Interface |
4-channel optocoupler input (initial low level), 4-channel relay output port (can load DC24V/2A) |
|
communication method |
|
|
WIFI |
Support IEEE802.11n/b/g 2 .4G |
|
Bluetooth communication |
Support Bluetooth4.0 |
|
Positioning |
Support GPS+GLONASS |
|
4G Network |
4G: Mobile (TD-LTE);4G: Unicom (FDD-LTE);4G: Telecom (FDD-LTE);4G: Unicom (TD-LTE) |
|
3G/2G network |
3G: Mobile (TD-SCDMA);3G: Unicom (WCDMA);3G: Telecom (CDMA2000);2G: Mobile Unicom (GSM)+Telecom (CDMA) (optional) |
|
Serial port (RS232) |
1 way serial communication (DB9) |
|
RJ45 network connection |
1 way; 10M/100BASE-T Ethernet |
|
SIM Card Interface |
1 way |
|
RF interface |
4-way SMA antenna interface |
|
Reliable firmware upgrade |
Expandable upgrade mechanism |
|
Application software interface |
Provide API development kit and C and Java application routines |
|
UHF RFID Parameters |
|
|
RF Core Chip |
EPC Global UHF class1 Gen2/ISO 18000-6c |
|
Air Port Protocol |
EPC Global UHF class1 Gen2/ISO 18000-6c |
|
Operating Frequency |
902-928MHz or 865-868MHz |
|
Output Power |
0 to 33dBm±1dBm |
|
Output Power Adjustment |
1dBm step (set via VANCH software) |
|
Receiving Sensitivity |
<-85dBm |
|
Peak tag recognition speed |
＞800 times/sec |
|
Read Distance |
0-25 meters (related to reader parameter configuration, antenna gain, tag type) |
|
Write Distance |
0-10 meters (related to reader parameter configuration, antenna gain, tag type) |
|
Tag RSSI |
Support |
|
Antenna Connection Protection |
Support |
|
Supported Regions |
U.S., Canada and other regions compliant with U.S. FCC Part 15 specifications |
|
environmental parameter |
|
|
Working Temperature |
﹣20° to﹢75° |
|
Storage temperature |
﹣40° to﹢85° |
|
Ambient humidity |
＜95%（non-condensable state） |
|

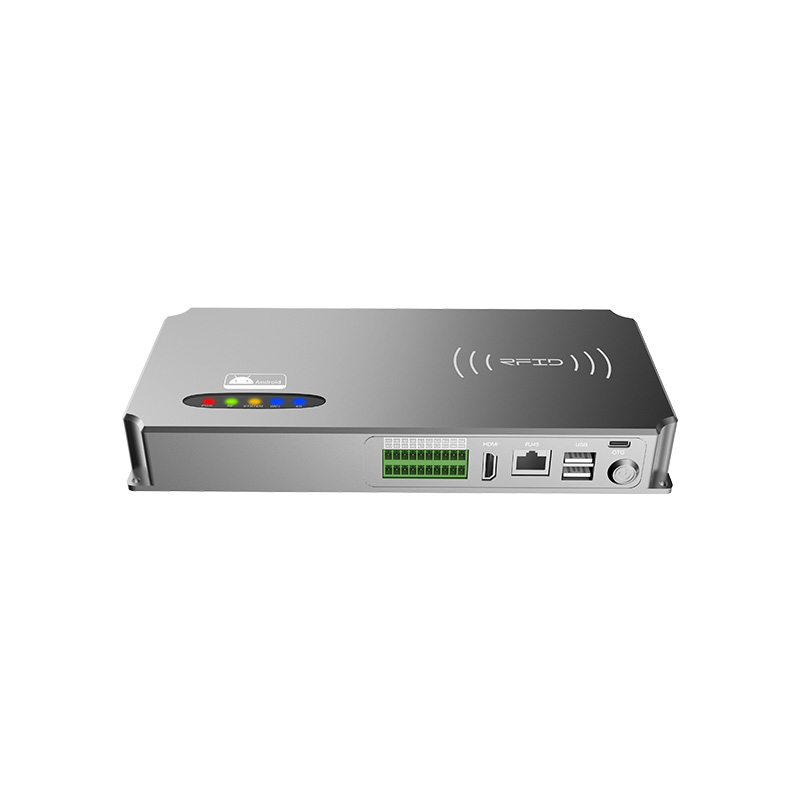

Working status indication |
|
|
Power indicator (PWR) |
1 red light, always on when powering up; |
|
Card Reader Indicator (RF) |
1 green light, blinking when RFID card is read; off when card is not read. |
|
System indicator (SYSTEM) |
1 yellow light, blinking when the system is running normally with APP; off/on when APP is dead or no system is started. |
|
WIFI indicator (WIFI) |
1 blue light, WIFI network (not WIFI hotspot network), blinking when the network is connected, and vice versa, off/always on. |
|
3G/4G indicator (4G) |
1 blue light, 3G/4G module working indicator blinking, and vice versa off / always on |
|
Buzzer |
Sound indication of working status |
