Model: AF-647P

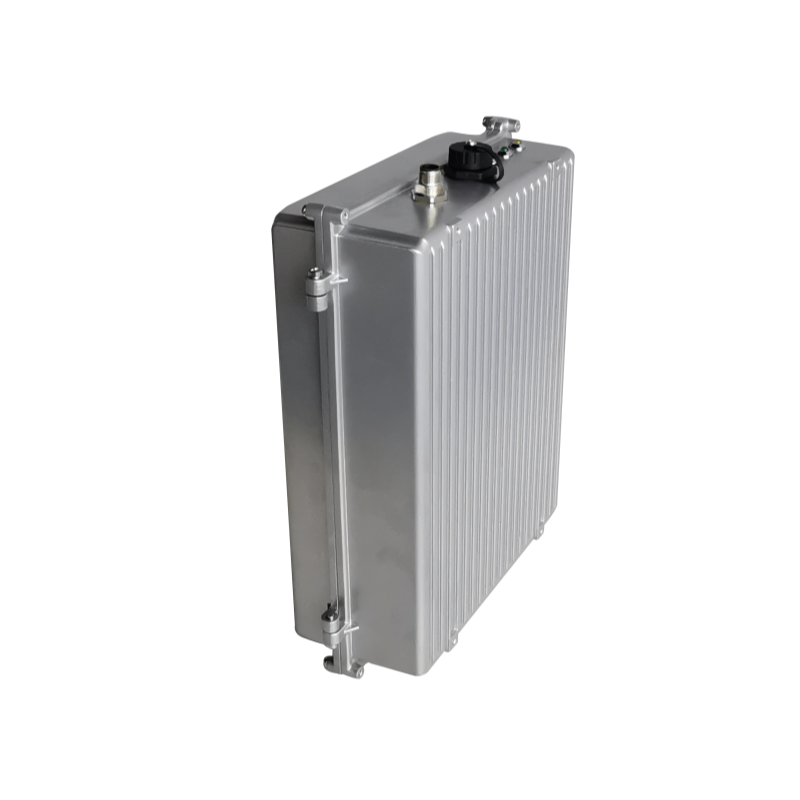

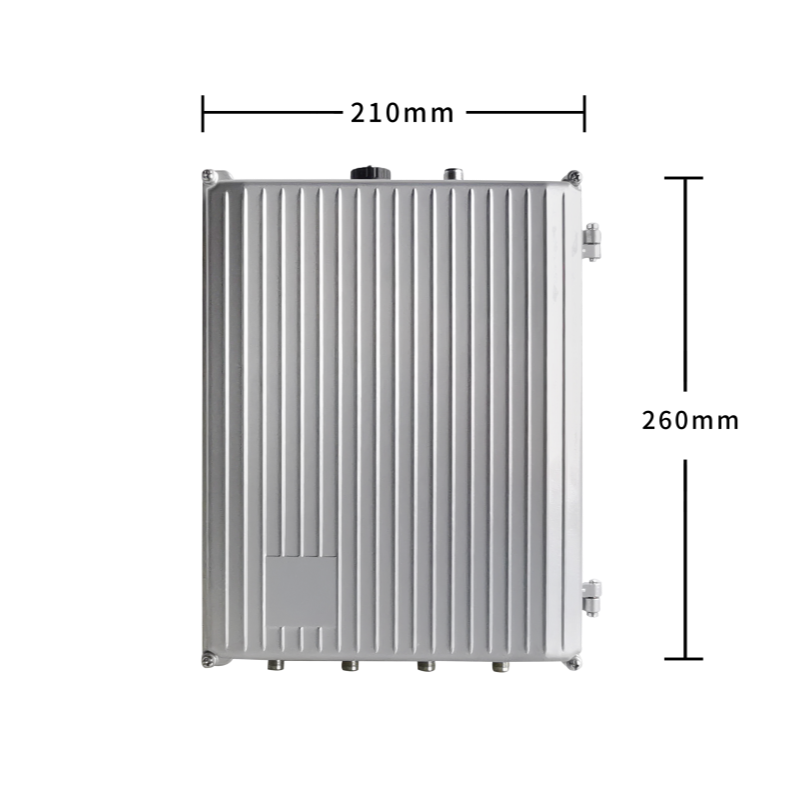

Outdoor using UHF Reader AF-647P
$329.00
暂无数据
Chip:
Interface:
Protocol:
Frequency:
Shipping cost within 10kg is $100, and for every additional 1kg, the shipping cost increases by $5
Description
1. Adopt Impinj's high-performance E710/Indy R2000 dedicated UHF RFID chip, which has excellent stability and strong multi-tag long-distance recognition performance;
2. Fully support electronic tags that comply with EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C / ISO18000-6B standards;
3. Working frequency 860-868MHZ, 902-928MHZ (can be adjusted according to the requirements of different countries or regions);
4. Supports Wiegand, RS232, RS485, TCP/IP, or wireless transmission interface communication methods;

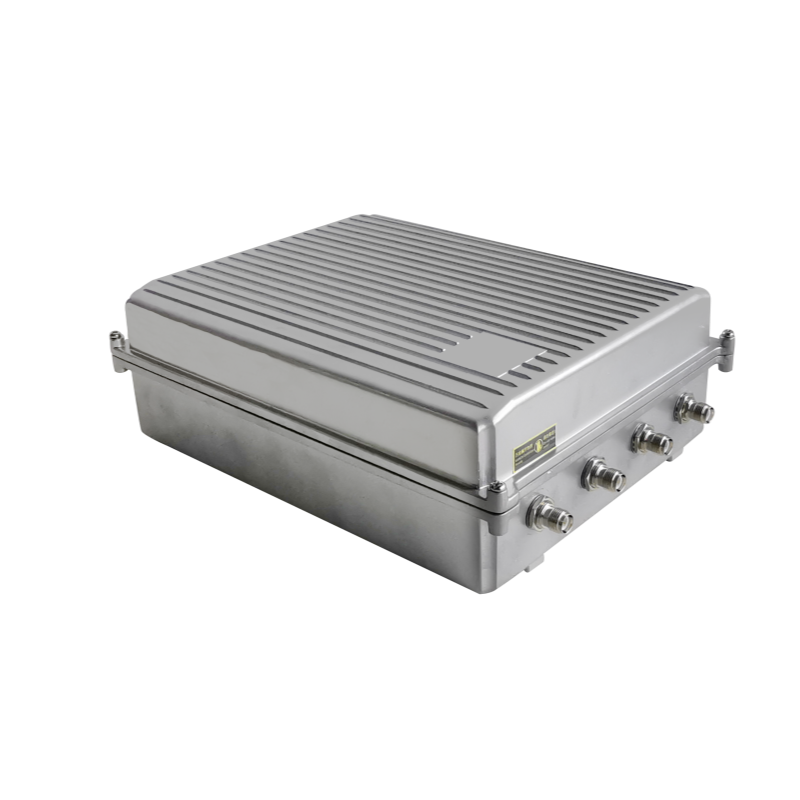

5. 4 external TNC antenna interfaces, with adjustable output power of 0-33dbm, supporting multiple working modes such as active mode, command mode, and trigger mode.
Detail
|
Purchase code (product model) |
AF-647P |
|
Performance Parameters |
|
|
Frequency range |
902 Mhz – 9 28 Mhz ,865 Mhz -868 Mhz (can be adjusted depending on the country or region) |
|
Work area support |
US, Canada and other regions following US FCC Europe and other regions following ETSI EN 302 208 with & without LBT regulations Mainland China , Japan , Korea , Malaysia , Taiwan |
|
Frequency modulation |
Wide spectrum frequency modulation (FHSS) or fixed frequency, software configurable |
|
RF Output |
0-3 3 dBm; 50 ohm load |
|
Peak speed of inventory tag |
> 850 pics/sec |
|
Tag Cache |
800 labels @ 96 bit EPC |
|
Label RSSI |
support |
|
Antenna connection protection |
support |
|
Ambient temperature monitoring |
support |
|
Number of antennas |
1 TNC antenna interface; 2 TNC antenna interfaces; 4 TNC antenna interfaces optional |
|
Communication interface |
TCP/IP , RS232, RS485, Wiegand26/34 interface or 4G wireless communication |
|
Communication rate |
Serial port rate 9600～115200bps, RJ45 is 10Mbps |
|
Reliable firmware upgrade |
Scalable upgrade mechanism |
|
General Purpose Input/Output (GPIO) |
2 inputs, 1 output |
|
Application Software Interface |
Provide API development kit and VC, VB, Java application examples |
|
Label operation performance |
|
|
Reading distance |
8dbi antenna configuration, typical reading distance 3-25 meters (related to tag performance) |
|
Card Reader Mode |
Supports multiple working modes such as active mode, command mode, trigger mode, etc. |
|
Air interface protocol |
EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C/ ISO18000-6B |
|
Maximum receiving sensitivity |
-82 dBm; Maximum return loss: 10 Dbm |
|
Mechanical and electrical properties |
|
|
size |
2 95 (length)*2 25 (width)* 95 (thickness) mm |
|
Material |
Die-cast aluminum alloy |
|
power supply |
Equipped with a power converter with 220V AC input and +12V/3A DC output |
|
RF output interface |
TNC Type Connector |
|
weight |
＜2KG |
|
humidity |
5% to 95%, non-condensing |
|
Protection level |
IEC IP 65 |
|
Operating temperature |
-20 ºC to + 75 ºC |
|
Storage temperature |
-40°C to 8 5 °C |
|
Compliance Certification |
FCC certification, CE certification |
