Performance Parameters

Procurement code (product model)：

AF-946Pro、AF-989Pro

RF Core Chip：

USA  IMPINJ E710 dedicated RF chip

Air Port Protocol：

EPC Global UHF class1 Gen2/ISO 18000-6C/ISO 18000-6B

Operating Frequency：

902~928MHz or 865~868MHz

Output Power：

0~33dBm±1dBm

Receiving Sensitivity：

＜﹣80dBm

Peak speed of tag recognition：

＞800 times/second

Read Distance：

0~20m (related to reader parameter configuration, antenna gain, tag type)

Write Distance：

0~10m (related to reader parameter configuration, antenna gain, tag type)

Tag RSSI：

Support

Antenna Connection Protection：

Support

Supported Regions：

U.S., Canada and other U.S. FCC Part 15 compliant areas

Europe and other ETSI EN 302 308 compliant regions

China, India, Japan, Korea, Malaysia, Taiwan

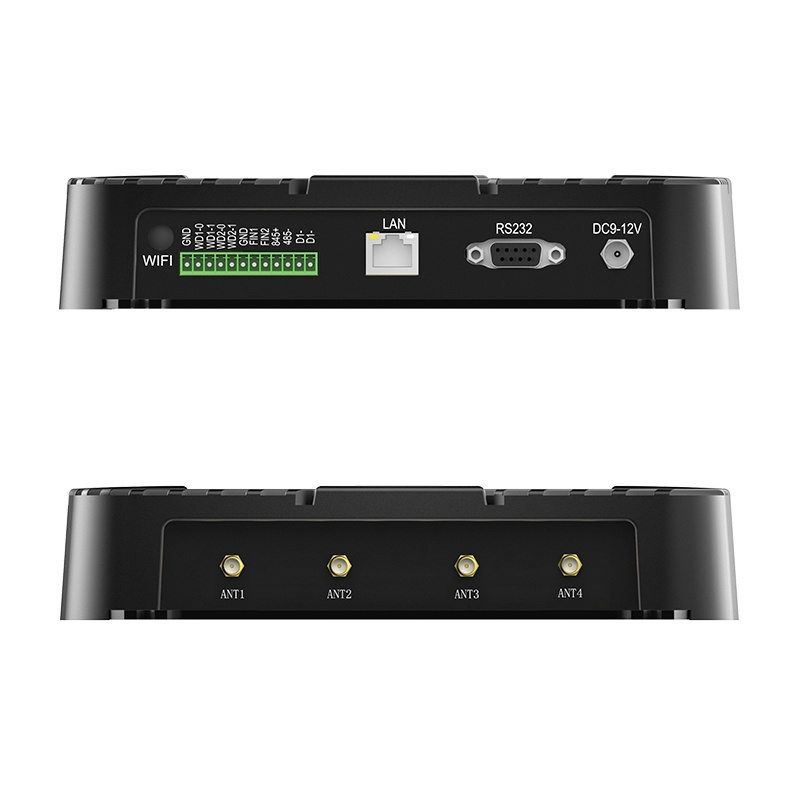

Number of Antennas：

4 external TNC antenna ports

Communication Interface：

RJ45, RS232, RS485, Wiegand26/34 interfaces

Communication Protocol：

TCP/UDP, VUP protocol, Modbus protocol

WiFi (optional)：

Support IEEE 802.11 n/b/g

Communication Rate：

Serial communication rate 9600～115200bps, RJ45 communication rate 10/100Mbps

Working Status：

LED indicator, buzzer

Firmware Upgrade：

Expandable upgrade mechanism

General Purpose Input/Output (GPIO)：

2 inputs, 2 output

Application Software Interface：

Provide API development kit and C# and Java application routines

Mechatronic Performance

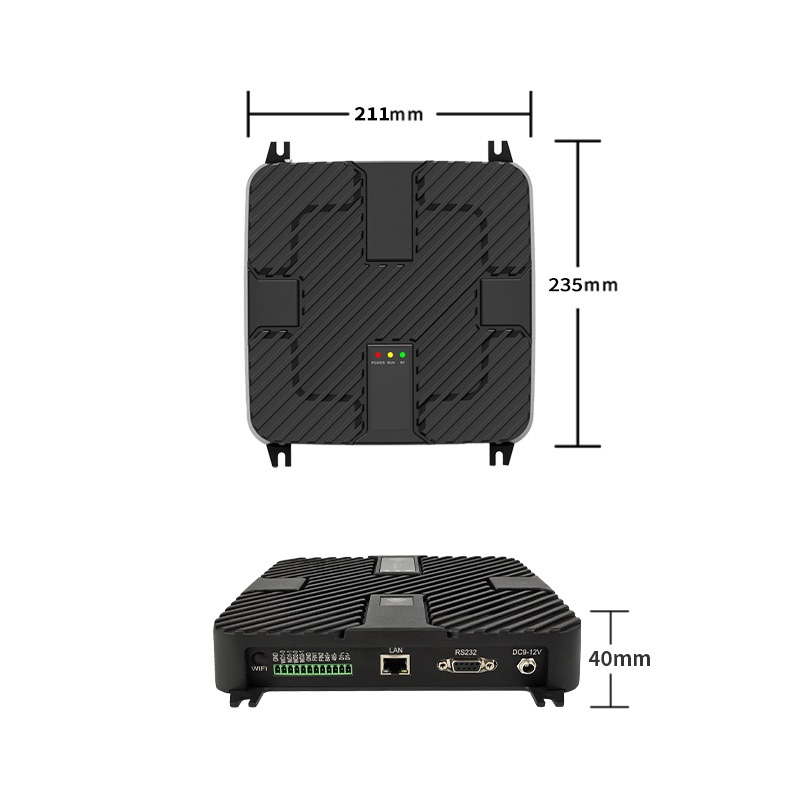

Dimension：

235(L)*211(W)*40(H)mm

Power supply：

Operating voltage DC9~24V

Power Consumption：

Maximum power consumption 15W, maximum starting current 1A

Weight：

Approx. 2.5kg (complete set)

Humidity：

5% ~ 95%, Non-condensing

Protection class：

IEC IP51

Operating Temperature：

-20ºC ~ +85ºC

Storage Temperature：

-40ºC ~ +85ºC

Compliance Certificates：

FCC Approved, CE Approved
