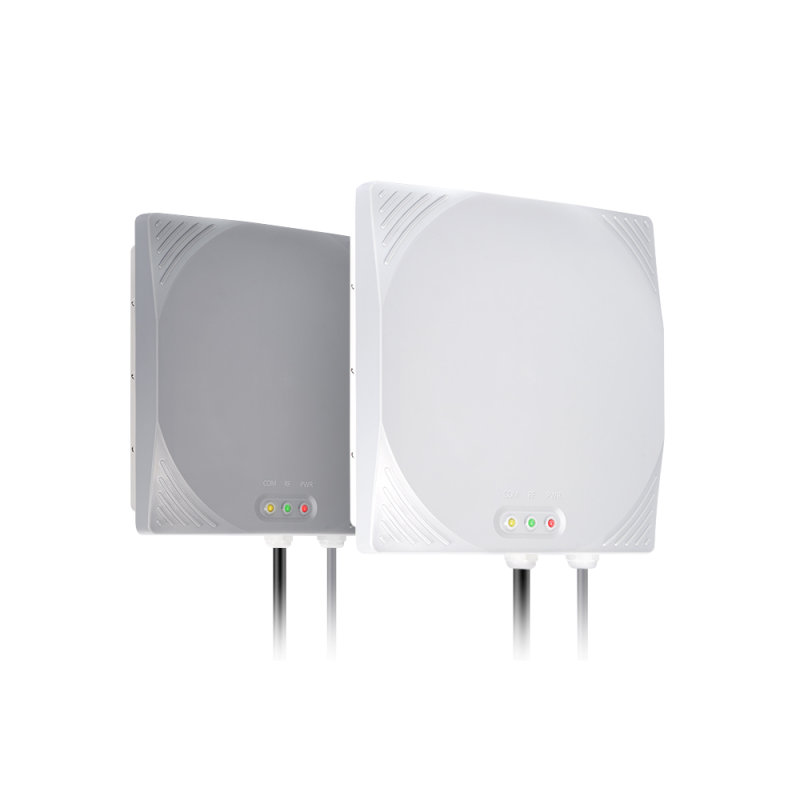

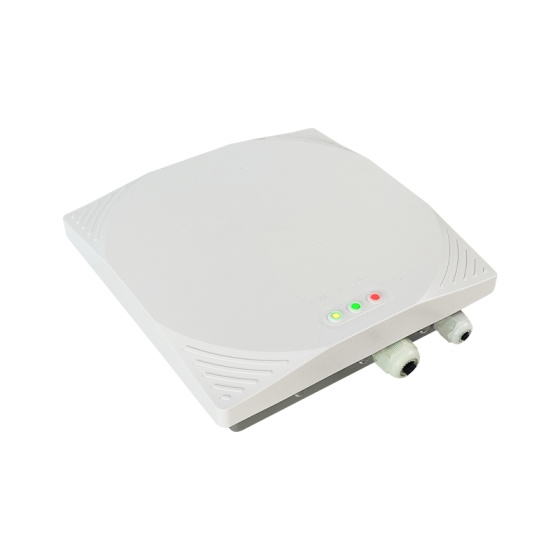

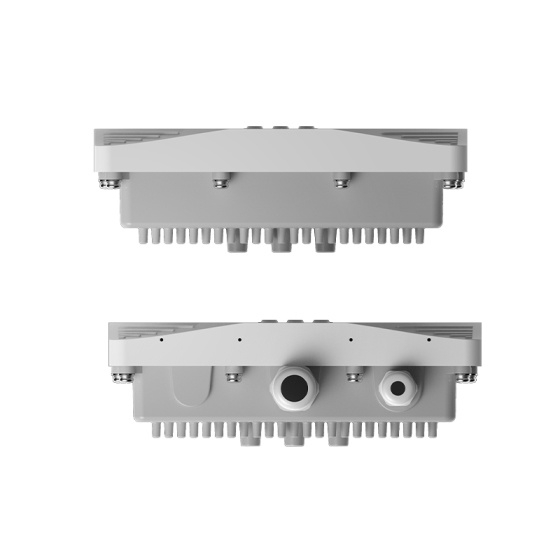

Model: AI-83、AI-88、AI-89
UHF RFID long-range integrated reader
$260.00
暂无数据
Chip:
Interface:
Protocol:
Frequency:
Shipping cost within 10kg is $100, and for every additional 1kg, the shipping cost increases by $5
Description
1. It has rich GPIO expansion functions and supports online upgrades;
2. Industrial-grade design, IP67 protection level, stable and worry-free operation around the clock;
3. Modular design with excellent performance RF module + communication control board;
4. Industrial communication ModBus RTU\ProfiNet;
5. Supports active, command, and trigger working modes, and real-time, interval, and cached data output modes.
Detail
|
Product size |
|
|
AI-83 size |
217(L)*217(W)*70(H)mm |
|
AI-88 size |
450(L)*450(W)*70(H)mm |
|
AI-89 size |
260(L)*260(W)*65(H)mm |
|
UHF RFID Parameters |
|
|
Module selection |
AM-5S(27dBm)/AM-61BT(33dBm)/E710(33dBm) |
|
System options |
Android/Linux/ARM MCU |
|
RF |
Based on VANCH's independent research and development technology |
|
Frequency range |
902～928MHz or 865～868MHz (adjustable by region) |
|
Internal antenna |
8dbi circular polarization antenna |
|
Air interface protocol |
EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C |
|
Output power |
33dBm (±1dBm) adjustable |
|
Reading distance |
AI-83:1-9M/AI-89:1-12M/AI-88:1-20M(depending on the label and environment） |
|
Multi-tag reading speed |
>850 pages/second (peak value) |
|
Regional support |
United States, Canada, and other regions that comply with the US FCC Part 15 standard Europe and other regions that comply with the ETSI EN 302 308 standard China, India, Japan, South Korea, Malaysia, Taiwan |
|
Mechanical and electrical performance |
|
|
ARM ST32 MCU |
ARM（STM32F107 Cortex-M3） |
|
Android |
Qualcomm MSM8909 chip platform |
|
Linux |
ATMEL AT91SAM9260 CPU, ARM926EJ-S processo |
|
Interface type |
(RJ45, RS485, RS232, Wiegand interface) standard, and (wireless WIFI, Bluetooth) optional |
|
Bluetooth communication |
Bluetooth 4.2 (optional) |
|
WiFi |
IEEE802.11b/g/n (optional) |
|
Serial port rate |
Rate 9600～115200bps |
|
RJ45 |
10Mbps |
|
GPI0 interface |
2-way input, 2-way output |
|
Reliable firmware upgrade |
Extensible upgrade mechanism |
|
Application software |
Provide API development kits and application examples based on Windows, Android, and system platforms |
|
Card reading prompts |
Buzzer, LED |
|
Power consumption |
Average power consumption <10W |
|
Power supply (aviation connector) |
Equipped with a power converter with 220V AC input and +9V/3A DC output |
|
Environmental parameters |
|
|
Humidity |
5%RH ~ 95%RH (non-condensing) |
|
Protection level |
IEC IP67 |
|
Operating temperature |
-20ºC～+60ºC |
|
Storage temperature |
-25ºC～+70ºC |
|
Fall-to-ground shock resistance |
1.2m/6.56ft |
|
Lightning protection |
DC grounding |
|
Physical parameters |
|
|
Weight |
AI-83:2500g/AI-88:3Kg/AI-89:3kg(Including packaging) |
|
Shell material |
ABS+PC |
|
Antenna bracket material |
Galvanized anti-rust iron |
|
Installation method |
Pole installation |
|
Radome color |
Ceramic white or warship gray |
|
Antenna rear cover |
Die-cast aluminum alloy |
|
Product accessories |
|
|
Power adapter、Mounting bracket、Communication cabl |
|
