Model: AI-C83S

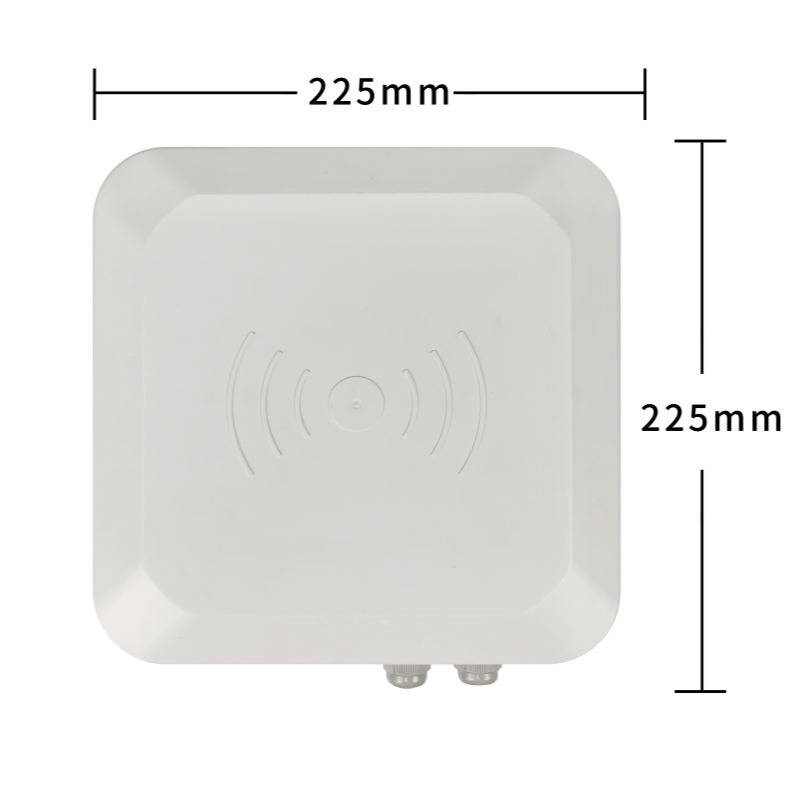

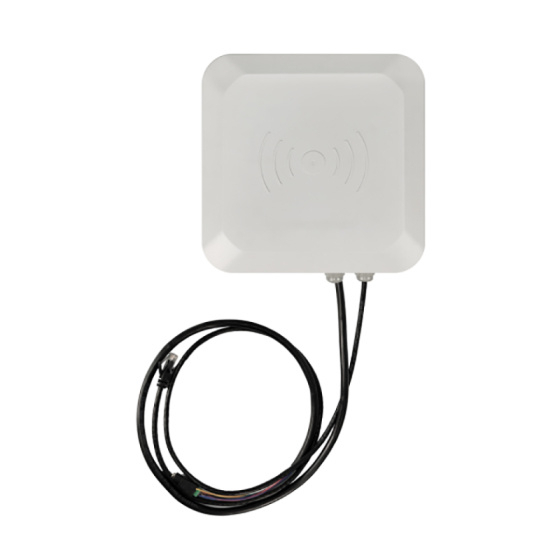

UHF RFID Integrated reader AI-C83S
$120.00
暂无数据
Chip:
Interface:
Protocol:
Frequency:
Shipping cost within 10kg is $100, and for every additional 1kg, the shipping cost increases by $5
Description
1. The double waterproof rubber ring design of the rear cover and antenna cavity of the product is IP65 protection grade;
2. The excellent imported UHF integrated chip is adopted, and the product is stable in reading and writing, with good consistency, which is far superior to the performance of discrete device scheme;
The product is widely used in asset management, warehousing and logistics access control, personnel and vehicle management, garbage classification management, etc.
The product is widely used in asset management, warehousing and logistics access control, personnel and vehicle management, garbage classification management, etc.
Detail
|
Model No. |
AI-C83S |
|
UHF RFID parameters |
|
|
RF radio frequency |
Based on VANCH independent research and development technology |
|
Frequency Range |
902～928MHz or 865～868MHz (can be adjusted according to different countries or regions) |
|
built-in antenna |
8.5±0.5dBi circularly polarized antenna ; |
|
Air Interface Protocol |
EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C |
|
output power regulation |
1dBm step (set by VANCH software) |
|
Reading distance |
The reading distance is greater than 8 meters (test label: Impinj E41b) |
|
Multi-tag reading speed |
＞ 1 50 sheets/second (peak value) |
|
regional support |
The United States, Canada and other regions that comply with the US FCC Part 15 regulations Europe and other regions complying with ETSI EN 302 308 norms China, India, Japan, Korea, Malaysia, Taiwan |
|
electricity gas ginseng number |
|
|
CPU control chip |
ARM (Cortex-M3) |
|
Interface Type |
RJ45, RS485, RS232, Wiegand 26/34 interface standard configuration, and (wireless WIFI, Bluetooth) optional; |
|
4G communication |
optional features |
|
bluetooth communication |
Bluetooth 4.2 (optional) |
|
WiFi |
IEEE802.11b/g/n (optional) |
|
serial speed |
Rate 9600～115200bps |
|
RJ45 |
10Mbps |
|
GPI0 interface |
2 input, 1 output |
|
Reliable Firmware Upgrades |
Scalable upgrade mechanism ( remote OTA) |
|
application |
Provide API development kits and application routines based on Windows, Android , and system platforms |
|
Card Reader Tips |
Buzzer, LED |
|
power consumption |
Average power consumption<10W |
|
Power supply (aviation connector) |
Equipped with 220V AC input, +9V/3A DC output power converter |
|
Environmental parameters |
|
|
humidity |
5%RH ～95%RH (non-condensing) |
|
degree of protection |
IECIP65 _ |
|
Operating temperature |
-20ºC～+ 6 5ºC |
|
storage temperature |
-25ºC～+70ºC |
|
Anti-seismic height |
1.2m/6.56ft |
|
lightning protection |
DC ground |
|
physical parameters |
|
|
size |
225 (length)*2 25 (width)* 55 (height)mm (not including mounting bracket and external wiring) |
|
weight |
2 0 00g (including packaging) |
|
shell material |
ABS+PC |
|
Antenna Bracket Material |
Galvanized anti-rust iron |
|
installation method |
pole installation |
|
Radome Color |
ceramic white |
|
Antenna rear cover |
ABS+PC |
|

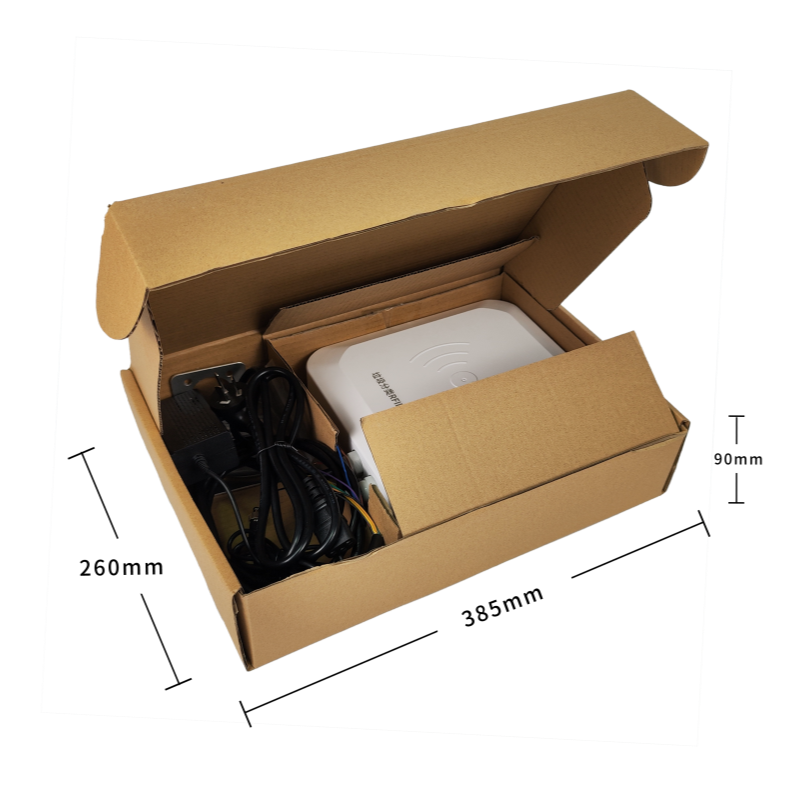

Product acessories |
|
|
Power Adapter Mounting Bracket Communication Cable |
|
