Model: AI-Z09

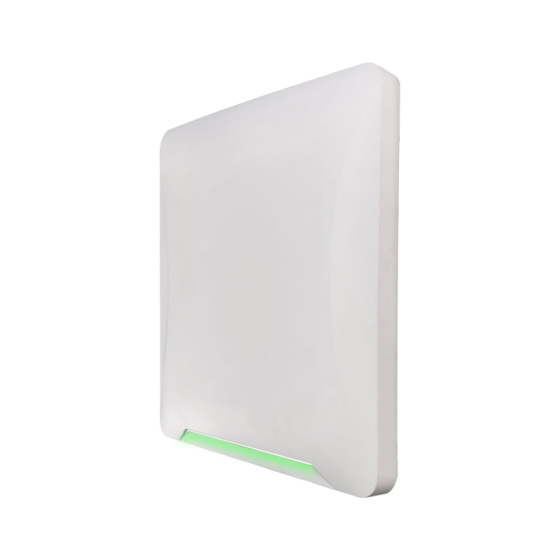

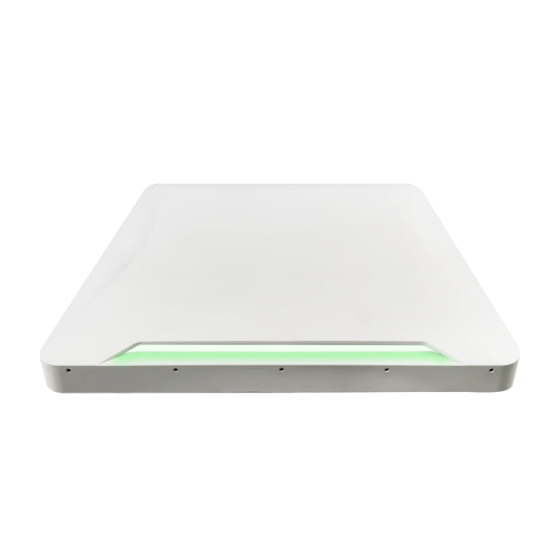

UHF RFID Integrated reader with long LED AI-Z09
$270.00
暂无数据
Chip:
Interface:
Protocol:
Frequency:
Shipping cost within 10kg is $100, and for every additional 1kg, the shipping cost increases by $5
Description
1. IP66 waterproof grade, strong and durable.
2. Support the LED lamp standby status and card status of reading head through the DEMO software.
3. Long distance without parking automatic reading, swipe card distance is far.
Detail
|
Purchase code (product model) |
AI-Z09 |
|
UHF RFID Parameters |
|
|
size |
305*305*67.5mm（±5mm） |
|
Module selection |
AM-5S(27dBm)/AM-61BT(33dBm)/Impinj E710(33dBm) |
|
System options |
Android/Linux/ARM MCU |
|
RF |
Based on VANCH's independent research and development technology |
|
Frequency range |
902～928MHz or 865～868MHz (adjustable by region) |
|
Internal antenna |
8dbi circular polarization antenna |
|
Air interface protocol |
EPC global UHF Class 1 Gen 2/ISO 18000-6C |
|
Output power |
33dBm (±1dBm) adjustable |
|
Reading distance |
＞10m |
|
Writing distance |
>2 meters (depending on the tag and environment) |
|
Multi-tag reading speed |
>850 pages/second (peak value) |
|
Regional support |
US, Canada and other regions following U.S. FCC Europe and other regions following ETSI EN 302 208 China , Korea , Malaysia |
|
Mechanical and electrical performance |
|
|
ARM ST32 MCU |
ARM(STM32F107 Cortex-M3) |
|
Android (optional) |
Qualcomm MSM8909 chip platform |
|
Linux (optional) |
ATMEL AT91SAM9260 CPU,ARM926EJ-S processor |
|
Interface type |
(RJ45, RS485, RS232, Wiegand interface) standard, and (wireless WIFI, Bluetooth) optional |
|
Bluetooth communication |
Bluetooth 4.2 (optional) |
|
WIFI |
IEEE802.11b/g/n (optional) |
|
Serial port rate |
Rate 9600～115200bps |
|
RJ45 |
10Mbps |
|
GPI0 interface |
2-way input, 2-way output |
|
Reliable firmware upgrade |
Extensible upgrade mechanism |
|
Application software |
Provide API development kits and application examples based on Windows, Android, and system platforms |
|
Card reading prompts |
Buzzer, LED |
|
Power consumption |
Average power consumption <10W |
|
Power supply (aviation connector) |
Equipped with a power converter with 220V AC input and +9V/3A DC output |
|
Environmental parameters |
|
|
Humidity |
5%RH ~ 95%RH (non-condensing) |
|
Protection level |
IEC IP67 |
|
Operating temperature |
-20℃~+60℃ |
|
Storage temperature |
-50℃~+70℃ |
|
Fall-to-ground shock resistance |
1.2m/6.56ft |
|
Lightning protection |
DC grounding |
|
Physical parameters |
|
|
Weight |
3.5kg |
|
Shell material |
ABS+PC |
|
Antenna bracket material |
Galvanized anti-rust iron |
|
Installation method |
Pole installation |
|
Radome color |
Ceramic white or warship gray |
|
Antenna rear cover |
Die-cast aluminum alloy |
|

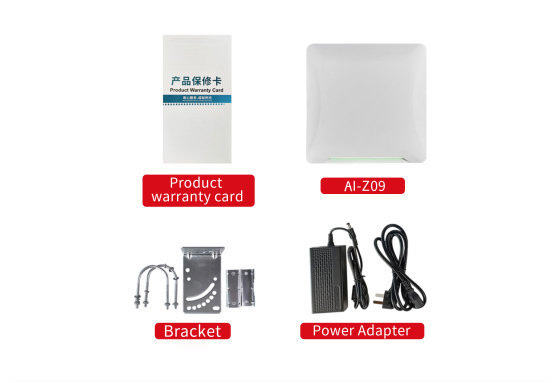

Product accessories |
|
|
Power adapter、Mounting bracket、Communication cable |
|
