Model: AI-047

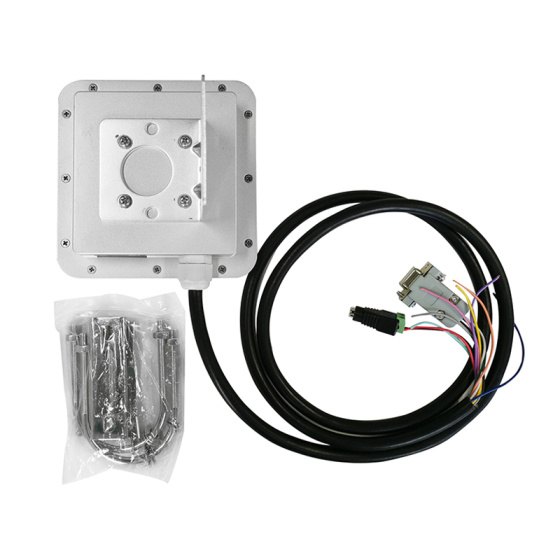

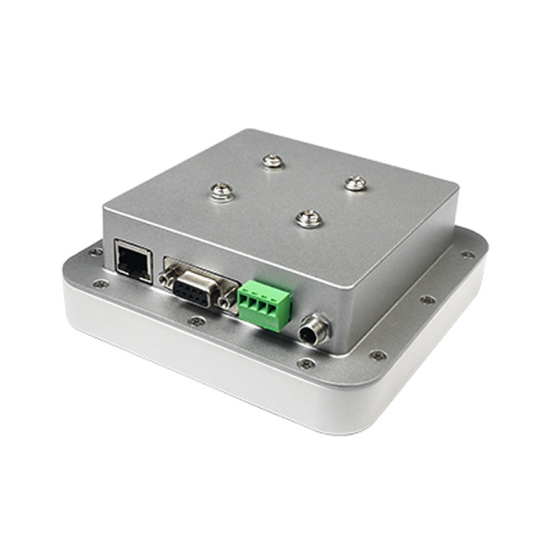

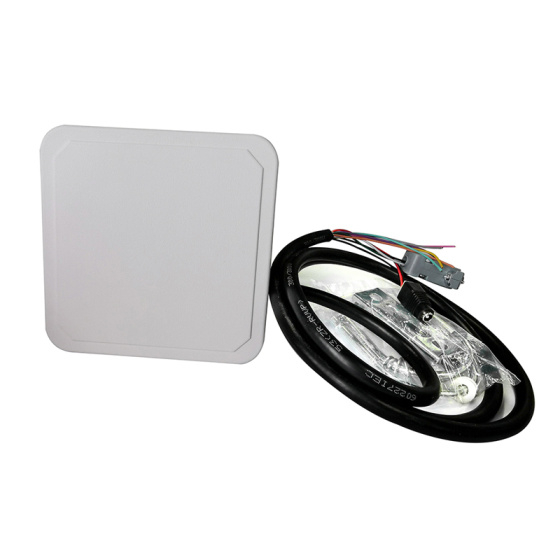

AI-047 Long Range 4dBi UHF Integrated Reader
$105.00
暂无数据
Chip:
Interface:
Protocol:
Frequency:
Shipping cost within 10kg is $100, and for every additional 1kg, the shipping cost increases by $5
Description
RFID reader, integrated antenna integrated design; IP67 protection level, suitable for harsh outdoor environments;
Fully support electronic tags that comply with EPC global UHF Class 1 Gen 2 / ISO 18000-6C standards
Working frequency 860-868MHZ, 902-928MHZ (can be adjusted according to the requirements of different countries or regions).
Fully support electronic tags that comply with EPC global UHF Class 1 Gen 2 / ISO 18000-6C standards
Working frequency 860-868MHZ, 902-928MHZ (can be adjusted according to the requirements of different countries or regions).
Detail
|
Procurement code (product model) |
AI-047S |
|
Performance Parameters |
|
|
Frequency Range |
860Mhz – 960Mhz（Adjustable for different countries or regions） |
|
RFID Module |
AM-5S（Korea PHYCHIPS PR9200） |
|
Working area support |
US, Canada and other regions following U.S. FCC Europe and other regions following ETSI EN 302 208 with & without LBT regulations Mainland China Japan Korea Malaysia Taiwan |
|
FM mode |
Wide spectrum FM (FHSS) or fixed frequency, software settable |
|
Output Power |
27dBm (±1dBm) adjustable |
|
Output Power Adjustment |
1dBm step (set via VANCH software) |
|
Antenna connection protection |
Support |
|
Ambient temperature monitoring |
Support |
|
Number of Antennas |
Built-in 1 SMA interface antenna |
|
Communication Interface |
RS232, RS485 optional TCP network communication |
|
Communication rate |
Serial port rate 9600～115200bps |
|
Reliable firmware upgrades |
Expandable upgrade mechanism |
|
General Purpose Input/Output (GPIO) |
2 inputs; 2 outputs |
|
Application Software Interface |
Provide API development kit and application routines |
|
Tagged Operational Performance |
|
|
Reading Distance |
4dbi antenna configuration, typical read distance 2-3 meters (related to tag performance) |
|
Air Interface Protocol |
EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C |
|
Mechatronic Performance |
|
|
Dimension |
128L)*128(W)*48.5(H)mm (excluding mounting bracket and external wiring) |
|
Power Supply |
＋Power converter with +9V/3A DC output |
|
Packed Weight |
1.8KG |
|
Humidity |
5% to 95%, 5% to 95%, non-condensing |
|
Protection Rating |
IEC IP67 |
|
Operating Temperature |
-20 ºC to +75 ºC |
|
Storage Temperature |
-20°C to 85°C |
