Model: AI-Q047

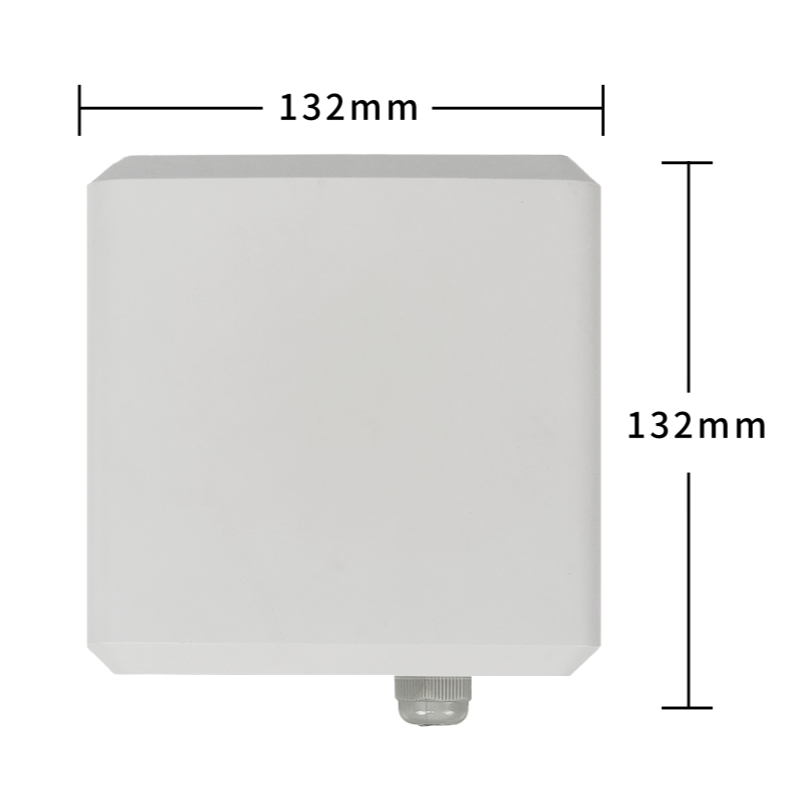

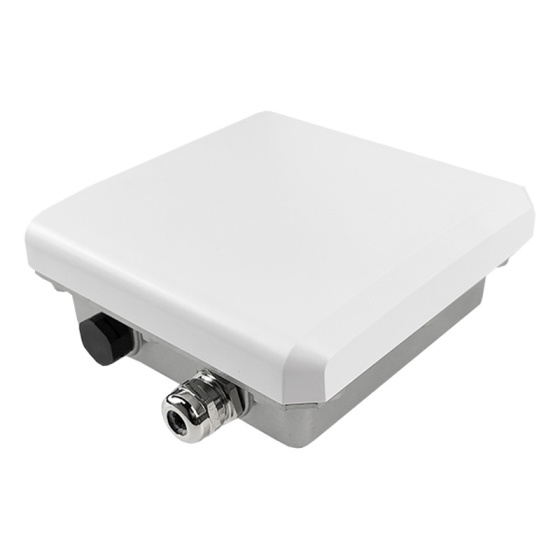

UHF Small waterproof Integrated Reader AI-Q047
$103.00
暂无数据
Chip:
Interface:
Protocol:
Frequency:
Shipping cost within 10kg is $100, and for every additional 1kg, the shipping cost increases by $5
Description
1. It adopts industrial design and ruggedization, which meets the harsh industrial production line environment
2. This RFID module adopts Korean PR9200 or Fudan Micro dedicated UHF RFID chip;
3. It fully supports EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C compliant tags;
4. It works at frequency 865～868MHZ, 902～928MHZ (can be adjusted according to the requirements of different countries or regions);
5. It supports VANCH VUP protocol, supports ModbusTCP, ModbusRTU protocol, supports TCP/UDP protocol;
6. It reads the card distance can be controlled in 300mm～4000mm arbitrary setting.
Detail
|
Procurement code (product model) |
AI-Q047 |
|
Performance Parameters |
|
|
RF Chips |
Korea PR9200 or Fudan Micro dedicated RF chip |
|
Air Port Protocol |
EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C |
|
Operating Frequency |
902~928MHz or 865~868MHz |
|
RF Output Power |
13~30dBm±1dBm |
|
Receiving sensitivity |
<-70dBm |
|
Peak speed of inventory tag |
＞200 times/sec |
|
Read distance |
300~400cm (depending on tag) |
|
Write Distance |
0~200cm (related to reader parameter configuration, antenna gain, tag type) |
|
Tag RSSI |
Support |
|
Support Area |
The United States, Canada and other regions in line with the U.S. FCC Part 15 specification Europe and other regions compliant with ETSI EN 302 308 specifications China, India, Japan, Korea, Malaysia, Taiwan |
|
Antenna |
6dbi circularly polarized antenna |
|
Communication Interface |
RJ45, RS232, RS485 |
|
Communication Protocol |
ModbusTCP, ModbusRTU, TCP/UDP protocols |
|
WiFi (optional) |
Support IEEE 802.11 n/b/g |
|
Heater (optional) |
Low-temperature automatic heating (-5 °) optional (according to the project site environment to determine) |
|
Communication rate |
Serial communication rate 9600～115200bps, RJ45 communication rate 10/100Mbps |
|
Operating status |
Buzzer |
|
Reliable firmware upgrade |
Expandable upgrade mechanism |
|
General purpose inputs/outputs (GPIO) |
2 inputs and 2 outputs |
|
Application software interface |
Provide API development kit and C and Java application routines |
|
Mechatronic Performance |
|
|
Dimension |
133(L)*133 (W)*51.8(H)mm |
|
Power supply |
Operating voltage DC9~24V |
|
Power Consumption |
Maximum power consumption 3W, maximum starting current 1A |
|
Communication Harness |
Industrial connection tail line one tow five |
|
Weight |
Approx. 1.5 kg (complete set) |
|
Humidity |
5% ~ 95%, non-condensing |
|
Protection Rating |
IEC IP67 |
|
Operating Temperature |
-40ºC ~ +85ºC |
|
Storage Temperature |
Normal temperature |
