Model: AH-75

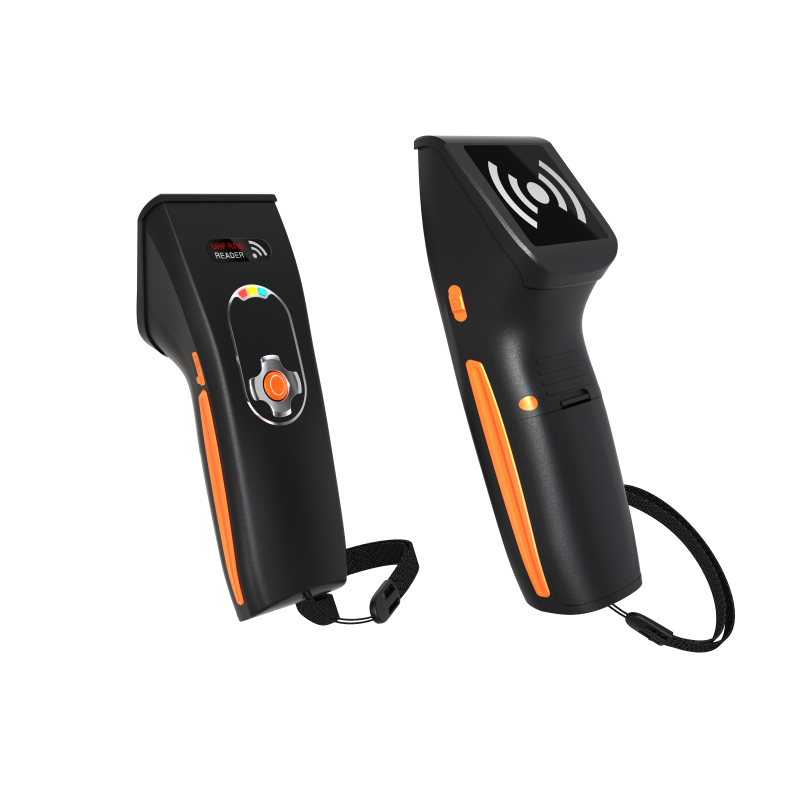

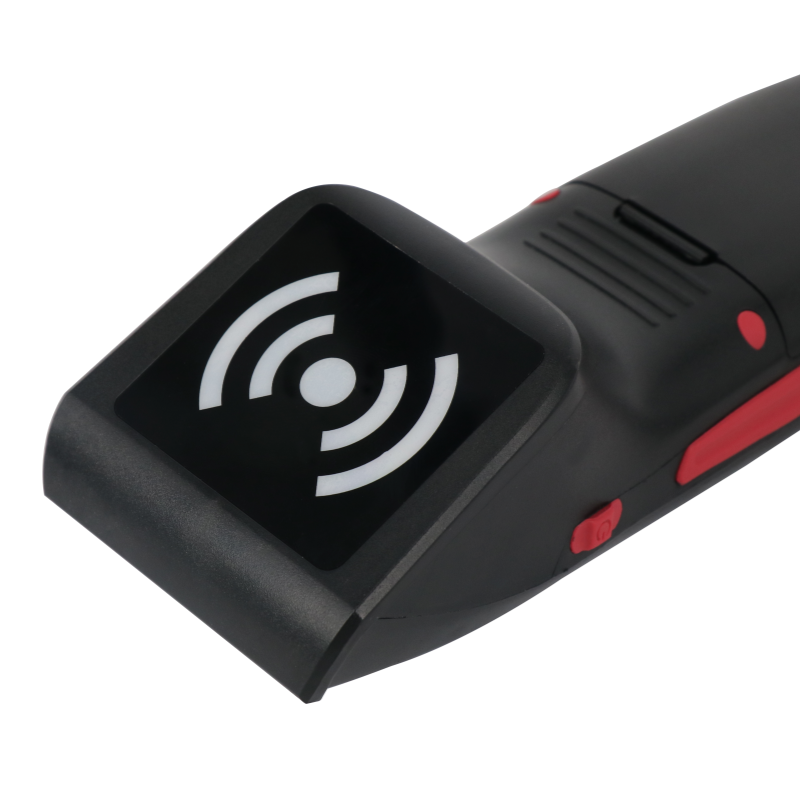

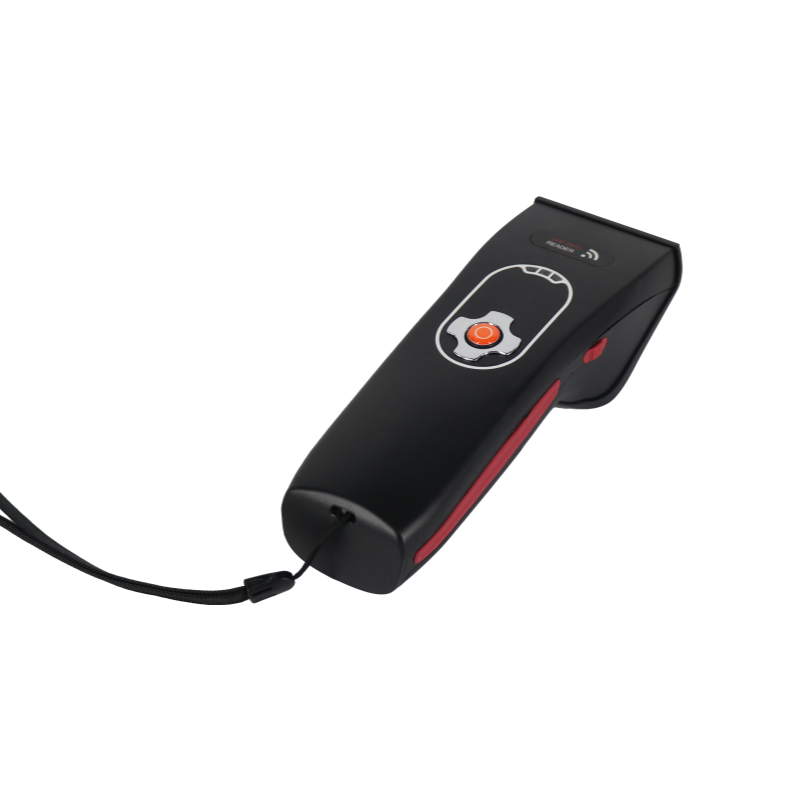

Bluetooth UHF RFID Handheld Reader AH-75
$139.00
暂无数据
Communication:
Data Collection:
Frequency:
Shipping cost within 10kg is $100, and for every additional 1kg, the shipping cost increases by $5
Description
1. UHF reading distance 2～2.5 meters（test tag：Impinj E41b）；
2. Online use of Bluetooth communication with existing PDAs, smartphones, tablets, etc. reduces the cost of repeated purchases；
3. Support ISO-18000-6B, ISO-18000-6C (EPC G2) protocol tag reading and writing；
4. Easily confirm the reading tag while confirming and viewing on the PDA screen；
5. Low cost, more cost-saving than PDA integrated handheld reader.
Detail
|
Model No. |
AH-75/AH-75T |
|
UHF RFID Parameter |
|
|
RF module |
AM-5GA |
|
Frequency |
902～928MHz,865～868MHz |
|
Built-in Antenna |
2dbi circular polarization ceramic antenna |
|
Protocol |
EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C |
|
Output power |
18～26dBm adjustable ±1dBm |
|
R/W distance(VH-75) |
Read distance 2～2.5m，write distance>20cm（test tag：Impinj E41b） |
|
R/W distance(VH-75T) |
Read distance >5m，write distance>20cm（test tag：Impinj E41b） |
|
Multi-tag reading speed |
＞50 tags/s（peak value） |
|
Support areas |
U.S., Canada, and other regions that comply with U.S. FCC Part 15 regulations Europe and other regions that comply with ETSI EN 302 308 China, India, Japan, South Korea, Malaysia, Taiwan |
|
Electrical Parameter |
|
|
CPU control chip |
ARM（STM32F103） |
|
Tag ID storage |
128MB(NandFlash) |
|
USB interface type |
Micro-B，USB2.0 |
|
Wireless communication |
Bluetooth 4.0 |
|
Communication rate |
9600～115200bps， |
|
Reliable firmware upgrade |
Scalable upgrade mechanism |
|
Application software interface |
Provide API development kits and application routines based on Android and Apple iOS system platforms |
|
Tag reading indicator |
Vibration motor、Buzzer、LED |
|
Standby time |
150 hours |
|
Battery |
Rechargeable lithium battery（3.7V,4000mAH） |
|
Environment Parameter |
|
|
Humidity |
5%RH ～95%RH(non-condensing) |
|
Protection level |
IEC IP64 |
|
Operating temperature |
-20ºC～ +60ºC |
|
Storage temperature |
-25ºC～+70ºC |
|
Earthquake resistant height |
1.2m/6.56ft |
|
Physical Parameter |
|
|
Size |
180(L)*65 (W)*65(H)mm |
|
Net Weight |
250g（Including battery） |
|
Shell Material |
ABS+PC |
