Model No.

AH-D86G

User Environment

Operating Temp.

-20~50℃

Storage Temp.

-40~60℃

Charging Temp.

0~45℃

Humidity

5%~95% (non-condensing)

Sealing Standard

IP67

Drop Specification

multiple 1.2 m drops to tile over concrete at room

temperature without protective boot

Tumble

Specification

600 drops (300 cycles) 0.5m tumbles at room temperature without protective boot

ESD

+/-8KV direct discharge, +/-15KV air discharge

UHF

▪ Frequency: 902~928MHz, 865~868MHz (Optional)

▪ Engine: Based on Impinj E710

▪ Protocal: EPC Global UHF Class 1 Gen 2/ ISO 18000-

6C/ISO 18000-6B

▪ UHF Antenna: 4.5dBi air dielectric antenna

▪ Sensitivity:＜-85dBm

▪ Output Power: 0~33dbm

▪ Read Distance: ＞14m

▪ Peak Inventory Speed: ＞900pcs/s

▪ Supported Regions: China, Korea, Malaysia, Japan US,

Canada and other regions following U.S. FCC Europe and other regions following ETSI EN 302 208

Physical Characteristics

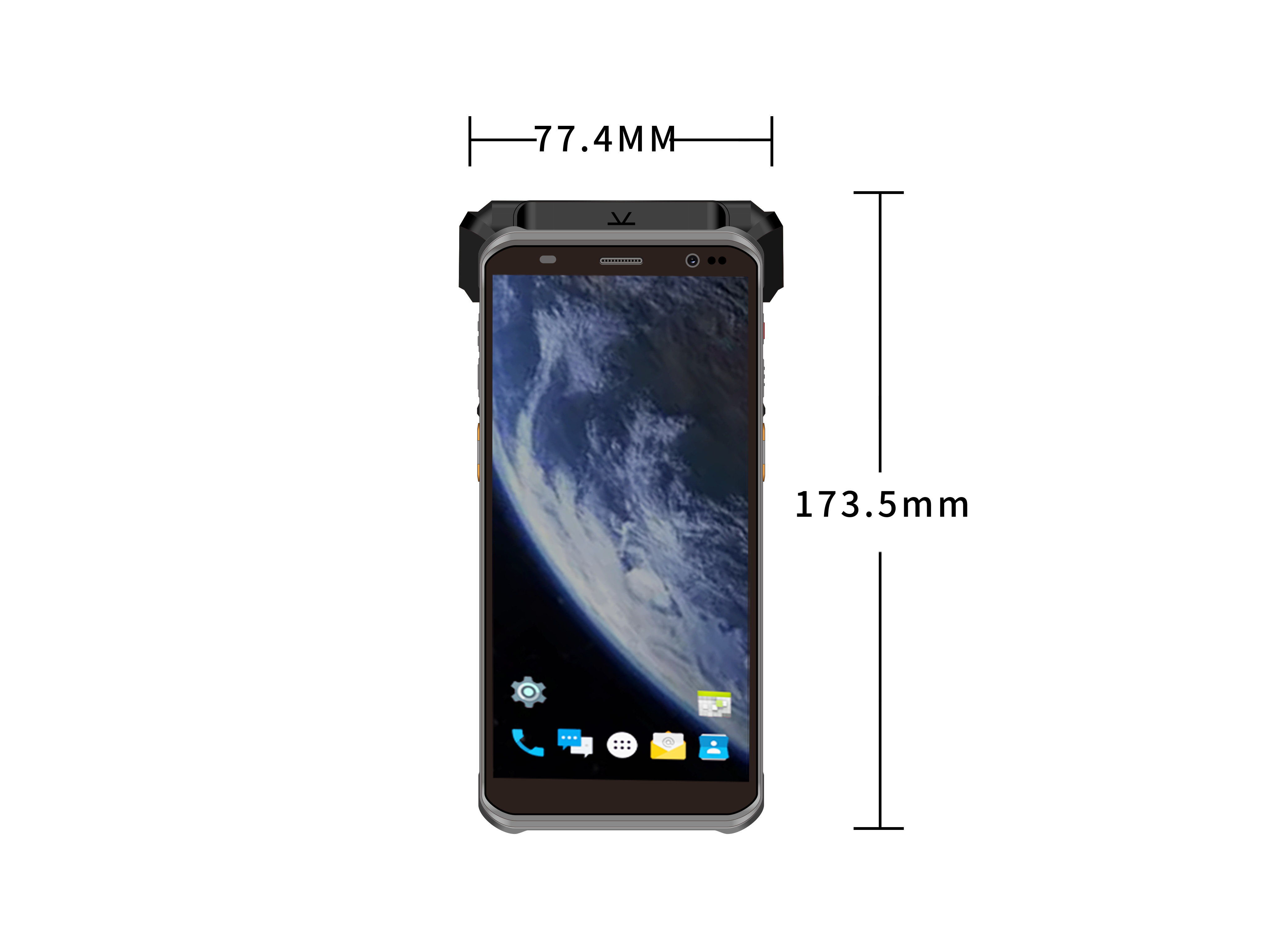

Dimensions

173.5 (H)×77.4(W)×25(T)mm

6.83(H)×3.05(W)×1.0 (T)inch

Weight

20 oz./567 g

Display and Panel

▪ 6 in. 2160(H)×1080(W) FHD+ (450nit) industrial-grade IPS display

▪ Corning® Gorilla® Glass

▪ Capacitive touch panel, Support Water & Gloves Touch Mode

Keys and Buttons

▪ Front key: 3 touch soft keys

▪ Side key: Scan key left and right, volume key up and

down, power key and one function key (programmable)

Indicators and

Notifications

▪ 2x Multi-color LEDs supported (1x green/red LEDs,

1xgreen/blue LEDs)

▪ Audible tone

▪ Vibration

Expansion Slots

▪ One user accessible micro SD Memory slot with SDHC compliance, 512GB

▪ Two user accessible Na no SIM slots or one na no SIM slot and one e SIM(Optional).

▪ 1xPSAM

▪ USB 2.0 (type-C) support USB OTG

▪ Support DC in 5V/3A

▪ Extend pogo pin (4Pin)

DCIN, GND, USBDP, USBDM

DCIN &GND: Current rating: 3A

Battery

▪ Removable & Rechargeable 3.85V 10000mAh Li-ion

Polymer battery pack

▪ Warm Swap battery mode up to ten minutes

Power Adapter

▪ 100~240Vac, 50/60Hz Input

▪ 9V/2A 18W output

Network Connection

Wireless PAN

Bluetooth 5.1

Wireless LAN

▪ IEEE 802.11 ac/a/b/g/n/ax ready/d/e/h/i/j/k/r/v/w

(2.4G/5G Dual band Wi-Fi)

▪ Compliant with WEP, WPA/WPA2-PSK, WAPI, WAPI-PSK

▪ EAP: EAP-TLS, EAP-TTLS, PEAP-MSCHAPv2, PEAP-

Wireless WAN

▪ TDD-LTE(B34/B38/B39/B40/B41)

▪ FDD-LTE(B1/B2/B3/B4/B5/B7/B8/B9/B12/B13/B17/B19/

B20/B25/B26/B28A/B28B/B30/B66)

▪ WCDMA(B1/B2/B4/B5/B6/B8/B9/B19)

▪ TD-SCDMA(B34/B39)

▪ CDMA2000 1x EV-DO Rev.A BC0 (800MHz)

▪ CDMA 1x

▪ GSM/EDGE/GPRS(850/900/1800/1900)

GPS

GPS, Glonass, Beidou, Galileo

Data Capture

Scan Engine

▪ Honeywell: N6703/N6603/HS7

▪ Zebra: SE4770/SE4720/SE4710

▪ MinDeo: ME5066/ME8600

▪ Newland: CM60

Camera

▪ Front camera : 5M pixel CMOS color camera

▪ Rear camera : 13M pixels CMOS color camera with PDAF

▪ LED flash light with torch

NFC (Optional)

High RF output power; ISO15693, ISO14443A/B, MIFARE:

Mifare S50, Mifare S70, Mifare UltraLight, Mifare Pro,

Mifare Desfire, FeliCa Supported cards

Sensor

Light sensor, Proximity sensor, Accelerator sensor, e-

Compress, Gyroscope, Fingerprint Sensor(Optional)

Accessories

Accessories

▪ Adapter

▪ USB Charging Cable (Type C)

▪ Spare Battery (Optional)

▪ Cradle (1 Terminal) (Optional)

▪ Cradle (4 slot for Battery)(Optional)

▪ OTG Cable (Optional)

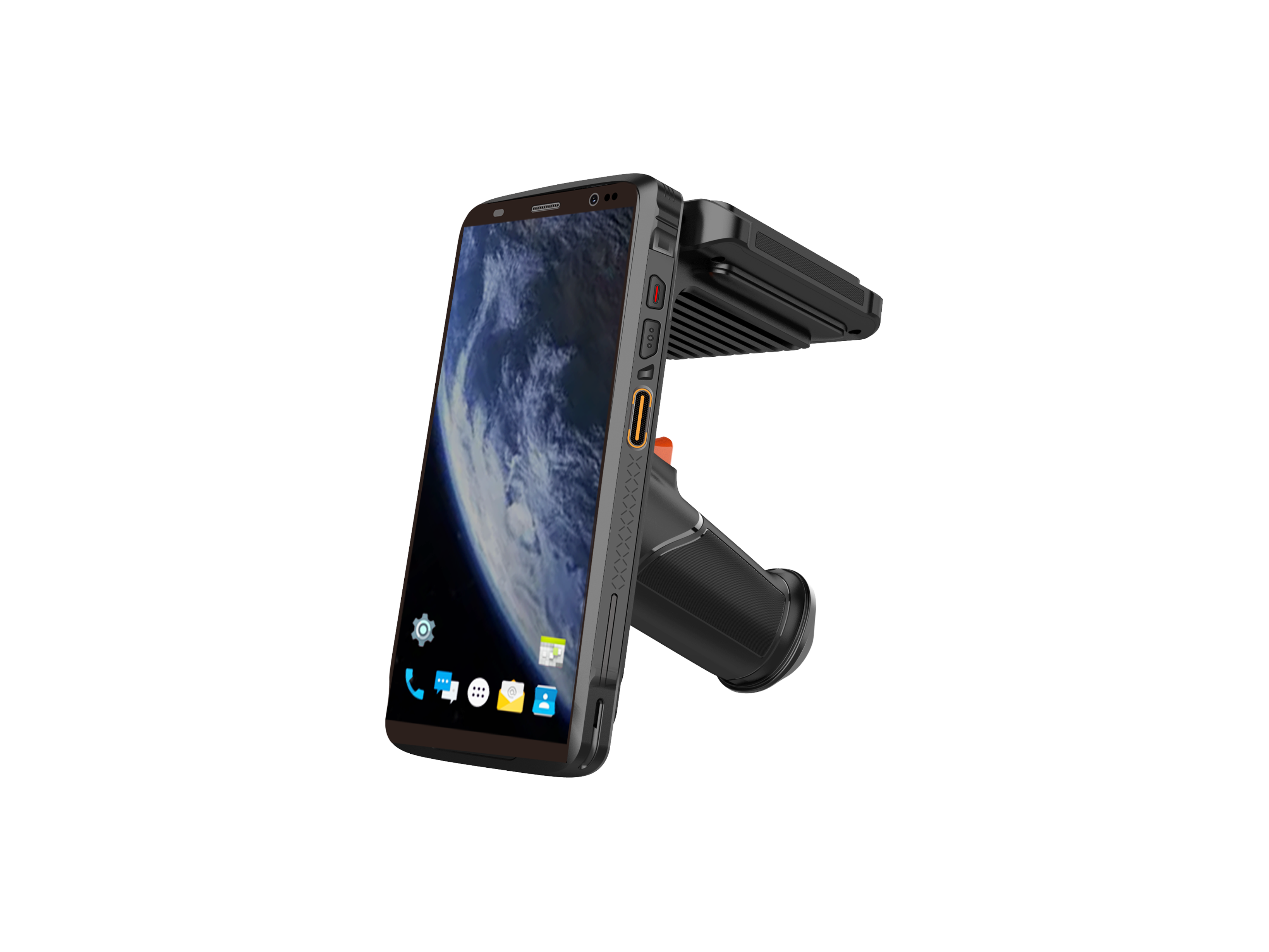

▪ Pistol-grip trigger handle (Optional)
