Model: AH-C83

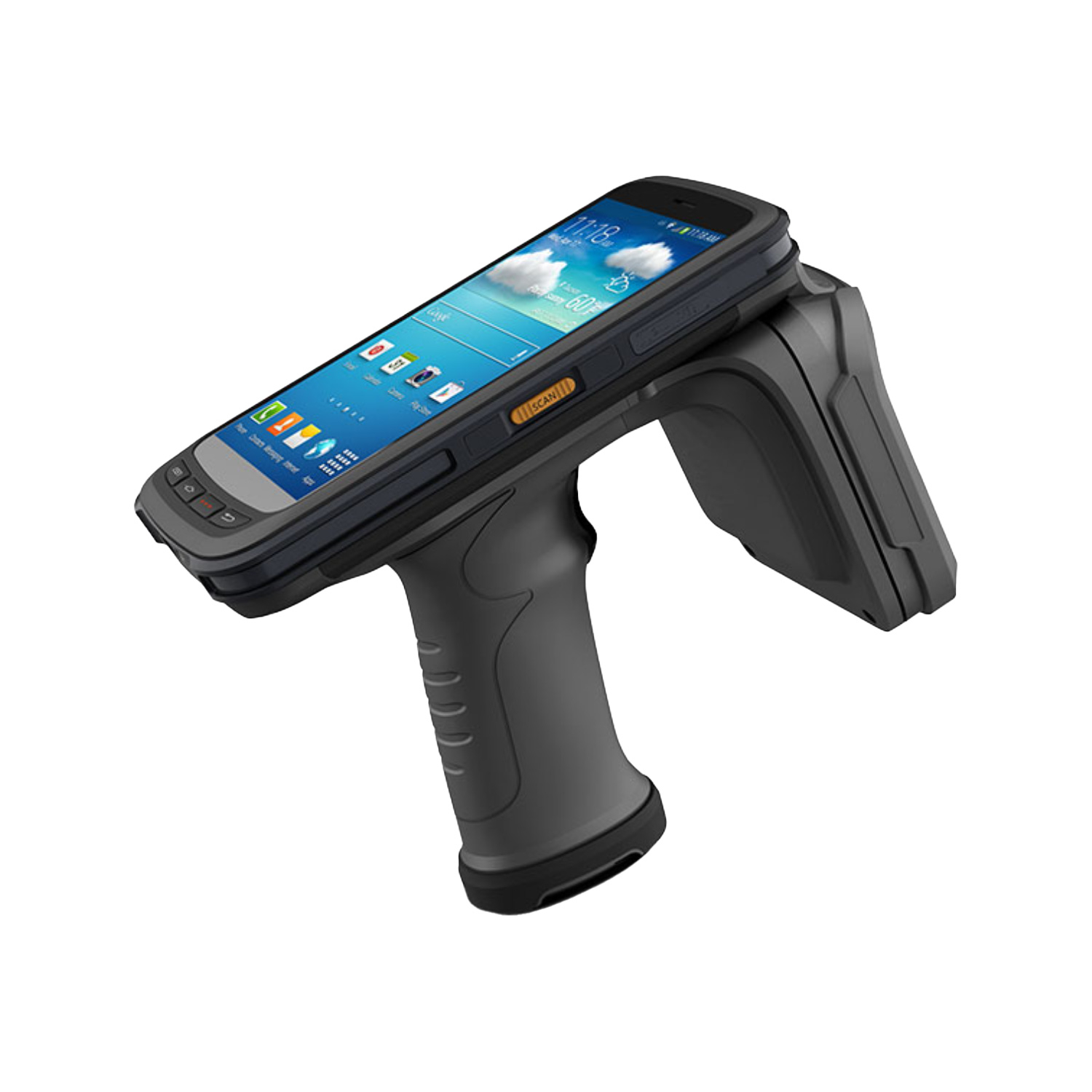

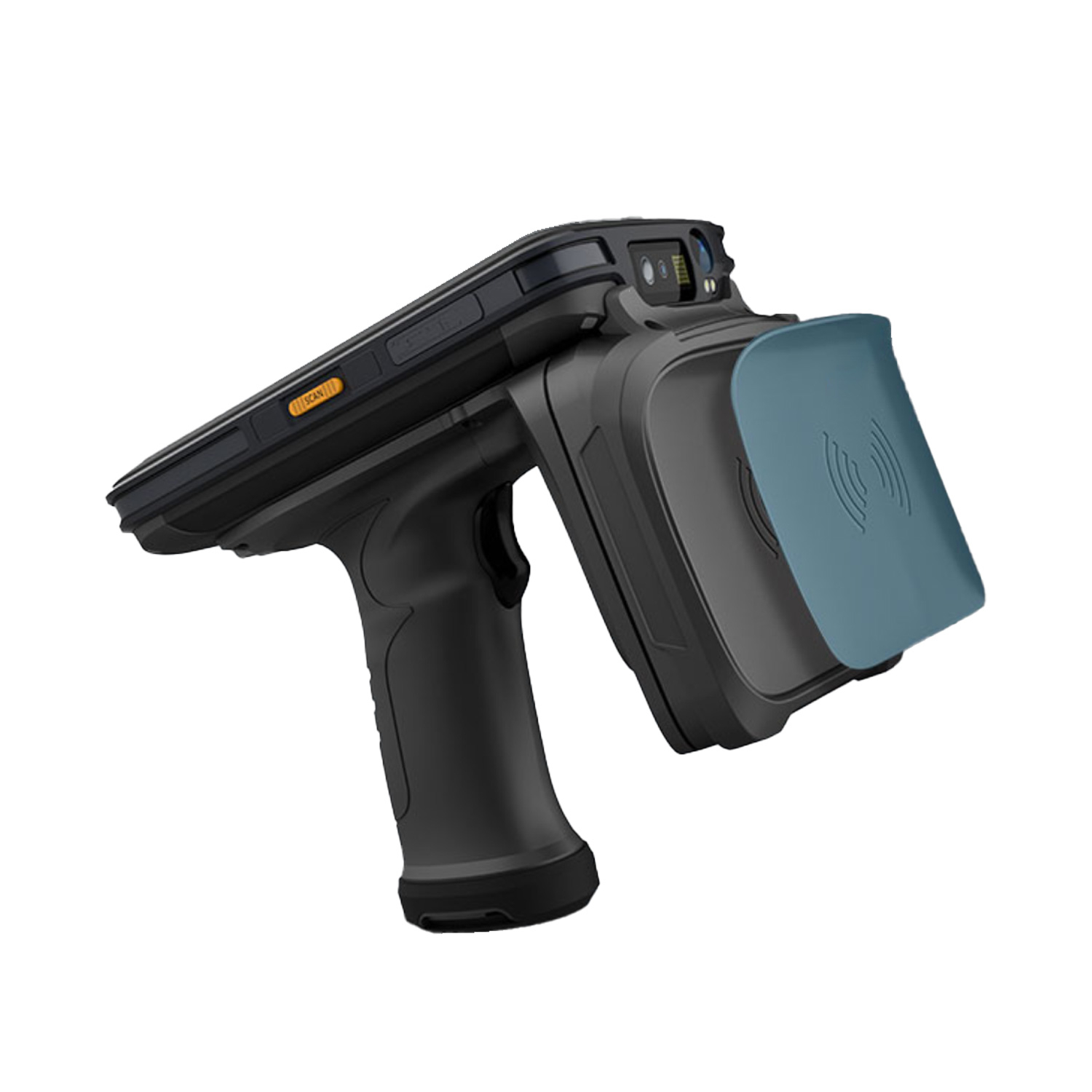

UHF RFID Long-distance handheld reader AH-C83
$609.00
暂无数据
Communication:
Data Collection:
Frequency:
Shipping cost within 10kg is $100, and for every additional 1kg, the shipping cost increases by $5
Description
AH-C83 is a high-performance UHF smart handheld terminal that integrates powerful UHF RFID functions. It uses a self-developed UHF module based on the lmpinj E710 chip and supports lmpinj Gen2X, which makes data collection more accurate and faster, and has a wide reading range, with a reading distance of up to 30 meters in an open outdoor environment. It also supports optional barcode functions, uses an eight-core processor, has diverse functions, and is fully configured. In addition, it has a large-capacity battery of up to 8000mAh, which perfectly adapts to the needs of high-intensity data collection applications and is widely used in asset management, clothing inventory, vehicle management, highway toll collection, warehouse management, financial management and other fields.
Detail
|
Purchase code (product model) |
AH-C83 |
|
Physical parameters |
|
|
Overall dimensions |
164.2X80X24.3mm |
|
Overall weight |
654 g |
|
Display screen |
5.2 inches, IPS LTPS 1920X1080 resolution |
|
Touch screen |
Corning Gorilla Glass, supports multi-touch, supports gloves or wet hands |
|
Battery capacity |
Rechargeable lithium polymer battery 8000 mAh Standby time > 500 hours Working time > 12 hours (depending on usage and network environment) Charging time 3-4 hours (using standard power adapter and data cable) |
|
Expansion Socket |
2, 1 Nano SIM card slot, 1 Nano SLM or TF card slot |
|
Communication Interface |
USB 2.0 Type-C, OTG, supports Type-C headphones |
|
Audio |
1 microphone, 1 speaker; earpiece |
|
Keyboard |
4 main keyboards, 1 power button, 2 scanners, 1 multi-function button |
|
Sensor |
Light sensor, distance sensor, gravity sensor |
|
Notification |
Sound, LED indicator |
|
Performance Parameters |
|
|
CPU |
Octa-core 2.3GHz |
|
RAM-ROM |
3GB+32GB/4GB+64GB/6GB+128GB |
|
Extended memory |
MicroSD (TF) card can be expanded to 256GB |
|
Development Environment |
|
|
Operating system |
Android 11/13 |
|
SDK |
Terminal Software Development Kit |
|
Voice development |
Java |
|
Development tools |
Eclipse / Android Studio |
|
Usage Environment |
|
|
Operating temperature |
-20°C to 50°C |
|
Storage environment |
-40°C to 70°C |
|
Ambient humidity |
5%RH-95%RH (non-condensing) |
|
Drop test |
Within the operating temperature range, all 6 sides can withstand multiple drops from a height of 1.5 meters to the concrete floor |
|
Rolling test |
Rolling continuously for 1000 times 0.5 meters, 6 contact surfaces still run stably after rolling, meeting IEC rolling specifications |
|
Protection level |
IP67, meets IEC sealing standards |
|
Electrostatic discharge |
±15KV air discharge, ±6KV contact discharge |
|
NFC (optional) |
|
|
Working frequency |
13.56MHz |
|
Protocol standard |
ISO14443A/B,ISO15693,NFC-IP1, NFC-IP2, etc. |
|
Tag standard |
M1 card (S50, S70), CPU card, NFC tag, etc. |
|
Read and write distance |
2-4cm |
|
Note |
*This function is optional |
|
Camera |
|
|
Camera |
13-megapixel color camera with auto focus and flash |
|
Data Communications |
|
|
WLAN |
Support IEEE802.11 a/b/g/n/ac protocol (2.4G/5G dual-band); built-in antenna |
|
WWAN |
2G:GSM850/GSM900/DCS1800/PCS1900 3G:WCDMA: B1/B2/B4/B5/B8 CDMA2000 EVDO: BCO TD-SCDMA:A/F 4G:B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28AB28B/B34/B38/B39/B40/B41 |
|
Bluetooth |
Bluetooth 5.0 |
|
GNSS |
Integrated GPS, Beidou, GLONASS, built-in antenna, support AGPS |
|
RFID UHF (optional) |
|
|
Engine |
Based on lmpinjE710 chip |
|
China frequency |
920-925MHz |
|
US frequency |
902-928MHz |
|
European frequency |
865-868MHZ (ETSI EN 302 208) |
|
Other frequencies |
Other multinational frequency standards (customizable) |
|
Impinj Gen2X |
Support |
|
Protocol standard |
EPC C1 GEN2/ISO18000-6C |
|
Antenna parameters |
Circularly polarized antenna (4dBi) |
|
power |
1W (30dBm, supports +5dBm~+30dBm adjustment) Optional 2W (33dBm, for Latin America, etc.) |
|
Max card reading distance |
26m (lmpinj MR6 tag, size 70x15mm) 28m (lmpinj M750 tag, size 70 x15mm) 30m (Alien H3 anti-metal tag, size 130x42mm) |
|
Note |
*The above card reading distance is measured in an open outdoor low-interference environment, and the group reading rate is measured in a laboratory low-interference environment. The actual use is related to the environment and tags. |
|
Barcode Collection |
|
|
1D scanning engine |
Honeywell N4313 |
|
2D scanning engine |
Zebra:SE4710/SE4750SR/SE4750MR/SE4750DP;Honeywell: N6603;CM60: CB300 |
|
Supports 1D barcode types |
UPC/EAN, Code128,Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar MSI.RSS,etc) |
|
Support 2D barcode types |
PDF417,MicroPDF417,Composite, RSS, TLC-39, Data matrix,QR code, Micro QR code, Aztec, Maxi Code; Postal Codes: US Post Net, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KlX)etc. |
|
Note |
*This function is optional |
