Model: AH-88Pro

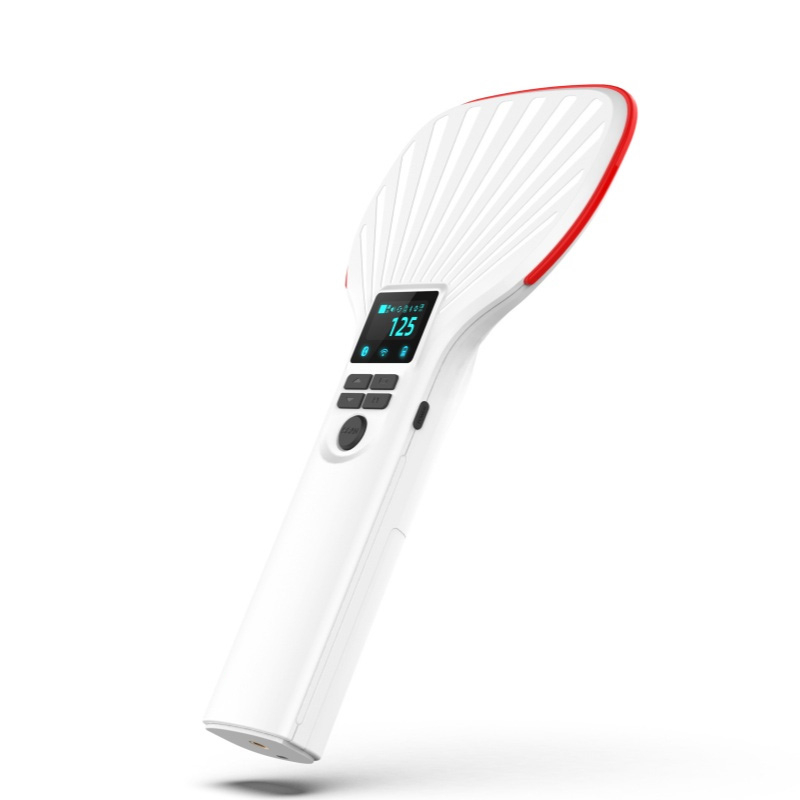

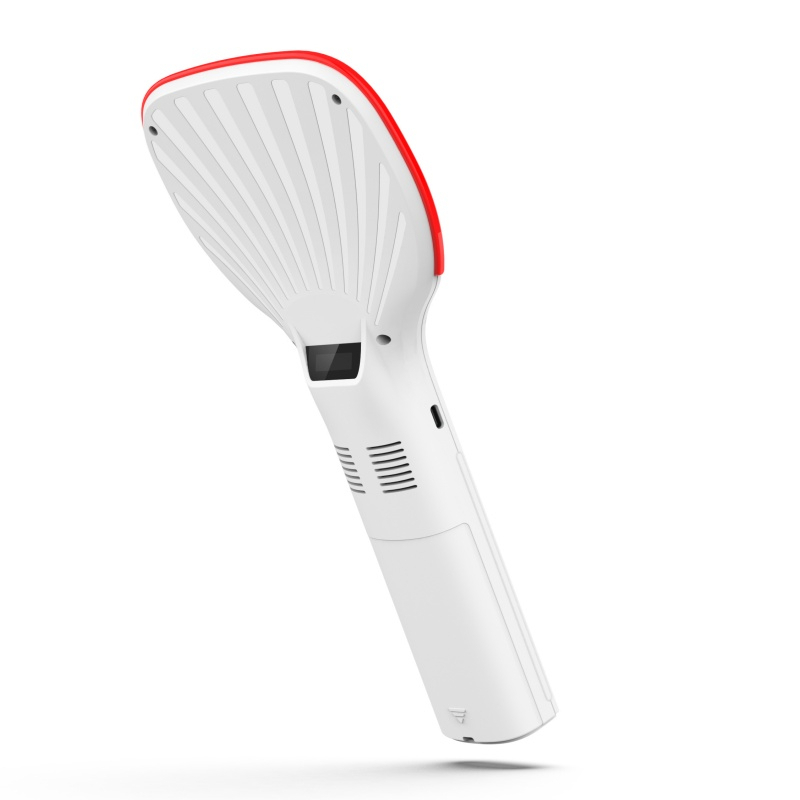

Bluetooth UHF RFID Handheld Reader AH-88Pro
$270.00
暂无数据
Communication:
Data Collection:
Frequency:
Shipping cost within 10kg is $100, and for every additional 1kg, the shipping cost increases by $5
Description
It is integrated with Impinj E710 RF IC and 2D barcode scanner.
It use 1.3 inch OLED display and adopt 6800 mAH battery
It can read 10 meters and 100 pcs tags/second,
It support to work with Android OS and iOS smart phone.
It is widely applied in retail and library book inventory
It use 1.3 inch OLED display and adopt 6800 mAH battery
It can read 10 meters and 100 pcs tags/second,
It support to work with Android OS and iOS smart phone.
It is widely applied in retail and library book inventory
Detail
|
Model |
AH-88pro |
|
Data collection |
|
|
UHF RFID IC |
AM-61E（E710） |
|
Frequency |
920-925MHz，865-868MHz，902-928MHz (It can be adjusted with different countries or regions) |
|
Protocol |
ISO 18000-6C/EPC C1 GEN2 |
|
Frequency adjustment method |
Frequency frequency or fixed frequency, software settings |
|
Output RF power |
AM-61E module, 1W (30dbm, support+5 ~+30dbm adjustable) Optional 2W (33dbm, for Latin American, etc.) |
|
Reading distance |
Impinj E710 IC： 26m (Impinj MR6 tag，size 70 x 15mm) 27m (Impinj M750 tag，size 70 x 15mm) 31m (Alian H3 tag，size 130 x 42mm) |
|
Multi tag reading |
It can reach 900 TAGS/s, (with AZ9662 as a reference) |
|
* |
The above card reading is measured in an interference environment in the outdoor emptiness, and the group reading rate is low in the laboratory Testing in the environment, the actual usage is related to the environment and label |
|
Antenna |
High -gain PCB antenna |
|
Newland M1（2D barcode engine） |
Support support one -dimensional barcode type, support two -dimensional barcode types |
|
Zebra （2D barcode engine） |
Support support one -dimensional barcode type, support two -dimensional barcode types |
|
Communication |
|
|
Bluetooth |
BLE 5.1 |
|
Interface |
Type-C |
|
Electrical parameter |
|
|
Display |
1.3 inch White OLED |
|
Button |
A total of 6 scanned keys, power keys, menu keys, etc. |
|
Storage memory （NAND FLSAH） |
128MB or 512MB (optional) |
|
Tag storage capacity（SRAM） |
30,000 or 60,000 (optional) data cache |
|
Card Reading Tips |
Bee Narrator, LED |
|
Battery specification |
Lithium battery (3.7V, 6800mAh) removable |
|
Charger |
Input power: AC100 ~ 240V, 50 ～ 60Hz Output power: adaptive fast charge protocol 12V, 2.0A/buffer 2 hours |
|
Physical parameters |
|
|
shell material |
ABS+Gragon |
|
color |
Milky |
|
size |
280 (long)*140 (width)*34 (height) mm |
|
weight |
Up to 320g (including battery) |
|
Use environment |
|
|
Humidity |
5% to 95%, Non -condensation |
|
Protection level |
IEC IP65 |
|
Operating temperature |
-20 ºC to +60°C |
|
storage temperature |
-25°C to +75°C |
|
Static Protection |
± 15kv air discharge, ± 8kv contact discharge |
|
Development environment |
|
|
SDK |
Support Android / IOS |
|
Development language |
Java / Objective-C |
|
Development tools |
Android Studio / Xcode |
|

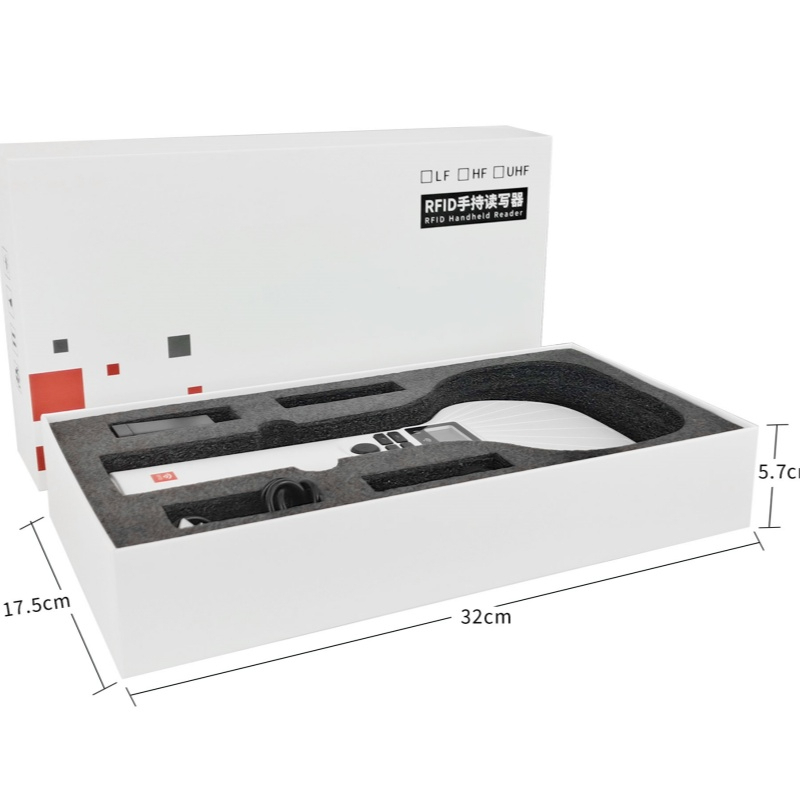

appendix |
|
|
Standard |
Can recharge lithium batteries, portable charging heads, USB charging cable and data cable |
