Model: AH-H83

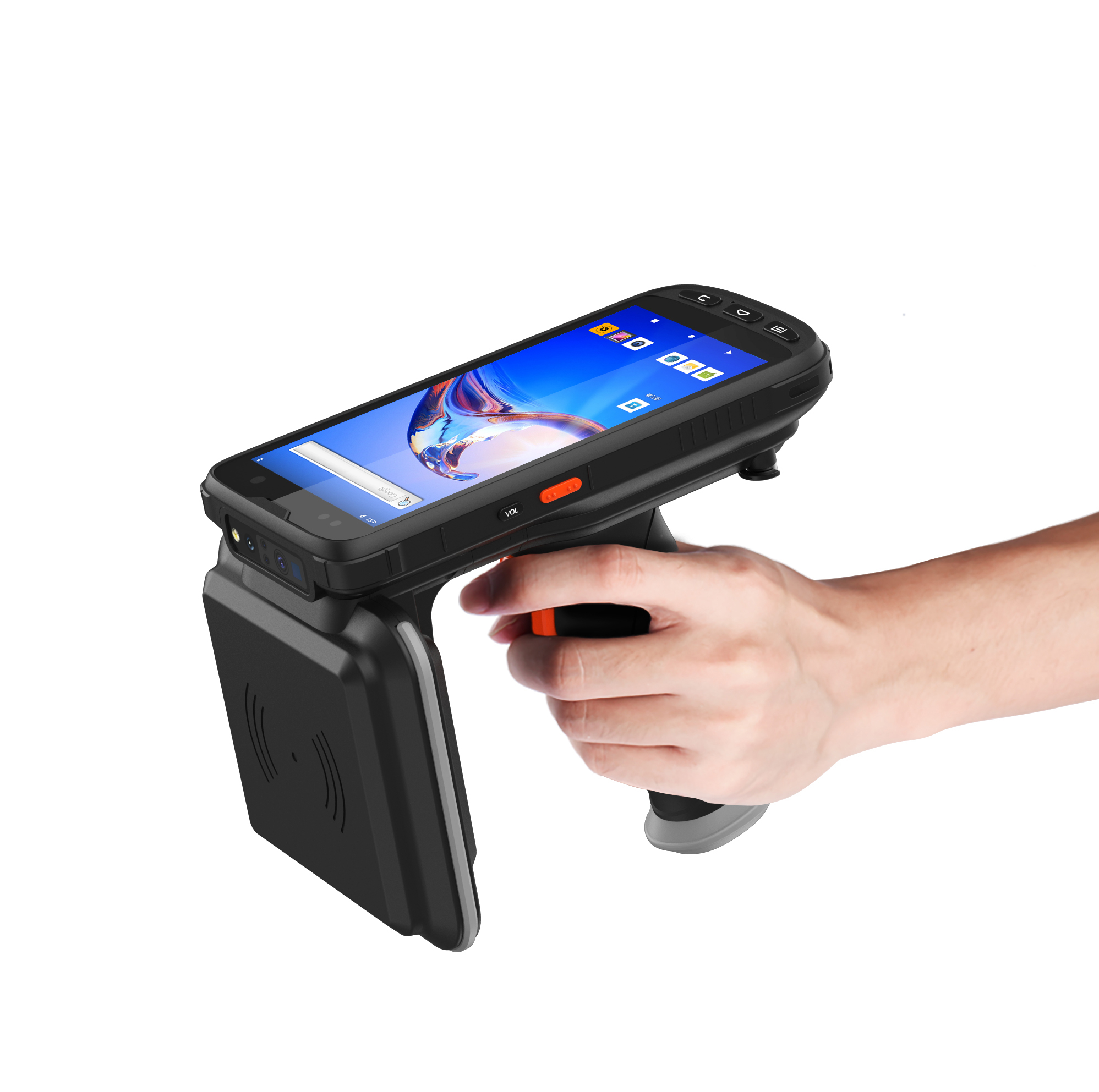

Ultra Long Range UHF RFID Handheld Reade AH-H83
$530.00
暂无数据
Communication:
Data Collection:
Frequency:
Shipping cost within 10kg is $100, and for every additional 1kg, the shipping cost increases by $5
Description
1. Industry-leading flagship eight-core CPU runs at extremely high speed, with a main frequency of 2.0GHZ;
2. A new generation of self-developed high-performance four-arm helical antenna;
3. Excellent RFID reading and writing performance and multi-tag inventory capabilities;
4. 9000mAh large-capacity polymer lithium battery, long-lasting battery life;
5. Efficient QR code scanning engine/Type-c data interface.
Detail
|
Model# |
AH-H83 |
|
Performance Index |
|
|
Dimension |
166*79*31±2mm（excluding shield and handle） |
|
Net weight |
650g |
|
Display screen |
5.5 inch IPS HD screen，resolution 720*1440 |
|
Touch screen |
Corning gorilla three generation industrial grade multi-touch capacitive screen |
|
Expansion slot |
1 Sim card slot（MUP-C785） 1 TF card slot 1 PSAM card slot（MUP-C785） |
|
Communication interface |
1 Type-c interface |
|
Indicator light |
Network indicator light，charging indicator light |
|
Keyboard |
Scan key, Function key |
|
Navigation |
GPS/Beidou positioning system, error range ±5m |
|
CPU |
MT6771 octa-core 64-bit processor Four large core A73+four small core A53，main frequency 2.0GHz |
|
Memory |
RAM：2GB ROM：16GB (standard） RAM：4GB ROM：64GB (optional） |
|
OS |
Android9.0 |
|
Expanded memory |
Support 256GB Micro SD card |
|
Data Communication |
|
|
4G |
TD-LTEBand38/39/40/41FDD-LTEBand1,2,3,4,7,17,20 |
|
3G |
WCDMA(850/1900/2100MHz); |
|
2G |
GSM/GPRS/Edge（850/900/1800/1900MHz） |
|
WIFI |
2.4G/5G dual frequency，compliant with IEEE802.11a/b/g/n/ac Support WiFi roaming function(seamless switching) |
|
Bluetooth |
Compliant with Bluetooth4.2 |
|
Mechanical Index |
|
|
Operating temperature |
-20℃～50℃ |
|
Storage temperature |
-20℃～70℃ |
|
Relative humidity |
5%～95% non-condensing |
|
Protection level |
Host IP65 |
|
Standard accessories |
1 Lithium polymer battery, 1 Charger, 1 Type-c charging cable |
|
Optional accessories |

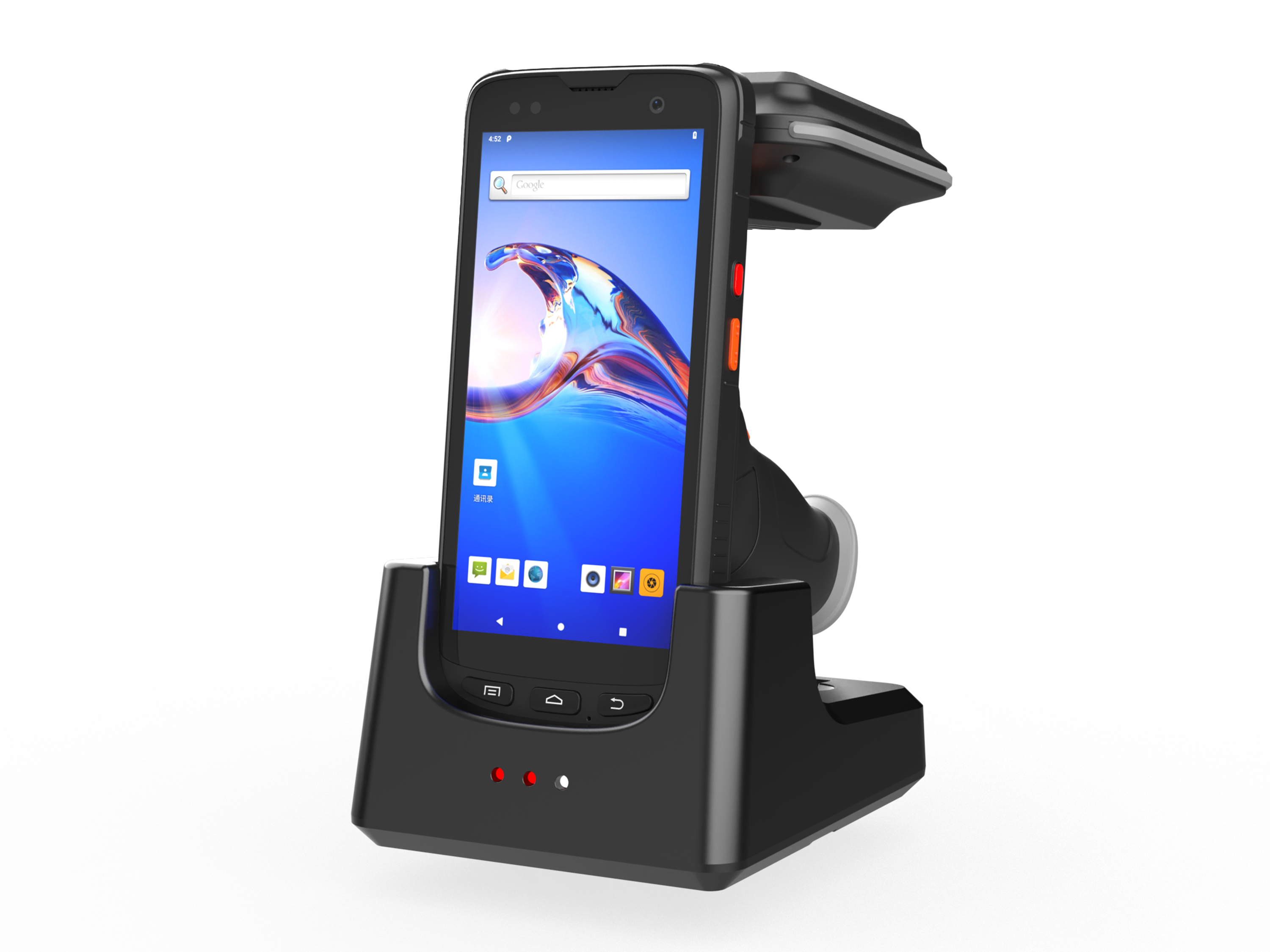

Charging stand |
|
Battery Performance |
|
|
Battery capacity |
9000mAh Lithium polymer battery，voltage 3.8V |
|
Standby time |
360 hours if turn off wireless communication in theory |
|
Charging time |
<2 hours (support 5V2A/PE2.0 16W fast charging function） |
|
Working time |
>14 hours（one full charging） |
|
Camera（optional） |
|
|
Front camera |
500W pixel |
|
Rear camera |
1300W/2000W pixel optional, with flash, auto focus function |
|
NFC function（optional） |
|
|
Frequency |
13.56MHz |
|
Protocol |
ISO14443A/B ISO15693, NFC-IP1，NFC-IP2 and etc. |
|
Tag standard |
M1 card（S50，S70），CPU card，NFC tag and etc. |
|
Read distance |
5-10cm |
|
Barcode Scanning (optional) |
|
|
2D |
|
|
Scanning engine |
Zebra SE4710/Zebra SE2100 and others |
|
Support types |
PDF417,MicroPDF417,Composite,RSS,TLC-39,Datamatrix,QRcode,MicroQRcode,Aztec,MaxiCode,PostalCodes,USPostNet,USPlanet,UKPostal,AustralianPostal,JapanPostal,DutchPostal and etc. |
|
RFID (optional) |
|
|
UHF RFID |
|
|
Frequency |
865-868MHz, 902-928MHz |
|
Protocol |
EPC C1 GEN2/ISO18000-6C |
|
Read distance |
0~20 meters (related to tag and environment) |
|
HF |
|
|
Frequency |
13.56MHz |
|
Protocol |
ISO15693、ISO14443 |
|
Read distance |
0-7cm （related to tag and environment） |
|
CPU card |
Support read and write CPU card, use with PSAM |
|
LF |
125K/134.K ear tag |
|
2.45G（customized） |
Read distance 200 meters 200 tags for once reading |
