Model: AD-61

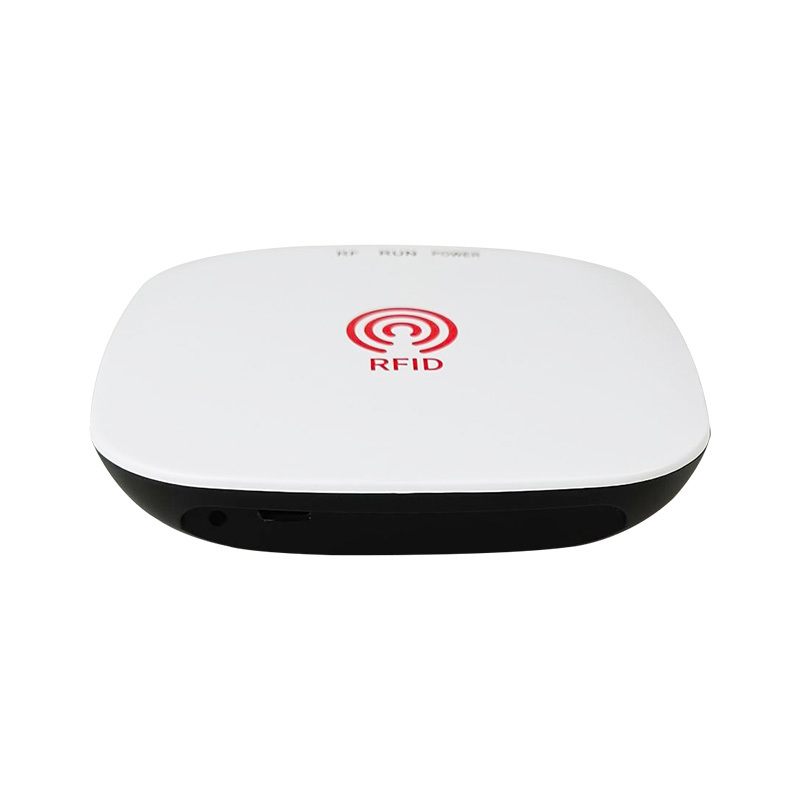

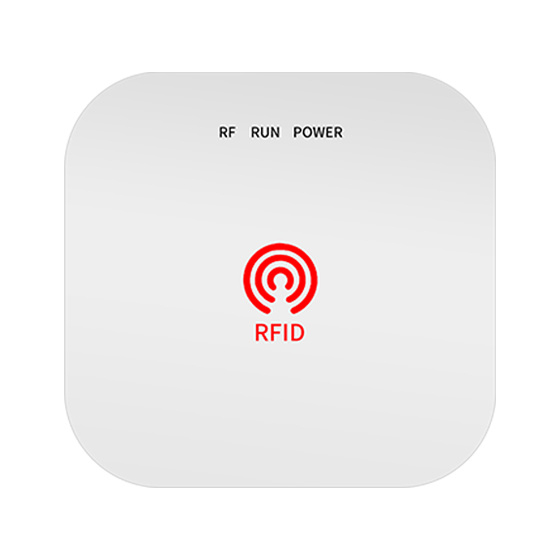

Desktop RFID UHF Card AD-61
$44.00
暂无数据
Chip:
Shipping cost within 10kg is $100, and for every additional 1kg, the shipping cost increases by $5
Description
Comprehensive support conforms to the ISO-18000-6C (EPC G2) standard;Working frequency 902-928Mhz or 865-868Mhz (can be adjusted according to the requirements of different countries or regions).
Detail
|
Model No. |
AD-61 |
|
Performance |
|
|
Frequency range |
902-928MHZ/865-868MHZ（or customized） |
|
RF module |
Based on Qilian M100, excellent stability |
|
FM mode |
Wide-spectrum frequency modulation (FHSS) or fixed frequency,software can be set |
|
Antenna |
Gain-16dbi PCB Antenna |
|
Communication interface |
USB to Type_C |
|
power |
15~26 dBm |
|
RFID tag operation performance |
|
|
Reading distance |
Built-in transceiver antenna with a reading distance ranging from 0 to 140 mm |
|
writing distance |
0~80mm |
|
Air Interface Protocol |
It supports compliance with ISO-18000-6C (EPC G2) |
|
ASI |
Provide API development kits as well as application routines in C, C# and Java |
|
Physical parameters |
|
|
Dimension(mm) |
105(L)*105(W)*25.5(H)mm |
|
power supply |
Power is drawn from the USB interface of the computer |
|
Weight |
120g |
|
Humidity |
5% to 95%, non-condensing |
|
IP rating |
IEC IP52 |
|
Working Temperature |
-20 ºC to 60 ºC |
|
Storage Temp |
-40°C to 80°C |
