Model: AD-7050

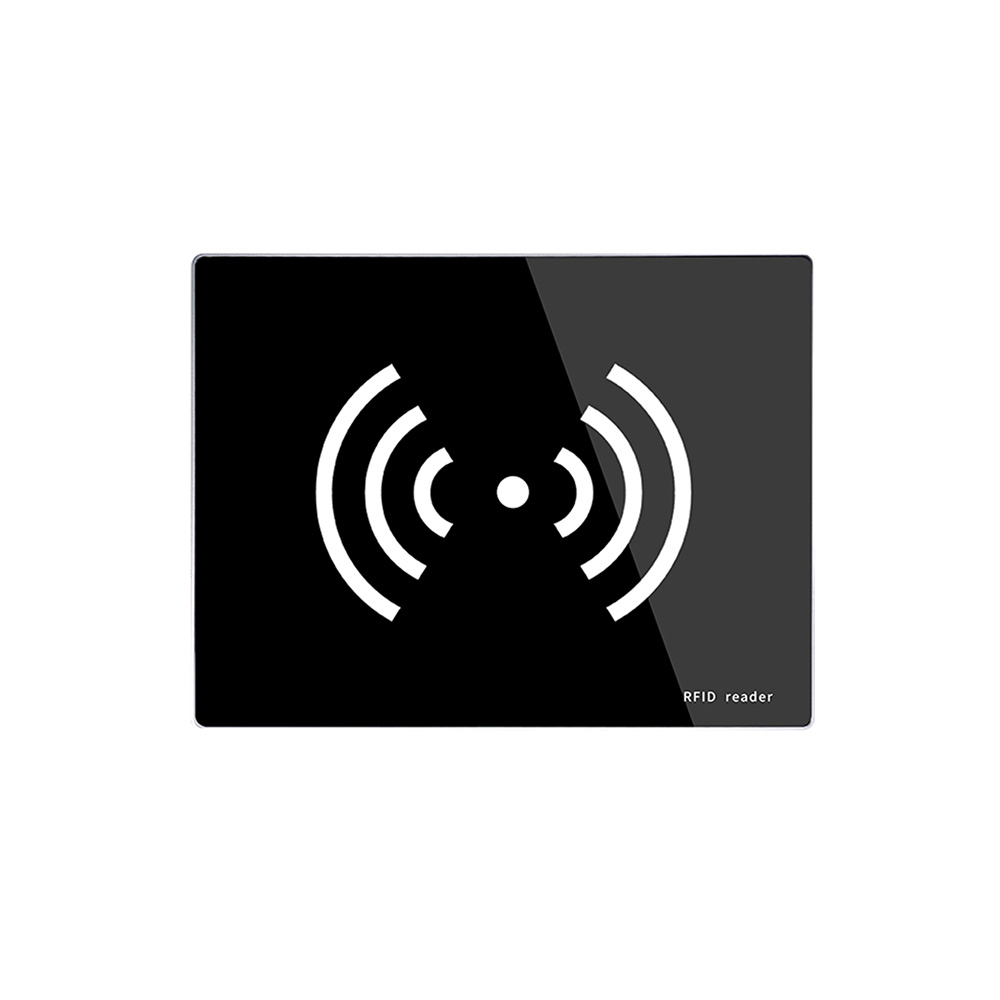

AD-7050 RFID Smart Desktop Reader Information Collection Specification
$416.00
暂无数据
Chip:
Shipping cost within 10kg is $100, and for every additional 1kg, the shipping cost increases by $5
Description
AD-7050 is a high-performance UHF RFID integrated device, built-in directional circular polarisation antenna, based on Impinj R2000 read/write engine design, fully support the electronic tags in line with the EPCglobal C1 Gen 2 ISO 18000-6C , ISO18000-6B standards, can be widely used in washing, footwear and apparel factories, intelligent manufacturing workstations, Bank notes, books and archives, and many other radio frequency identification systems.
Detail
|
Purchase Code (Product Model) |
AD-7050 |
|
Physical Parameters |
|
|
Device size（MM） |
700 (L)*500 (W)*24.5 (H) (±2) |
|
Antenna |
7DB2 dual-array array antennas, can be limited control of the reading area, gain greater than 7DB |
|
Shell |
Tempered glass surface material, aluminium alloy shell |
|
Performance Parameters |
|
|
Protocol Support |
EPCglobal C1 Gen 2 ISO 18000-6C |
|
System |
Linux（optional） |
|
Frequency support |
865~868MHz/902～928MHz（can be adjusted according to different countries or regions） |
|
Frequency hopping mode |
Wide-spectrum frequency hopping (FHSS) or fixed-frequency transmission mode operation |
|
RFID read/write power |
Output power software adjustable, step interval ±1db, maximum 33dbm |
|
RFID read speed |
＞700 tags/sec |
|
Tag cache |
20W tags @ 96bit EPC |
|
RSSI strength detection |
Support |
|
Power supply |
Power adapter: 12V~24V/5A |
|
Indicator |
POWER: red LED, power indicator COMM: green LED communication indication TAG: Blue LED electronic tag operation indicator |
|
Environmental parameters |
|
|
Operating temperature |
-20～+55℃ |
|
Storage temperature |
-20～+85℃ |
|
Operating humidity |
5%～95%RH，no condensation |
|
Definition of Indicator |
|
|
Red LED （POWER） |
Power indicator |
|
Green LED （COMM） |
Communication LED |
|
Blue LED （TAG） |
Electronic tag operation indicator |
