Model: AD-Q68/AD-Q68U
Type-C USB UHF RFID Desktop Reader for POS AD-Q68/AD-Q68U
$154.00
暂无数据
Chip:
Shipping cost within 10kg is $100, and for every additional 1kg, the shipping cost increases by $5
Description
Desktop clearing station antenna - built-in array narrow angle antenna - size 338 * 248 * 28mm - internal reserved module space.
Application scenario: desktop settlement desk and other near-range batch recognition scenarios. The angle is small, the edge signal is well controlled, and the signal above is strong.
Detail
|
Model No. |
AD-Q68/AD-Q68U |
|
Performance |
|
|
RF module |
IDTECH RF module (selected according to order) |
|
Air interface protocol |
EPC Global UHF class1 Gen2/ISO 18000-6C/(ISO 18000-6B optional) |
|
Frequency range |
902~928MHz or 865~868MHz |
|
E710 RF output power |
0~33dBm±1dBm |
|
M100 RF output power |
15~26dBm±1dBm |
|
Read distance |
0~800mm (related to reader parameter configuration, antenna gain, tag type) |
|
Write distance |
0~300mm (related to reader parameter configuration, antenna gain, tag type) |
|
FM mode |
FHSS or fixed frequency, software setting |
|
Antenna |
Built-in 150*150 -10dBi near-field antenna |
|
Communication interface |
RS232, RJ45 or Typec |
|
Communication rate |
Serial port communication rate 38400, 115200bps, RJ45 Serial communication rate 38400, 115200bps, |
|
Working status display mode |
LED indicator, buzzer |
|
Firmware upgrade |
Serial port upgrade or USB |
|
Application software interface |
Provide API development kit and C, C# and Java application examples |
|
Physical parameters |
|
|
Size |

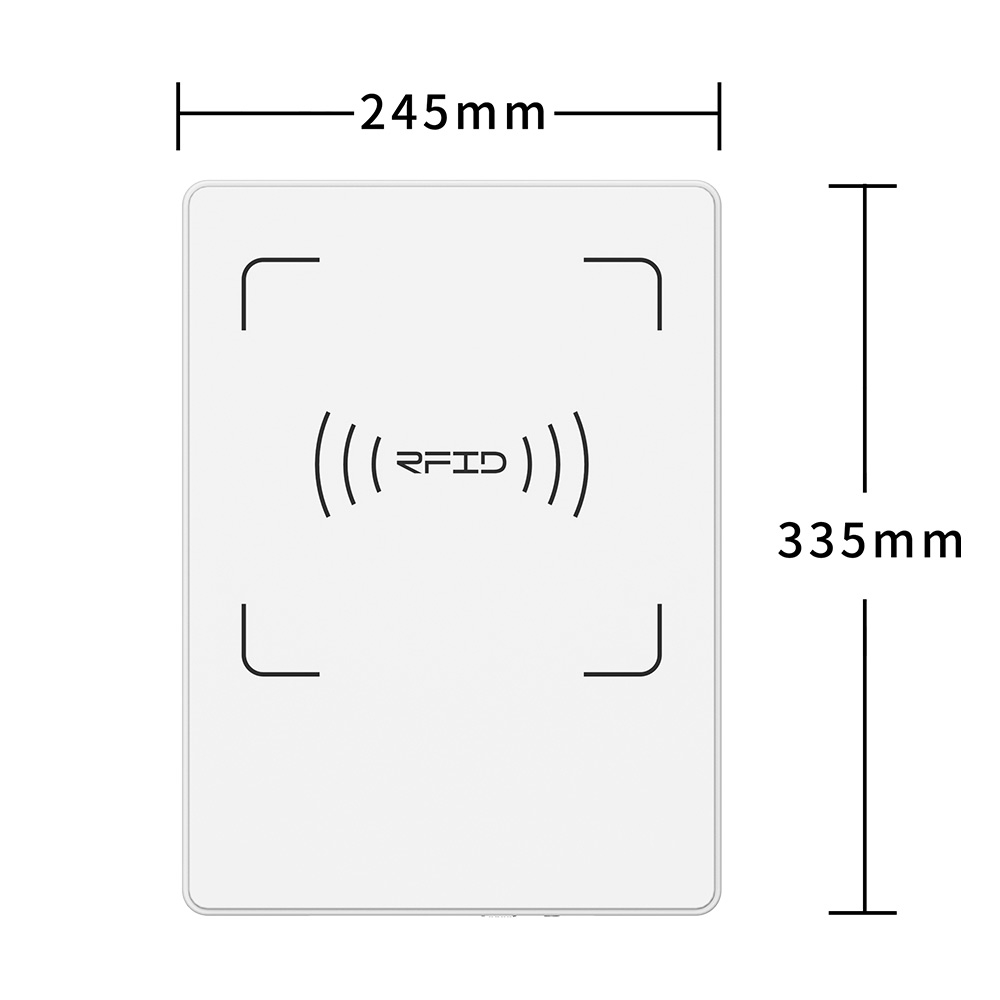

338 (length) * 248 (width) * 28 (height) mm |
|
AD-Q68 power supply |
Equipped with a power converter with 220V AC input and +12V/3A DC output |
|
AD-Q68U power supply |
Type-C 5V |
|

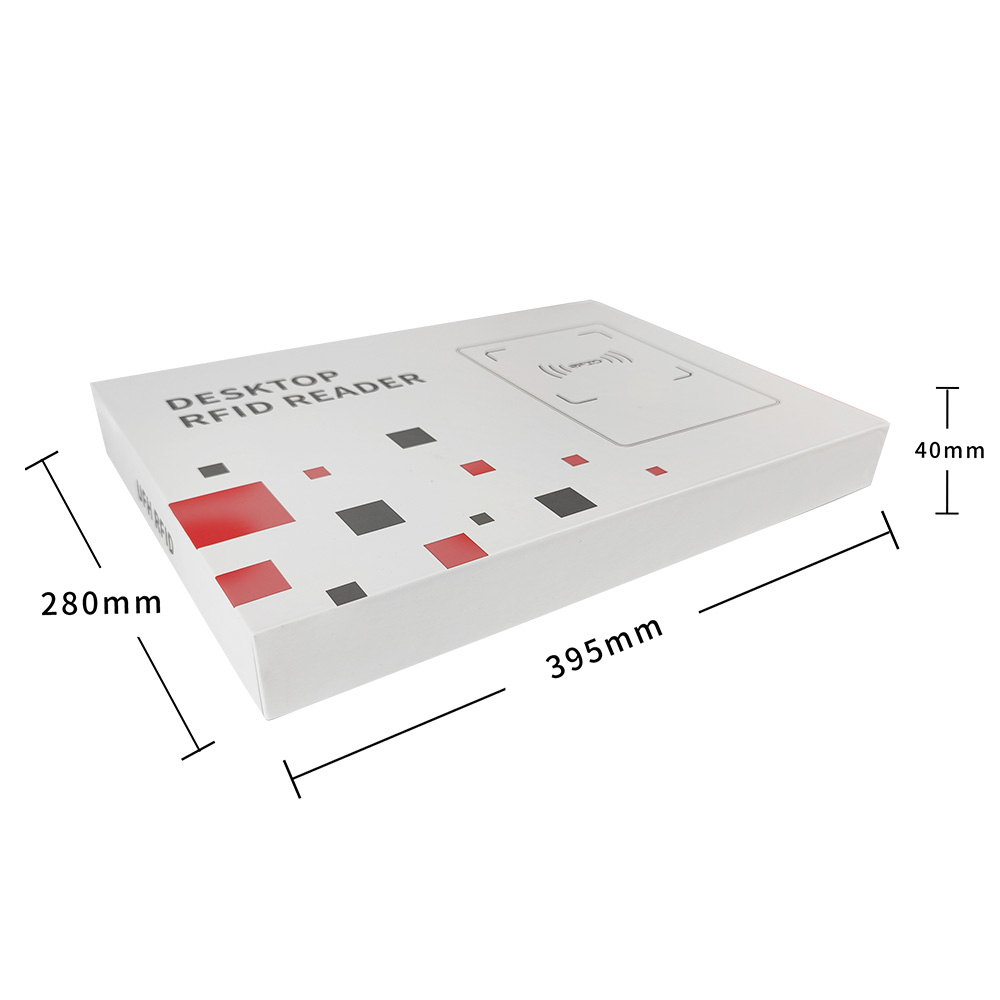

AD-Q68 packaged weight |
≈2.0KG |
|
AD-Q68U packaged weight |
≈1.6KG |
|
Humidity |
5% ~ 95%, non-condensing |
|
Degree of protection |
IEC IP54 |
|
Operating temperature |
-20°C ~ 80°C |
|
Storage temperature |
-40°C ~ 85°C |
