Model: AM-M40

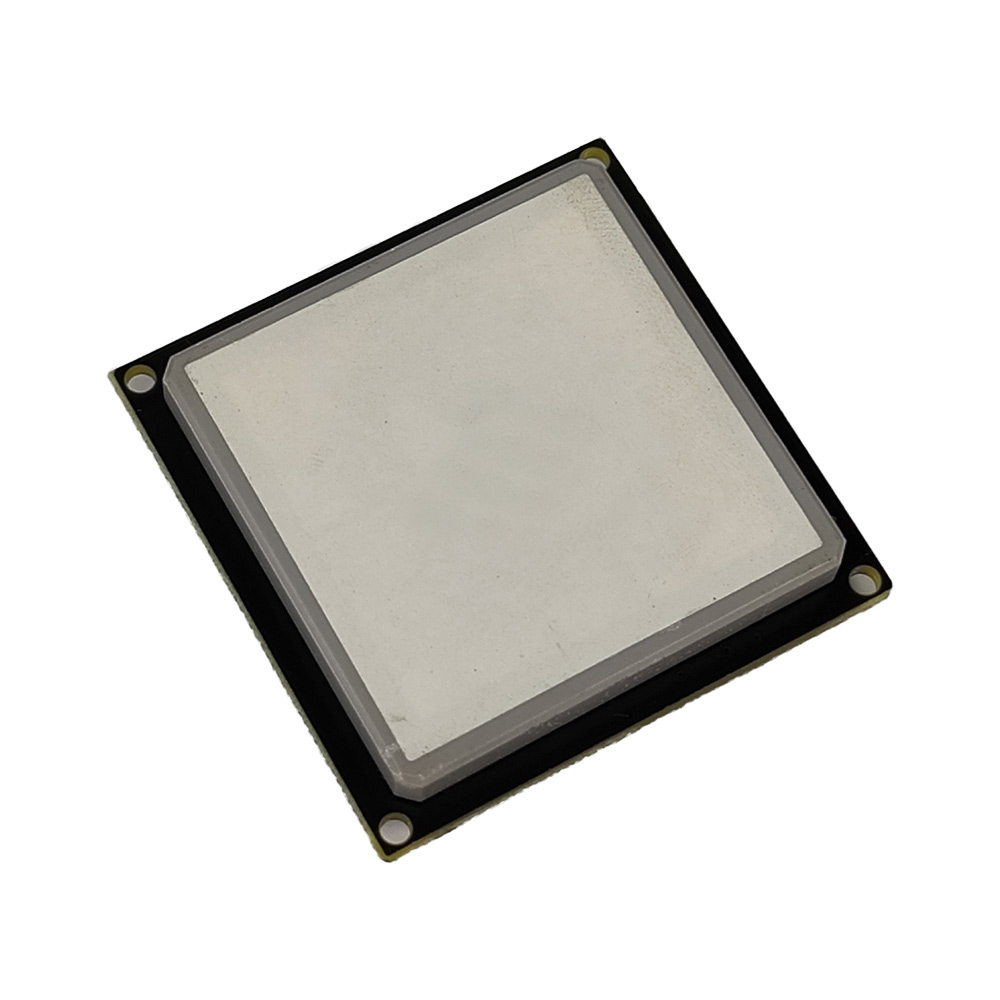

UHF RFID Integrated module AM-M40
$39.00
暂无数据
Shipping cost within 10kg is $100, and for every additional 1kg, the shipping cost increases by $5
Description
（1）Integrated antenna character
（2）Solve the exothermic problem completely
（3）Outstanding stability
（4）Good consistency
（5）Brief and high efficient interface of hardware and software
（6）Installation method
Detail
|
Model No. |
AM-M40 |
|
Electrical parameters |
|
|
Working Voltage |
DC 3.5V – 5 V |
|
PCB size |
PCB size：40*40mm , Ceramic antenna size：35*35mm Overall height：8.5mm |
|
Standby current |
<80mA (EN pin high level) |
|
Sleeping current |
<100uA (EN pin low level) |
|
Operation current |
180mA @ 3.5V (26dBm Output，25°C) 110mA @ 3.5V (18dBm Output，25°C) |
|
Operating time |
<100mS |
|
Operation temp. |
- 20 °C - + 70 °C |
|
Storage temp. |
- 20 °C - + 85 °C |
|
Working humidity |
< 95% ( + 25 °C) |
|
Protocol |
EPC global UHF Class 1 Gen 2 / ISO 18000-6C |
|
Frequency |
840-960MHZ |
|
Working area support |
US, Canada and other regions following U.S. FCC Europe and other regions following ETSI EN 302 208 Mainland China;Japan;Korea;Malaysia;Taiwan |
|
Output power |
18-26dBm |
|
Read/write |
Read: 200-250cm；write: 10-50cm(adjusted) |
|
Output power accuracy |
+/- 1dB |
|
Output power flatness |
+/- 0.2dB |
|
Receive sensitivity |
< -70dBm |
|
Store tag peak speed |
> 50pcs/sec |
|
Tags storage capacity |
200pcs tags @ 96 bit EPC |
|
Tags RSSI |
support |
|
Communication interface |
TTL Uart interface |
|
Communication baud rate |
115200 bps（default and recommend） 38400bps |
|
Heat-dissipating method |
Air cooling(no need for out install cooling fin） |
