Model: AC-BL1670

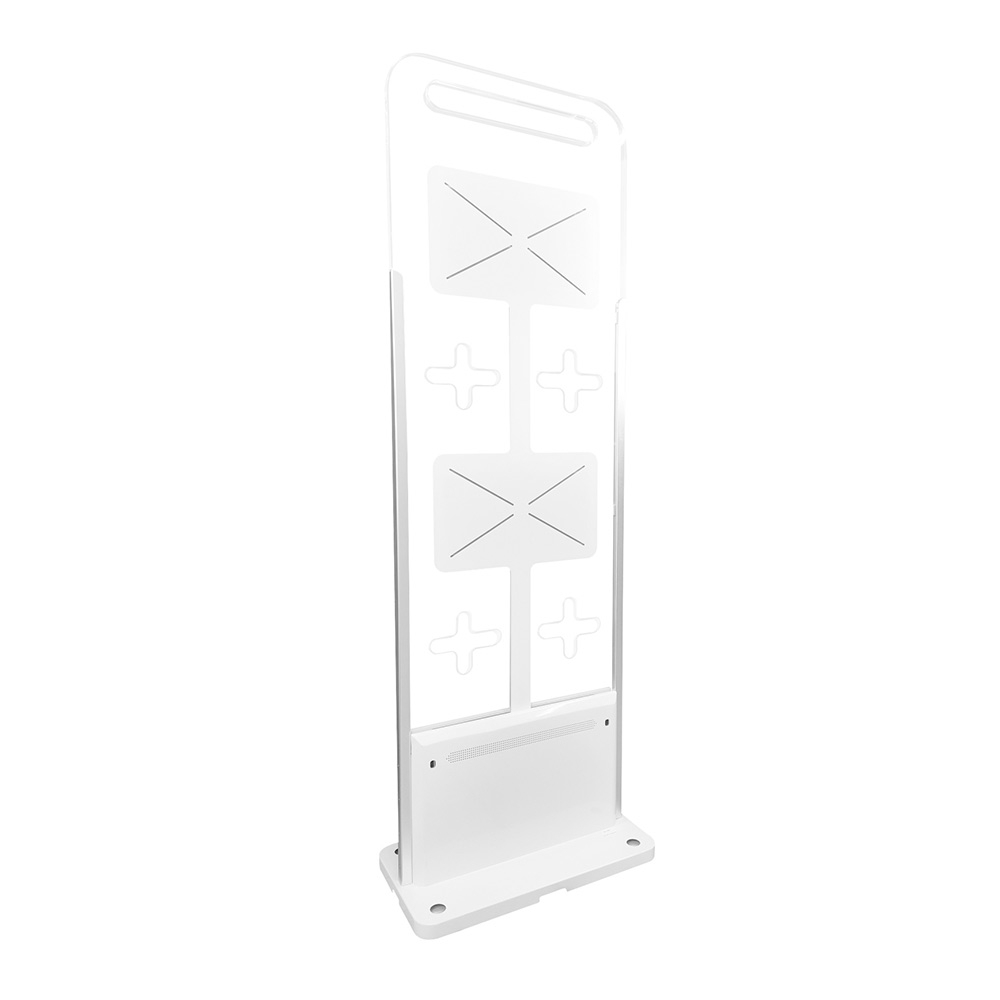

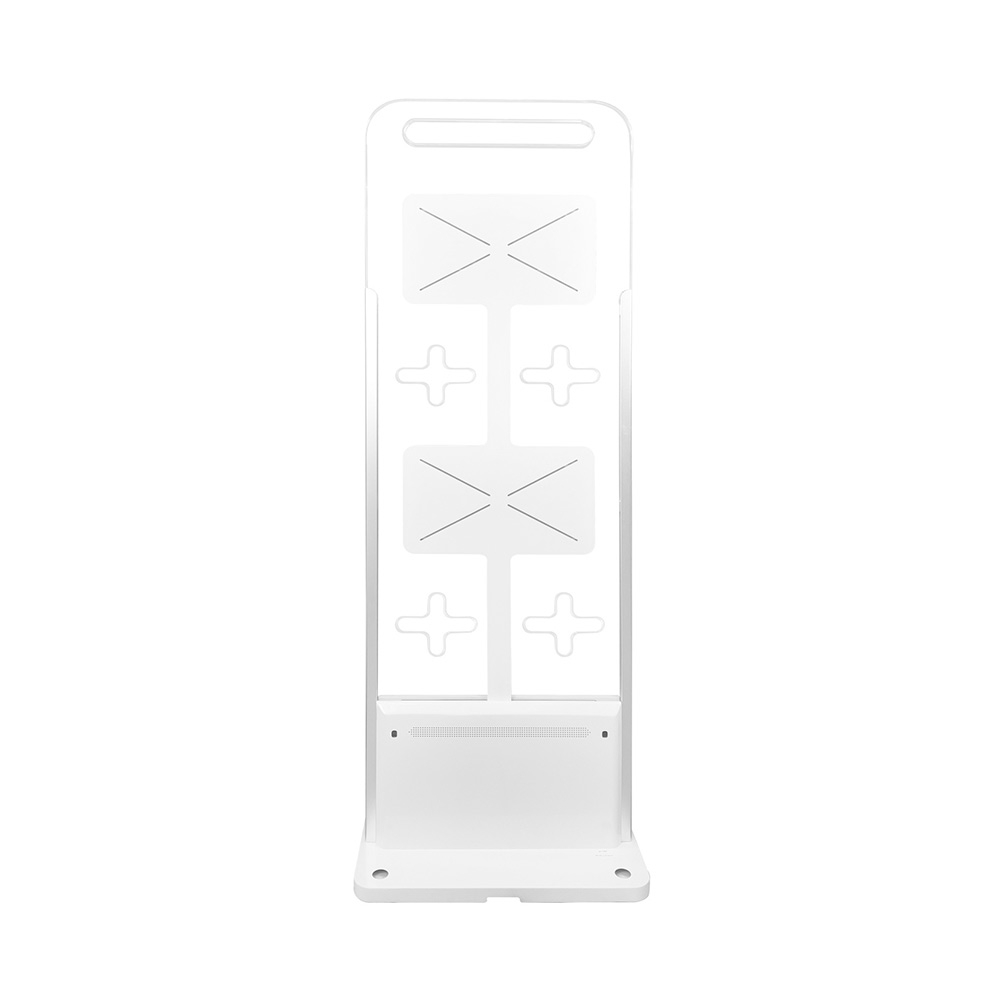

UHF RFID channel reader AC-BL1670
$1886.00
暂无数据
Cable length:
Chip:
Interface:
Frequency:
Shipping cost within 10kg is $100, and for every additional 1kg, the shipping cost increases by $5
Description
This intelligent security access control system complies with ISO18000-6C (EPC C1G2) and is suitable for material management, supermarket anti-theft, warehousing, library storage, and archives. It features a simple and elegant design, stable quality, and reliable performance. It supports multi-tag reading, uses an infrared trigger reading mode, supports entry and exit counting, and integrates an audible and visual alarm system with both online and offline EAS alarm modes. It supports Ethernet communication and is expandable to multiple communication methods, including WiFi and 4G.
1. Strong multi-tag reading capability with extremely low miss and misread rates; 2. Specially designed antenna ensures precise access control coverage with no blind spots; 3. Built-in alarm light and buzzer.
1. Strong multi-tag reading capability with extremely low miss and misread rates; 2. Specially designed antenna ensures precise access control coverage with no blind spots; 3. Built-in alarm light and buzzer.
Detail
|
Purchase code (product model) |
AC-BL1670 |
|
Performance Parameters |
|
|
Identification method |
Radio frequency identification (UHF RFID) |
|
Read and write function |
Supports multi-tag identification, tag data filtering, RSSI perceptible signal strength |
|
Reading distance |
0-600cm (for personnel access control within 1.2 meters, the effect is best) |
|
Function |
Sound and light alarm/infrared trigger |
|
Physical parameters |
|
|
Overall dimensions (height*width*depth) |
1649mm*560mm*300mm |
|
Communication interface |
Network port |
|
Installation method |
No need to cut slots, with 1.5m stainless steel cable duct and expansion screws |
|
RAM+ROM |
4G+32G |
|
UHF RFID |
|
|
Frequency range |
840MHz-960MHz |
|
RF protocol standard |
ISO 18000-6C（EPC C1 G2） |
|
power supply |
|
|
Power input |
AC220V |
|
Working temperature |
0~60℃ |
|
Working humidity |
10%RH~90%RH |
|
Equipment function demonstration |
Sound and light alarm, personnel counting (people in and out), multi-tag inventory reading |
|
Working humidity |
10%RH~90%RH |
