Model: AC-DZ5720R
AC-DZ5720R Ceiling RFID reader Product specifications
$338.00
暂无数据
Cable length:
Chip:
Interface:
Frequency:
Shipping cost within 10kg is $100, and for every additional 1kg, the shipping cost increases by $5
Description

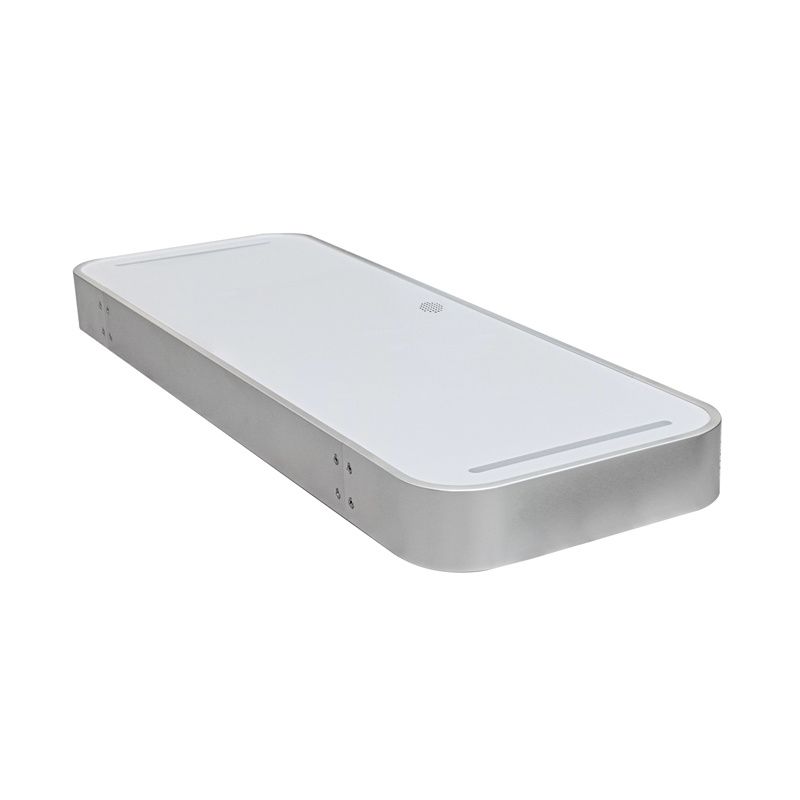

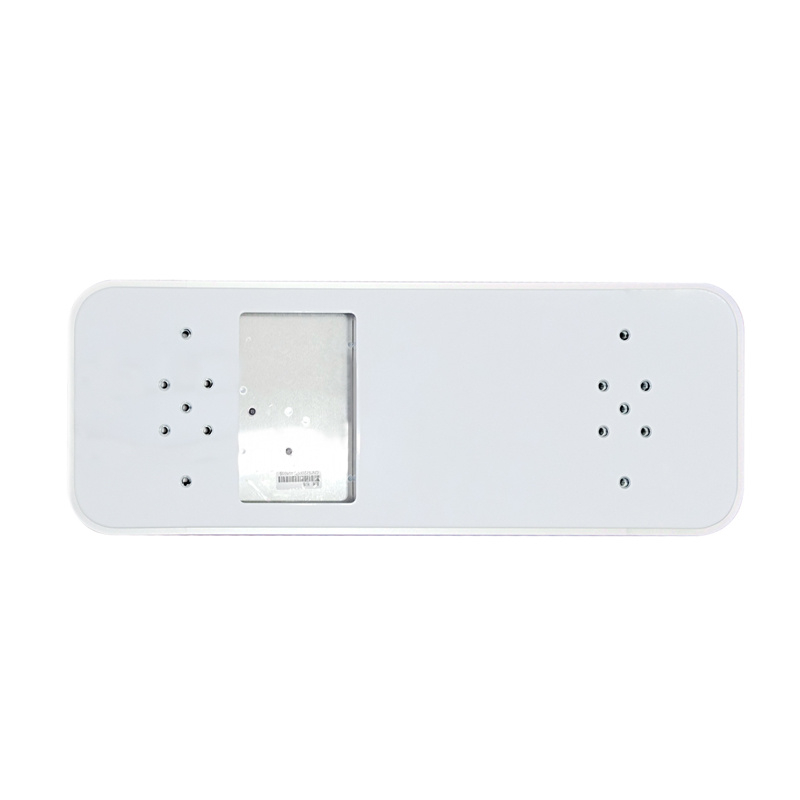

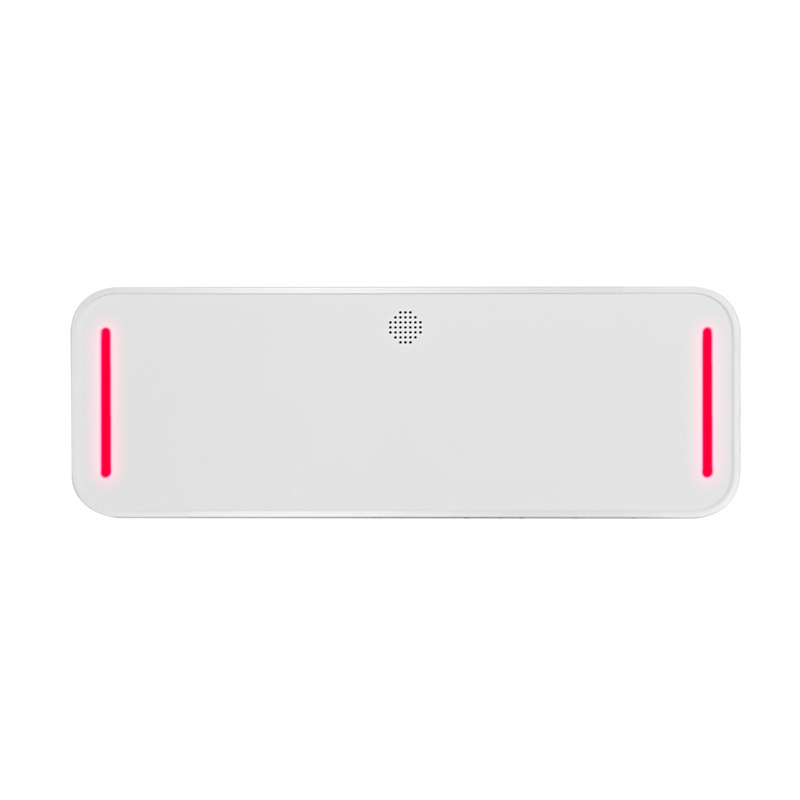

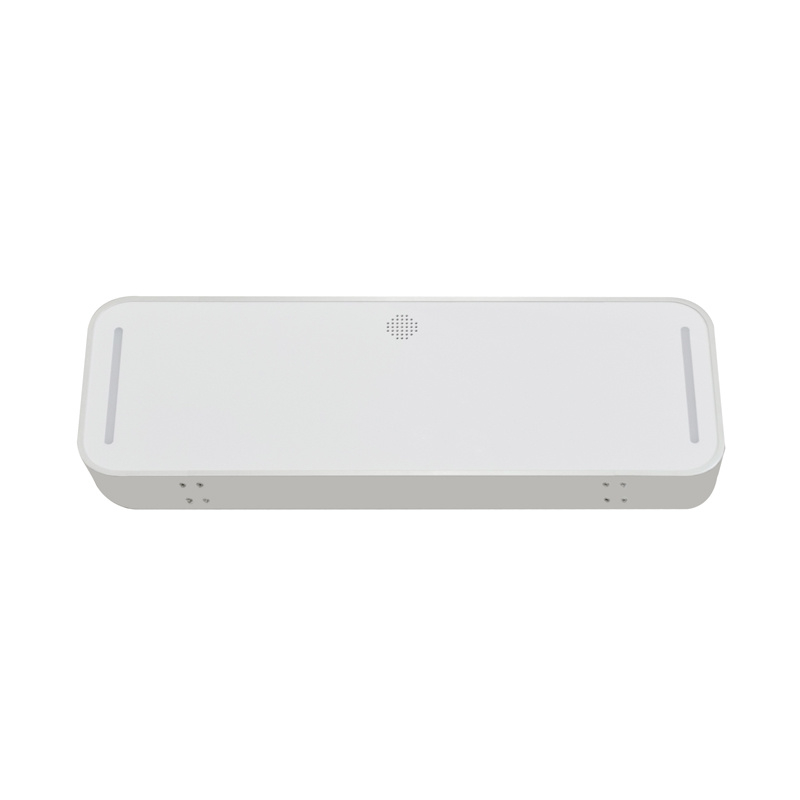

AC-DZ5720R ceiling mounted RFID access control adopts ceiling or suspended ceiling installation, which is easy to install and does not take up space. The product integrates the sound and light alarm function of the access control, which can alarm illegal RFID electronic tags. When goods enter and leave the warehouse or store, the ceiling mounted RFID access control can perform intelligent identification, which is convenient and fast.
Detail
|
Product number |
AC-DZ5720R |
|
|
AC-DZ5720R(optional) |
The AM-61 module based on the Impinj E710 RF chip has both multi-tag and long-distance recognition capabilities. |
|
|
AC-DZ5720A(optional) |
AM-61 module based on Impinj E710 RF chip + Android system control board, powerful functions, excellent reading and writing performance; |
|
|
AC-DZ5720S (standard) |
Based on AM-5S (Korea PHYCHIPS PR9200) , excellent stability and long-distance recognition performance; |
|
|
Performance |
||
|
Frequency Range |
American standard 902-928MHZ / European standard 865 - 86 8MHZ ( Can be customized according to different countries or regions ) |
|
|
Antenna Polarization |
High gain-long distance circular polarization |
|
|
Antenna Gain (dBi) |
10 ±0.5 |
|
|
Half power beam width (°) |
Hor:70±2 Ver:38±2 |
|
|
Frequency modulation |
Wide spectrum frequency modulation (FHSS) or fixed frequency, software configurable |
|
|
RF Output |
33dBm±1dBm (MAX); 50 ohm load |
|
|
Output power regulation |
1 dB step |
|
|
Communication Interface |
RS232, RS485, Wiegand26/34, TCP/IP or wireless communication (optional) |
|
|
Communication rate |
Serial port rate 9600～115200bps, RJ45 is 10M/100 Mbps adaptive |
|
|
GP I/O interface |
I/O interface ( PR9 connector outlet ) |
|
|
Alarm method |
Audible alarm |
|
|
Infrared trigger height (optional) |
≤ 3 m |
|
|
360°2D LiDAR (optional) |
Distance measurement range |
0.05~12m (80% reflectivity), scanning angle 0-360°, Class I eye safety standard |
|
Distance measurement accuracy |
20mm; |
|
|
Millimeter wave radar (optional) |
Performance |
Frequency: 77~78GHz, detection distance 40 meters; elevation beam width (-6dB) -5°~+5°; horizontal beam width (-6dB) -60°~+60° |
|
Identification resolution |
Distance resolution 0.2m, speed resolution 1.9Km/h, distance accuracy plus or minus 0.1m |
|
|
Features |
Support intensive reading and writing, support antenna standing wave detection function, support firmware online upgrade, support tag data filtering, support RSSI: can perceive signal strength |
|
|
Power consumption |
Average power consumption <10W |
|
|
Application Software Interface |
Provide API development kit and VC, VB, Java application examples |
|
|
Label operation performance |
||
|
Reading distance |
10dbi antenna configuration, typical reading distance 6~10 meters (related to tag performance) |
|
|
Air interface protocol |
EPCglobal UHF ISO-18000-6C (EPC G2), ISO-18000-6B , GB/T29768-2013 (optional) |
|
|
Mechanical and electrical properties |
||
|
size |
575 (L)* 200 (W)* 45 (H) mm (excluding mounting bracket and external wiring) |
|
|
Power supply (aviation connector) |
Equipped with a power converter with 220V AC input and +12 V /3A DC output |
|
|
Panel material |
Acrylic |
|
|
Frame material |
Aluminum Alloy |
|
|
Radome color |
White or gray |
|
|
weight |
3 Kg |
|
|
Installation |
Ceiling, wall, pole installation |
|
|
Pole diameter |
35 -50mm |
|
|
humidity |
5% to 95%, non-condensing |
|
|
Protection level |
IEC IP65 |
|
|
Operating temperature |
-20 ºC to +60 ºC |
|
|
Lightning protection |
DC grounding
|
|
