Model: AC-450

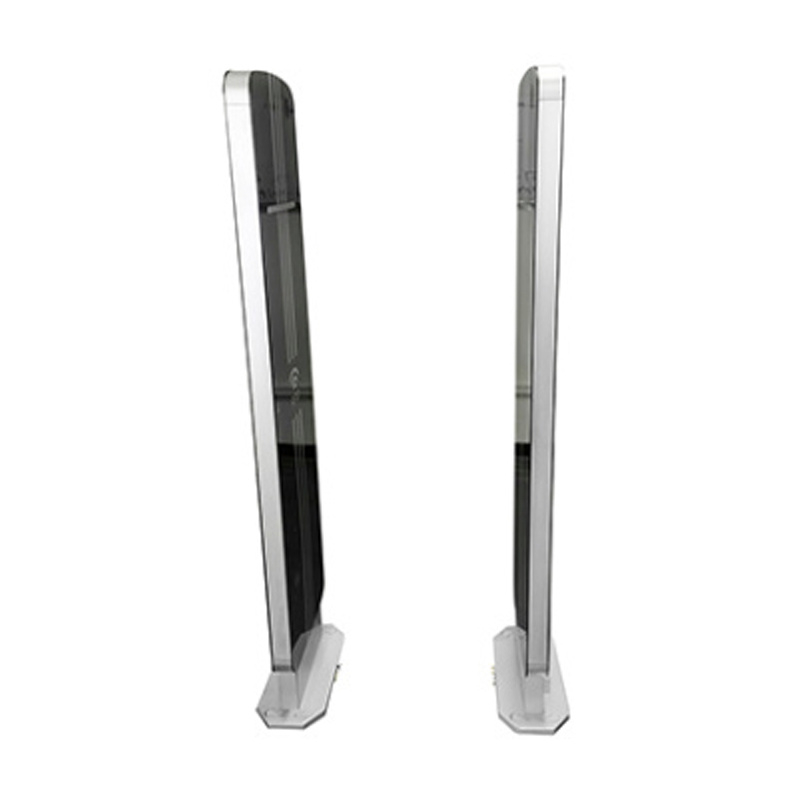

UHF RFID Intelligent Security Access Control AC-450
$708.00
暂无数据
Cable length:
Chip:
Interface:
Frequency:
Shipping cost within 10kg is $100, and for every additional 1kg, the shipping cost increases by $5
Description
Intelligent UHF security access control, using UHF radio frequency technology, simple and elegant appearance, stable quality, reliable performance, support multi-tag reading, infrared trigger reading mode, support in and out number counting, integrated sound and light alarm, can use online/offline EAS alarm mode, the device supports network port communication, and can expand WiFi, 4G and other communication methods.
1. Strong multi-tag reading capability, extremely low missed reading rate and misreading rate; 2. Adopt horizontal narrow beam antenna design, accurate access control coverage area, no blind spots; 3. Built-in alarm light and buzzer, high response sensitivity; 4. Optional Android/Windows system touch LED high-definition display, industrial control all-in-one machine, install application APP for better human-computer interaction.
1. Strong multi-tag reading capability, extremely low missed reading rate and misreading rate; 2. Adopt horizontal narrow beam antenna design, accurate access control coverage area, no blind spots; 3. Built-in alarm light and buzzer, high response sensitivity; 4. Optional Android/Windows system touch LED high-definition display, industrial control all-in-one machine, install application APP for better human-computer interaction.
Detail
|
Model |
AC-450 |
|
Performance Parameters |
|
|
Operating System |
Windows (Android optional) |
|
Configuration |
N29, 2G operation, 32G memory (RK3288, 2G+8G) |
|
Recognition method |
Radio frequency identification (UHF RFID) |
|
Read and write function |
Support for multi-tag recognition, support for tag data filtering, support for RSSI sensible signal strength |
|
Reading distance |
0-600cm (such as doing personnel in and out of the control within 1.2 meters of good results) |
|
Function |
Sound and light alarm/infrared trigger |
|
Speaker |
5W box cavity speaker |
|
Physical Parameters |
|
|
Dimension (H*W*D) |
1495mm*450mm*180mm |
|
Screen |
10.1-inch capacitive touch screen (optional) |
|
Resolution |
1366*788 |
|
Screen Ratio |
16:9 |
|
Communication Interface |
Network interface |
|
Installation |
No slotting, with 1.5 meters stainless steel cable channel and expansion screws. |
|
UHF RFID |
|
|
Frequency Range |
840MHz-960MHz |
|
RF protocol standard |
ISO 18000-6C（EPC C1 G2） |
|
RFID Module |
Impinj VM-64/E64 |
|
Recognition Rights Optional Functions |
|
|
Display |
10.1-inch capacitive touch screen (optional) |
|
Waterproof |
Option |
|
Power supply |
|
|
Power input |
AC220V |
|
Operating Environment |
|
|
Operating Temperature |
0~60℃ |
|
Operating Humidity |
10%RH~90%RH |
