Model: AC-410
Vertical Access Control Product Manual AC-410
$769.00
暂无数据
Cable length:
Chip:
Interface:
Frequency:
Shipping cost within 10kg is $100, and for every additional 1kg, the shipping cost increases by $5
Description
AC-410 intelligent ultra-high frequency security access control adopts ultra-high frequency radio frequency technology . It has a simple and elegant appearance, stable quality and reliable performance. It supports multi-tag reading, adopts infrared trigger reading mode, supports statistics on the number of people entering and exiting, and integrates sound and light. The alarm is integrated, and two modes of online /offline EAS alarm can be used. The device supports network port communication and can expand multiple communication methods such as WiFi and 4G ;
Detail
|
Purchasing code (product model) |
AC-410 |
|
|
Performance parameters |
||
|
Function |
Infrared trigger, sound and light alarm |
|
|
communication |
RJ45 (10/100M adaptive), RS232, RS485, Wiegand26/34 interface |
|
|
Wireless communication |
4G, WiFi, Bluetooth wireless communication (optional) |
|
|
General purpose input/output (GPIO) |
2 inputs, 2 outputs |
|
|
Firmware upgrade |
Network remote upgrade |
|
|
Infrared trigger height (optional) |
≤ 3 meters |
|
|
360°2D lidar (optional) |
Ranging range |
0.05~12m (80% reflectivity), scanning angle 0-360°, Class I human eye safety standard |
|
Ranging accuracy |
20mm; |
|
|
Millimeter wave radar (optional) |
Performance |
Frequency: 77～78GHz, detection distance 40 meters; pitch beam width (-6dB) -5°～+5°; horizontal beam width (-6dB)-60°～+60° |
|
Recognition resolution |
Distance resolution 0.2m, speed resolution 1.9Km/h, distance accuracy plus or minus 0.1m |
|
|
RF parameters |
||
|
RF protocol standards |
ISO 18000-6C/EPC C1 GEN2 |
|
|
Frequency Range |
920-925MHz, 865-868MHz, 902-928MHz (can be adjusted according to different countries or regions) |
|
|
Anti-collision algorithm |
Supports multi-tag intensive reading |
|
|
Reading speed |
≥200pcs/s |
|
|
Output Power |
4 antennas, power 1-33dBm adjustable |
|
|
Read and write functions |
Supports multi-tag recognition, tag data filtering, and RSSI sensible signal strength |
|
|
Reading distance |
0-600cm (the best effect is to control personnel entry and exit within 1.2 meters) |
|
|
Operating mode |
Fixed frequency/frequency modulation optional |
|
|
Physical parameters |
||
|
Power input |
AC 220V, 50Hz (machine power consumption: less than 25W) |
|
|
weight |
38kg (including wooden box packaging) |
|
|
Equipment materials |
Alloy profiles; acrylic surface materials |
|
|
Exterior |
Body-silver gray, panel-off-white |
|
|
Installation method |
Hidden (expansion screws or chemical anchors) |
|
|
Protection level |
IP54 |
|
|
Operating temperature |
-20℃~60℃ |
|
|
storage temperature |
-25℃~70℃ |
|
|
Working humidity |
10%RH~90%RH |
|
|

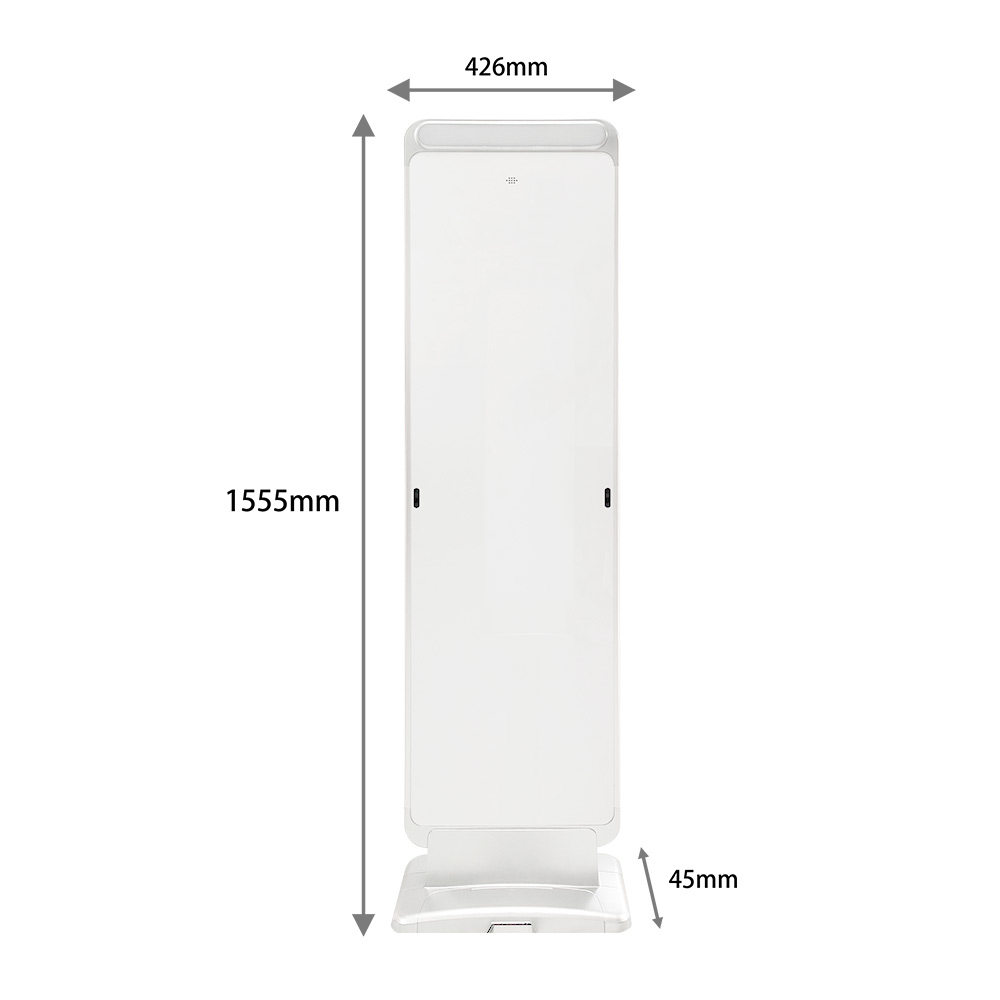

Overall machine size (height*width*depth) |
1555mm*426mm*45mm |
|
