Model: AC-410TP
Vertical Access Control Product Manual AC-410TP
$1140.00
暂无数据
Cable length:
Chip:
Interface:
Frequency:
Shipping cost within 10kg is $100, and for every additional 1kg, the shipping cost increases by $5
Description

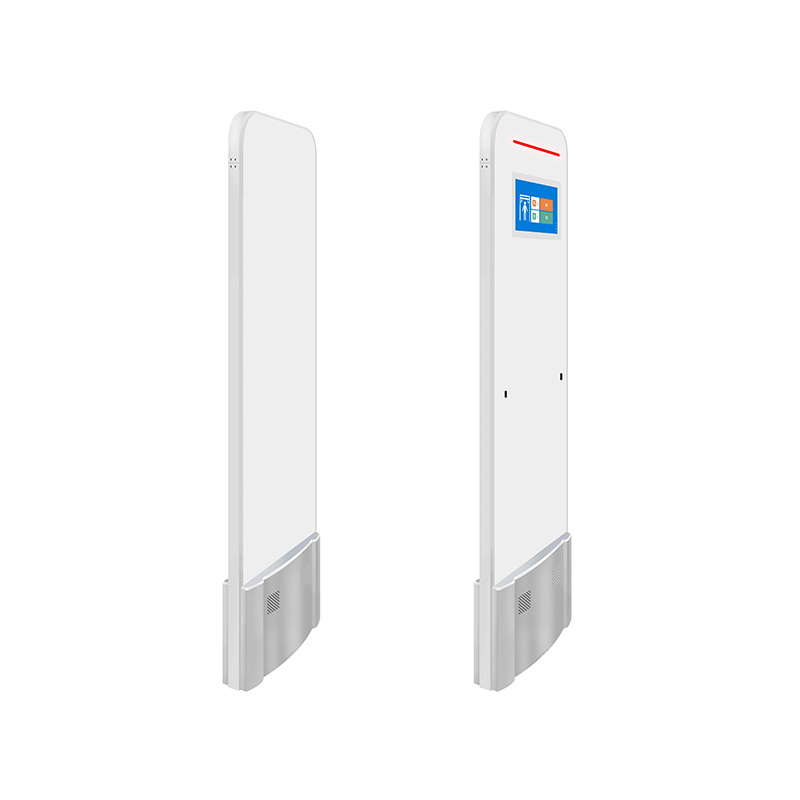

AC-410TP intelligent UHF security access control adopts UHF radio frequency technology. It has a simple and elegant appearance, stable quality and reliable performance. It supports multi-tag reading, adopts infrared trigger reading mode, supports counting of people entering and exiting, and integrates sound and light. The alarm is integrated, and two modes of online /offline EAS alarm can be used. The device supports network port communication and can expand various communication methods such as WiFi and 4G ;
Detail
|
Purchasing code (product model) |
AC-410TP |
|
|
Performance parameters |
||
|
operating system |
Windows (optional Android) |
|
|
Industrial control configuration |
N29, 2G running 32G memory (RK3288, 2G+8G) |
|
|
AIP support |
.net ,C ++ ,Java |
|
|
Screen |
10.1-inch capacitive touch screen (optional) |
|
|
resolution |
1366*788 |
|
|
Function |
Infrared trigger, sound and light alarm |
|
|
communication |
RJ45 (10/100M adaptive), RS232, RS485, Wiegand26/34 interface |
|
|
Wireless communication |
4G, WiFi , Bluetooth wireless communication (optional) |
|
|
General purpose input/output (GPIO) |
2 inputs, 2 outputs |
|
|
Firmware upgrade |
Network remote upgrade |
|
|
Infrared trigger height (optional) |
≤ 3 meters |
|
|
360°2D lidar (optional) |
Ranging range |
0.05~12m (80% reflectivity), scanning angle 0-360°, Class I human eye safety standard |
|
Ranging accuracy |
20mm; |
|
|
Millimeter wave radar (optional) |
Performance |
Frequency: 77～78GHz, detection distance 40 meters; pitch beam width (-6dB) -5°～+5°; horizontal beam width (-6dB)-60°～+60° |
|
Recognition resolution |
Distance resolution 0.2m, speed resolution 1.9Km/h, distance accuracy plus or minus 0.1m |
|
|
RF parameters |
||
|
RF protocol standards |
ISO 18000-6C/EPC C1 GEN2 |
|
|
Frequency Range |
920-925MHz, 865-868MHz, 902-928MHz (can be adjusted according to different countries or regions) |
|
|
Anti-collision algorithm |
Supports multi-tag intensive reading |
|
|
Reading speed |
≥200pcs/s |
|
|
Output Power |
4 antennas, power 1-33dBm adjustable |
|
|
Read and write functions |
Supports multi-tag recognition, tag data filtering, and RSSI sensible signal strength |
|
|
Reading distance |
0-600cm (the best effect is to control personnel entry and exit within 1.2 meters) |
|
|
Operating mode |
Fixed frequency /frequency modulation optional |
|
|
Physical parameters |
||
|
Power input |
AC 220V, 50Hz (machine power consumption: less than 25W) |
|
|
weight |

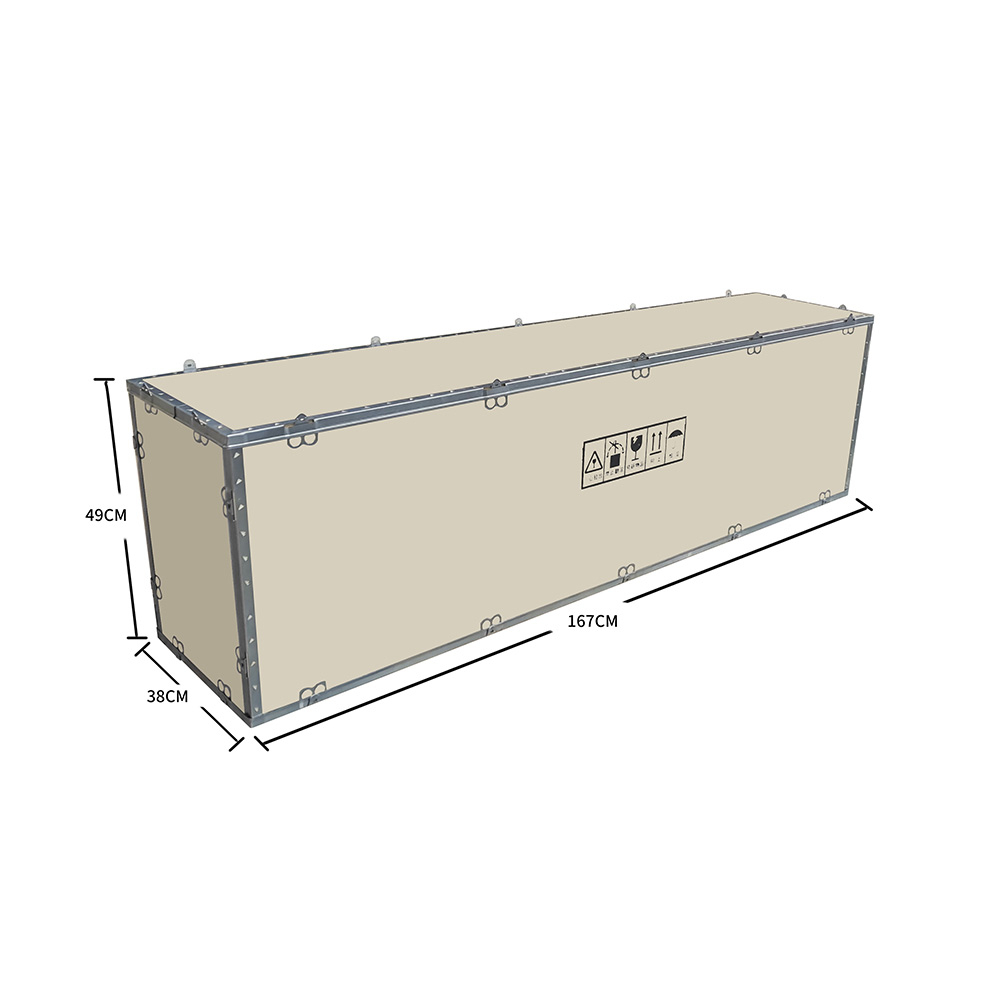

38kg (including wooden box packaging) |
|
|
Equipment materials |
Alloy profiles; acrylic surface materials |
|
|
Exterior |
Body-silver gray, panel-off-white |
|
|
Installation method |
Hidden (expansion screws or chemical anchors) |
|
|
Protection level |
IP54 |
|
|
Operating temperature |
-20℃~60℃ |
|
|
storage temperature |
-25℃~70℃ |
|
|
Working humidity |
10%RH~90%RH |
|
|

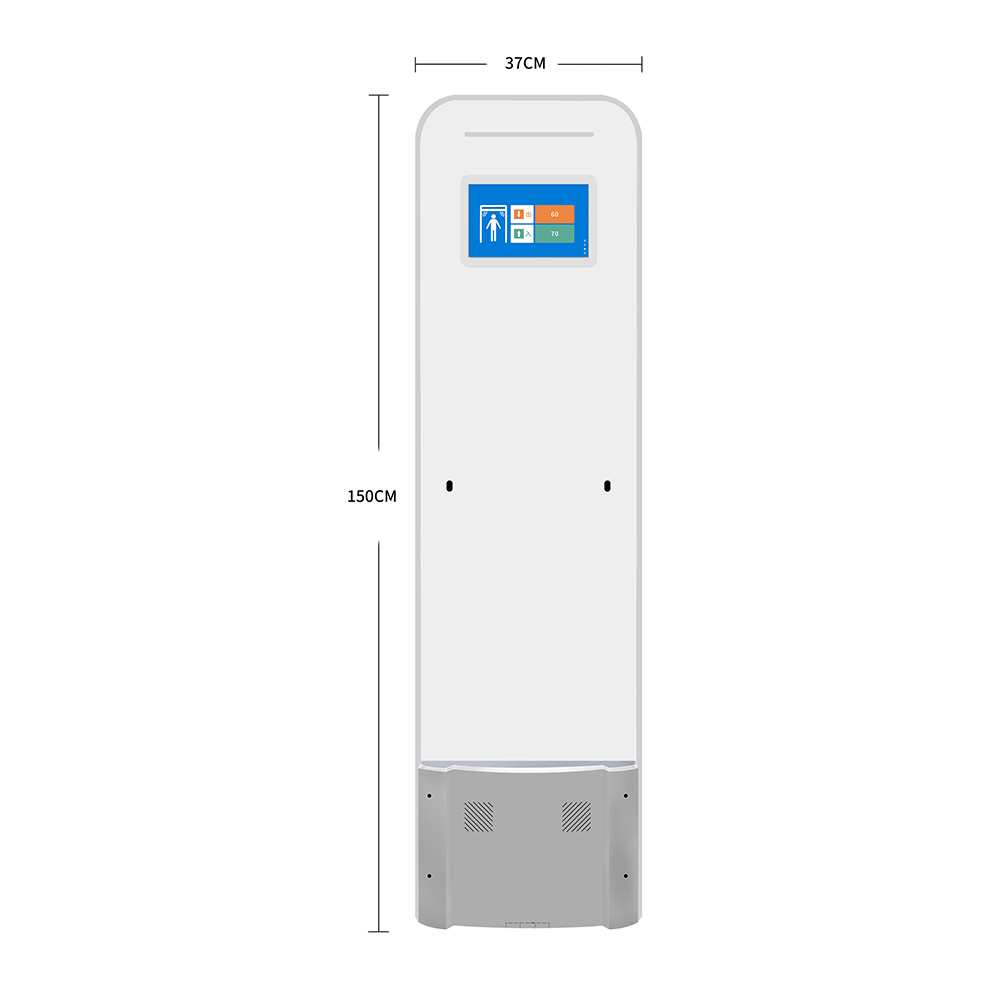

Overall machine size (height*width*depth) |
1555mm*426mm*45mm |
|
