Model: AC-BL1480

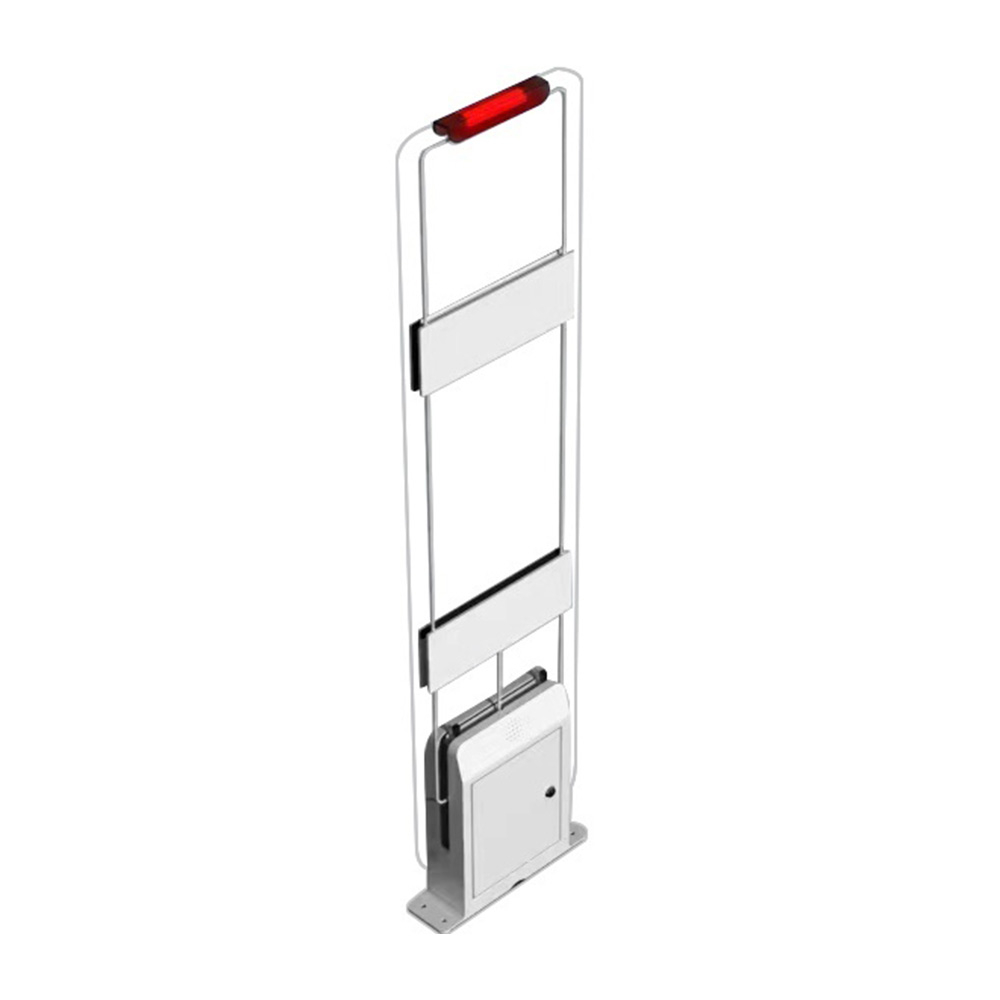

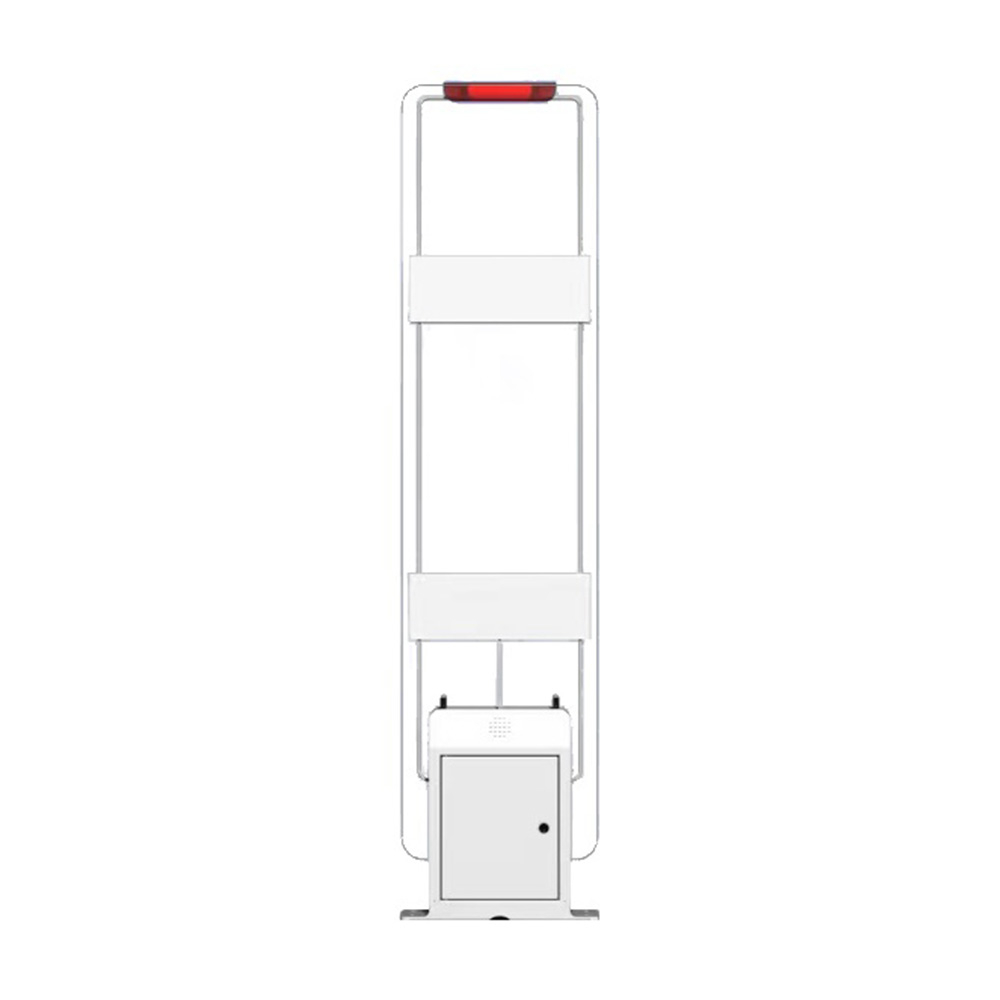

Smart Security Access Control AC-BL1480
$1093.00
暂无数据
Cable length:
Chip:
Interface:
Frequency:
Shipping cost within 10kg is $100, and for every additional 1kg, the shipping cost increases by $5
Description
This intelligent security access control system complies with ISO18000-6C (EPC C1G2) and is suitable for material management, supermarket anti-theft, warehousing, library storage, and archives. It features a simple and elegant design, stable quality, and reliable performance. It supports multi-tag reading, uses an infrared trigger reading mode, supports entry and exit counting, and integrates an audible and visual alarm system with both online and offline EAS alarm modes. It supports Ethernet communication and is expandable to multiple communication methods, including WiFi and 4G.
Detail
|
Purchase code (product model) |
AC-BL1480 (transparent plexiglass) |
|
Performance Parameters |
|
|
CPU control |
ARM (STM32F107 Cortex-M3) |
|
Identification method |
Radio Frequency Identification (UHF RFID) |
|
Read/write function |
Supports multi-tag identification, tag data filtering, and RSSI (Remote Signal Indicator) signal strength. |
|
Reading distance |
0-200cm (optimal for access control within 1.2 meters). |
|
Infrared beam |
2 pairs |
|
Function |
Audio/visual alarm/infrared trigger |
|
Security mode |
EAS, AFI, DSFID, EAS+AFI |
|
Development support |
API, Java C#, SDK development kit |
|
Physical parameters |
|
|
Overall Dimensions (H*W*D) |
1481mm x 353mm x 93mm (excluding accessories) |
|
Communication Interface |
Network port |
|
Mounting Method |
No slotting required, comes with a 1.2m stainless steel cable tray and expansion screws |
|
LED Light Bar |
Red |
|
Ultra-high frequency RFID |
|
|
Frequency Range |
840MHz-960MHz |
|
RF Protocol |
ISO 18000-6C（EPC C1 G2） |
|
RF Output Power |
33dBm/2w |
|
Device Function Demonstration: |
Audible and visual alarms, personnel counting (entry and exit), and multi-tag inventory reading |
|
GPIO Interface |
Four optocoupler inputs (initial low level), four relay outputs (DC24V/2A load capacity) |
|
power supply |
|
|
Power Input |
AC220V |
|
Power |
≤30w |
|
Operating temperature |
-10℃~60℃ |
|
Storage temperature |
-20℃~70℃ |
|
Operating humidity |
10%RH~90%RH |
|
Material |
Acrylic + sheet metal process |
