Model: AH-C77P
UHF RFID Bluetooth Handheld Reader AH-C77P
$315.00
暂无数据
Communication:
Data Collection:
Frequency:
Shipping cost within 10kg is $100, and for every additional 1kg, the shipping cost increases by $5
Description

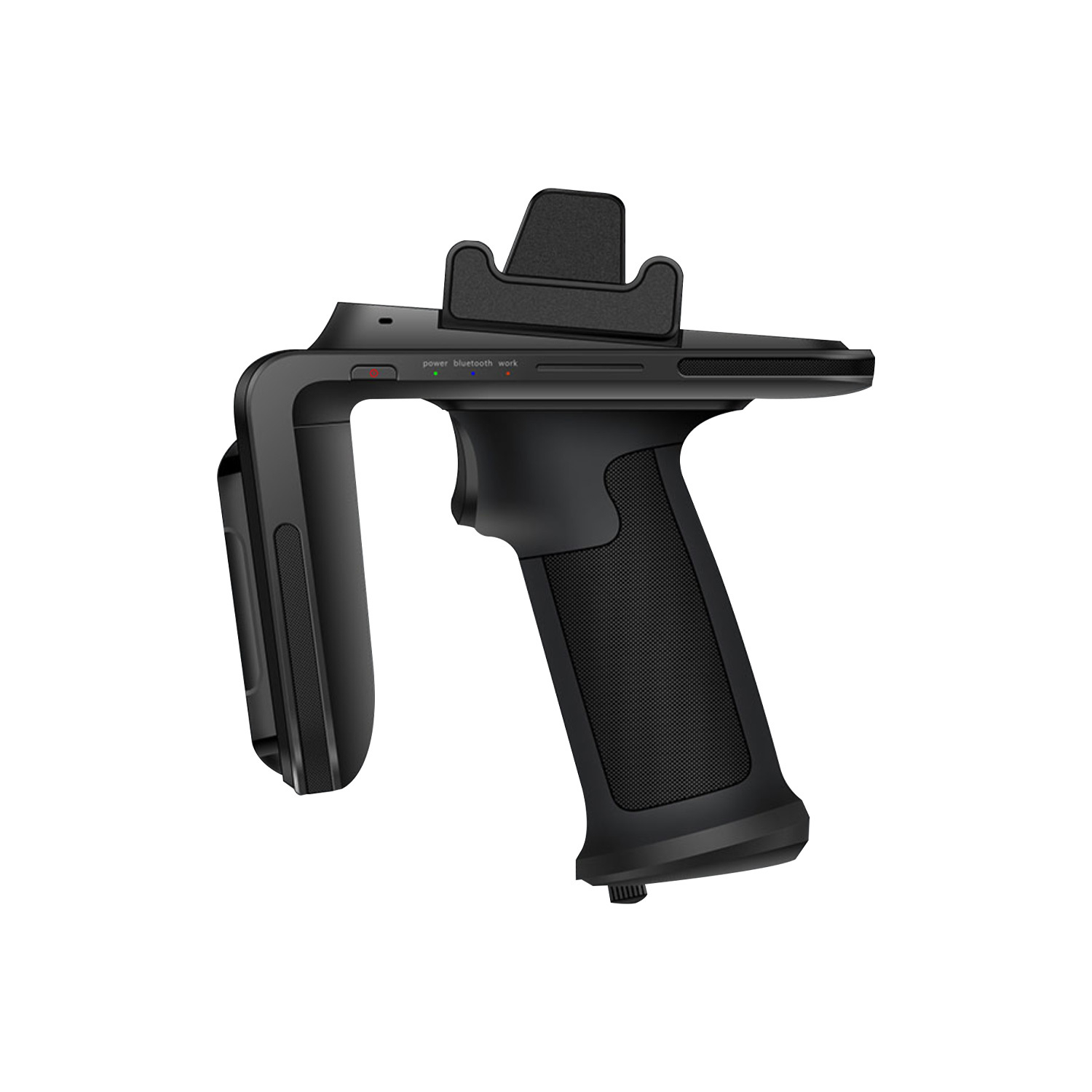

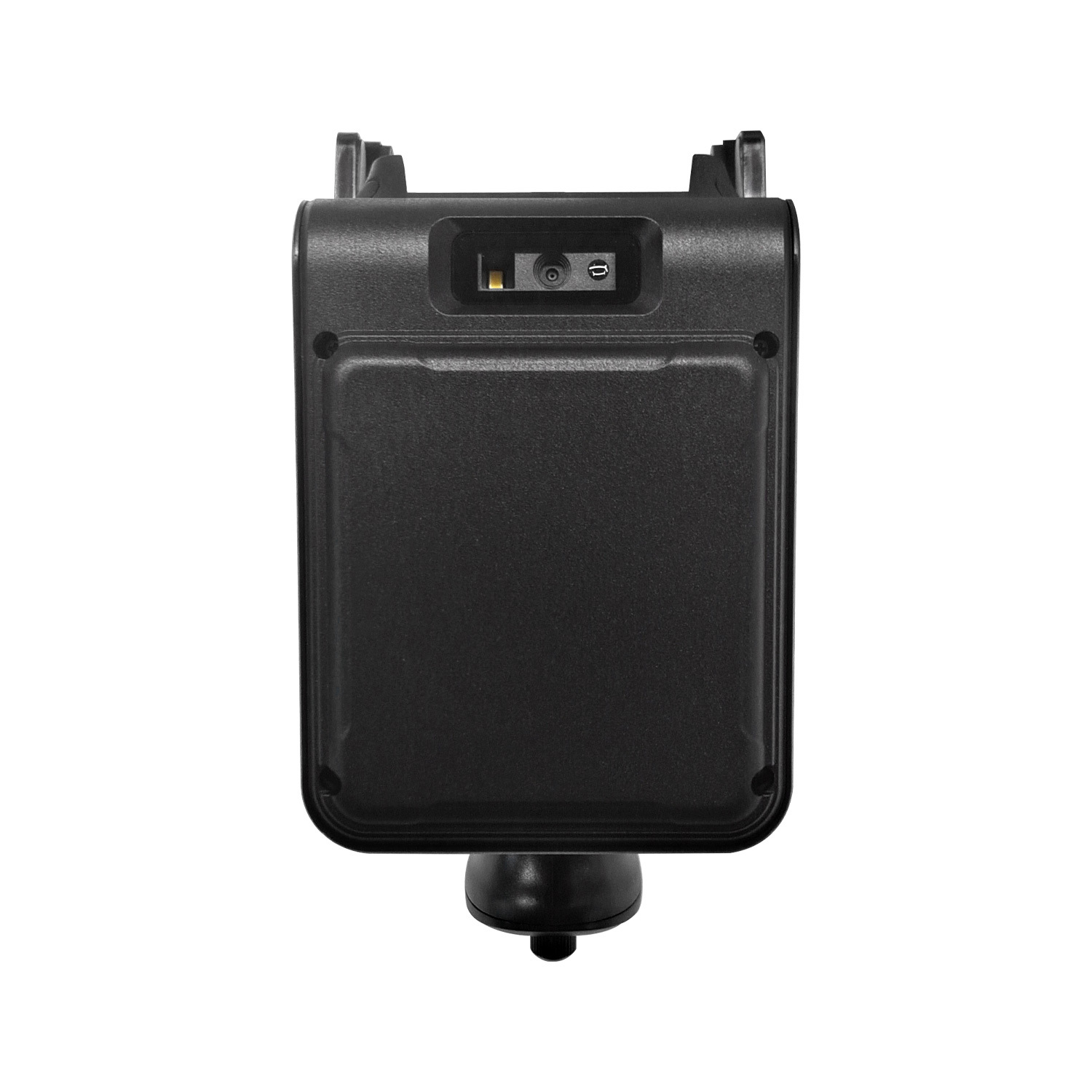

RFID Sled Reader AH-C77P offer powerful UHF reading and writing capabilities powered by the Impinj E710 chip and Impinj Gen2X, along with high-sensitivity barcode scanning. You can attach the mobile phone to VH-C77P UHF Sled Reader for a complete one-piece solution. The device can be widely deployed in power patrol inspection, asset tracking, clothing inventory, warehouse management, vehicle management, financial management, and so forth.
Detail
|
Model No. |
AH-C77P |
|
Physical Characteristics |
|
|
Dimensions |
151 x 76 x 132 mm / 5.94 x 2.99 x 5.19 in. |
|
Weight |
Sled Reader: 438 g / 15.45 oz. |
|
Colour |
Black |
|
Power |
Battery specification: 5200 mAh removable battery |
|
Standby: over 70 hours (keeping bluetooth connected) |
|
|
Continuous use: up to 2.5 hours (UHF reading: 400 tags) |
|
|
Charging time: 4-5 hours (with standard adaptor and USB cable) |
|
|
Interfaces |
USB 3.0 Type-C |
|
Buzzer |
Support |
|
Indicator LED |
Power, Work, Bluetooth |
|
Product material |
Plastic |
|
Size of adapted phone |
Sled Reader: Width 68~80 mm, thickness: within 22 mm |
|
Others: Based on phone case or holder |
|
|
Performance |
|
|
MCU |
Cortex-M3 |
|
72MHz |
|
|
User Environment |
|
|
Operating Temp. |
-4o F to 122o F / -20o C to 50o C |
|
Storage Temp. |
-40o F to 158o F / -40o C to 70o C |
|
Humidity |
5%RH - 95%RH non condensing |
|
Tumble Specification |
1000 x 0.5 m / 1.64 ft. falls at room temperature |
|
Drop Specification |
Multiple 1.5 m / 4.92 ft. drops to concrete across the operating temperature range |
|
Sealing |
IP54 per IEC sealing specifications |
|
ESD |
±15 KV air discharge, ±8 KV conductive discharge |
|
Developing Environment |
|
|
SDK |
Android / IOS |
|
Tool |
Android Studio / Xcode |
|
Language |
Java / Objective-C |
|
Communication |
|
|
Bluetooth |
Bluetooth Low Energy (BLE) 5.0 |
|
RFID UHF |
|
|
Engine |
Module based on Impinj E710 |
|
Antenna parameter |
Circular Polarized Antenna (4dBic) |
|
Frequency |
920-925 MHz / 902-928 MHz / 865-868 MHz |
|
Impinj Gen2X |
Supported |
|
Protocol |
EPC C1 GEN2 / ISO18000-6C |
|
Power |
1W (30dBm, support +5~+30dBm adjustable) |
|
2W Optional (33dBm, for Latin America, etc.) |
|
|
Max Read Range |
30m (Impinj MR6 tag, size 70 x 15mm) 28m (Impinj M750 tag, size 70 x 15mm) 31m (Alien H3 Anti-Metal tag, size 130 x 42mm) |
|
Fastest Read Rate |
1300+ tags/sec |
|
Barcode Scanning (Optional) |
|
|
2D Imager Scanner |
SE2707 |
|
1D Symbologies |
UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS,etc. |
|
2D Symbologies |
PDF417, MicroPDF417, Composite, RSS, TLC- 39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc. |
