Model: AH-71T

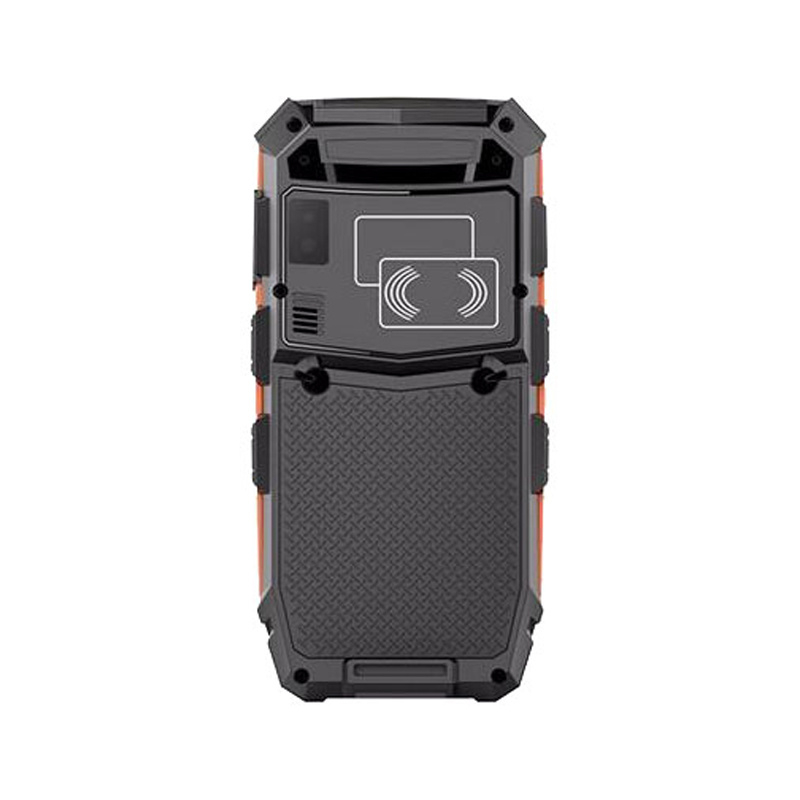

AH-71T Android UHF RFID handheld reader
$491.00
暂无数据
Communication:
Data Collection:
Frequency:
Shipping cost within 10kg is $100, and for every additional 1kg, the shipping cost increases by $5
Description
-The independent intellectual property rights based on the development of high performance hardware and software configuration of the platform is outstanding
- using the Android6.0 operating system, continues to provide optimization and update
-The industrial structure design, fully considering the equipment durability and comfort
- 6000mAh large capacity lithium battery, support hot swappable battery with the exchange, to ensure long life
-UHF used to read and write the indyR2000 module, ensure the read-write distance stability and multi label inventory
-UHF reading distance >6m
·Inventory ·Power patrol ·Personnel ·Livestock ·Accessories ·Clothing retail
·Inventory ·Power patrol ·Personnel ·Livestock ·Accessories ·Clothing retail
Detail
|
Model No. |
AH-71T |
|
|
Performance Index |
||
|
processor |
Cortex A53 quad-core 1.3GHZ processor |
|
|
Memory Capacity |
ROM：EMMC 16GB RAM： LPDDR2 2GB |
|
|
operating system |
Android 7.0 |
|
|
Wireless communication |
GPRS (standard) |
GPRS, EDGE , 4-band 900/1800，850/1900 |
|
|
WCDMA（TDLTE FDDLTE +TDD WCDMA+GSM） |
band 850/1900/2100，Cat.8 HSDPA Cat.6 HSUPA |
|
|
WIFI (standard) |
2.4G/5G dual frequency, conforming to IEEE 802.11a/b/g/n/ac |
|
|
Bluetooth (optional) |
Compliant with Bluetooth 4.0 |
|
Display |
5.0 inch IPS screen, resolution 720*1280, high-definition full viewing angle, visible in sunlight |
|
|
keyboard |
Scan key, function key |
|
|
touch screen |
Gorilla's third-generation secondary tempered glass, supports multi-point capacitive touch |
|
|
Indicator light |
Network indicator light，charging indicator |
|
|
Audio |
Support voice broadcast |
|
|
Micro SD card |
Support 128GB Micro SD card |
|
|
Data Security |
The product has data protection against power failure. In the case of complete power failure (removing the battery and no external power supply), the data is not lost. |
|
|
GPS indicator |
Channel: 12 channels Reception type: L1, C/A code, with carrier phase smoothing Recapture: <1s The latest ASIC chip; EVEREST multipath suppression technology Error range: +-5 meters |
|
|
Navigation map |
Support Kailide, Baidu, Google, Gaode and other navigation maps |
|
|
Input |
Full screen handwriting, half screen handwriting, strokes, pinyin, numbers, letters, symbols |
|
|
Physical interface |
High-speed USB2.0 device end interface, 3.5 stick plug charging interface |
|
|
Camera (optional) |
Rear 8 million pixel camera with flash, auto focus function |
|
|
flashlight |
Low power LED lighting, emergency use |
|
|
Large fingerprint (optional) |
TCS1 biological fingerprint (inductive capacitive), 256x360pixel |
|
|
ID card reading (optional) |
ID card reading of the Ministry of Public Security |
|
|
One-dimensional barcode (optional Honeywell N431X) |
||
|
Support code system |
Code 39、Code 93、Code 128、Codebar、EAN-13、EAN-8、UPC-A、UPC-E、ITF 14、UCC/EAN-128、ITF 25、Matrix 25、EAN-128、ISBN |
|
|
Read distance |
0 cm～50 cm |
|
|
Detect rate |
First reading rate≥99％，error rate≤0.01％，rejection rate≤0.01％ |
|
|
Two-dimensional barcode (QR code) (optional) |
||
|
Honeywell-6603 |
Long recognition distance, high recognition rate, fast decoding speed, bit error rate≤0.01% |
|
|
RFID （optional） |
||
|
UHF RFID |
2m reading distance (related to tag and antenna), support 865~868MHz or 920~925MHz; ISO18000-6C protocol |
|
|
HF RFID(13.56MHz） |
Read and write to ISO15693, ISO14443 dual protocol 13.56MHz tags within a distance of 0~7cm (related to tags and antennas) |
|
|
LF RFID |
125K/134.2K animal ear tag |
|
|
PSAM |
Supports two PSAM cards |
|
|
HF（CPU card） |
Support CPU card reading and writing, use with PSAM |
|
|
Active short-range communication (optional) |
||
|
Active 2.45G |
200m open distance, 200 tags can be read at once |
|
|
433M |
Reading distance above 200m, adjustable distance |
|
|
ZIGBEE |
Suitable for wireless network data collection |
|
|
Battery performance |
||
|
Battery |
4500mAh lithium polymer battery, standby time: more than 200 hours, working time more than 10 hours, AC adapter charging (2A) |
|
|
Battery standby time |
After the battery is fully charged, turn off the wireless communication function and stand by. After 360 hours, it can operate normally |
|
|
Battery charging time |
Charging time <4.5 hours |
|
|
Working time |
>10 hours (one full charging) |
|
|
Work environment |
||
|
Operating temperature |
-20℃~50℃ |
|
|
storage temperature |
-20℃~70℃ |
|
|
Relative humidity |
10%~90%RH，non-condensing |
|
|
Physical parameter |
||
|
total weight |
Less than 450 grams (including battery, excluding charger) |
|
|
Package dimensions |
170 (length) × 85 (width) ×23 (Thickness) ± 2 mm |
|
|
packing list |
1 lithium battery, 1 charging head, 1 DC charging cable, 1 USB data cable |
|
