Model: AH-H78

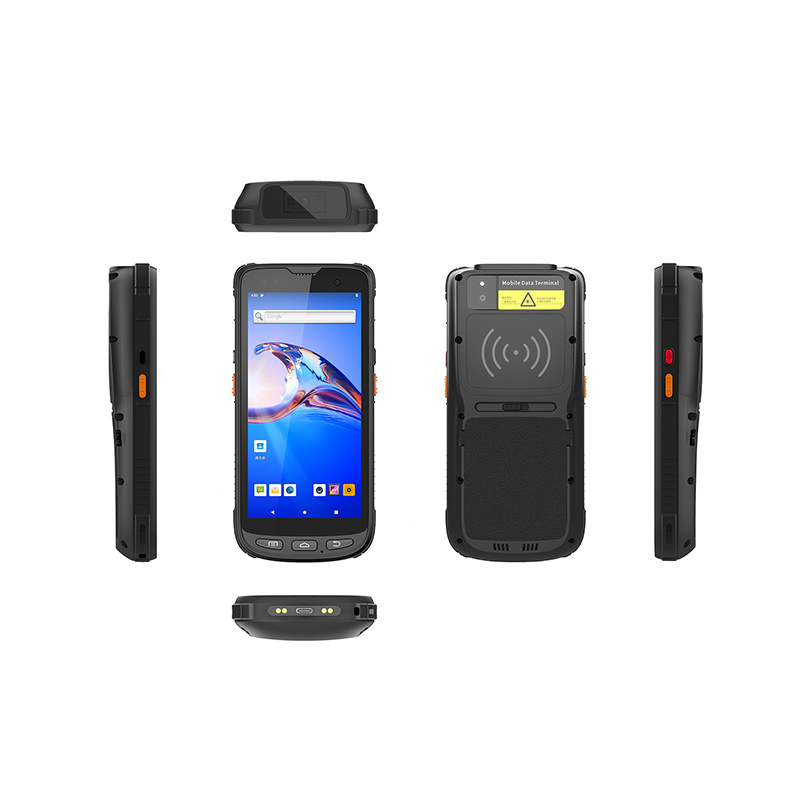

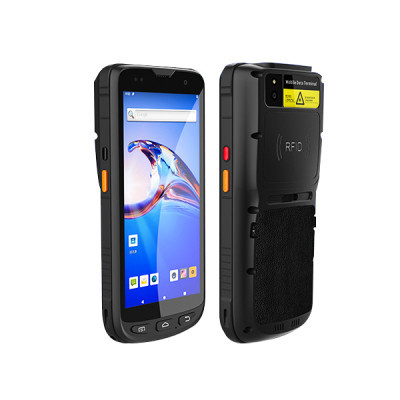

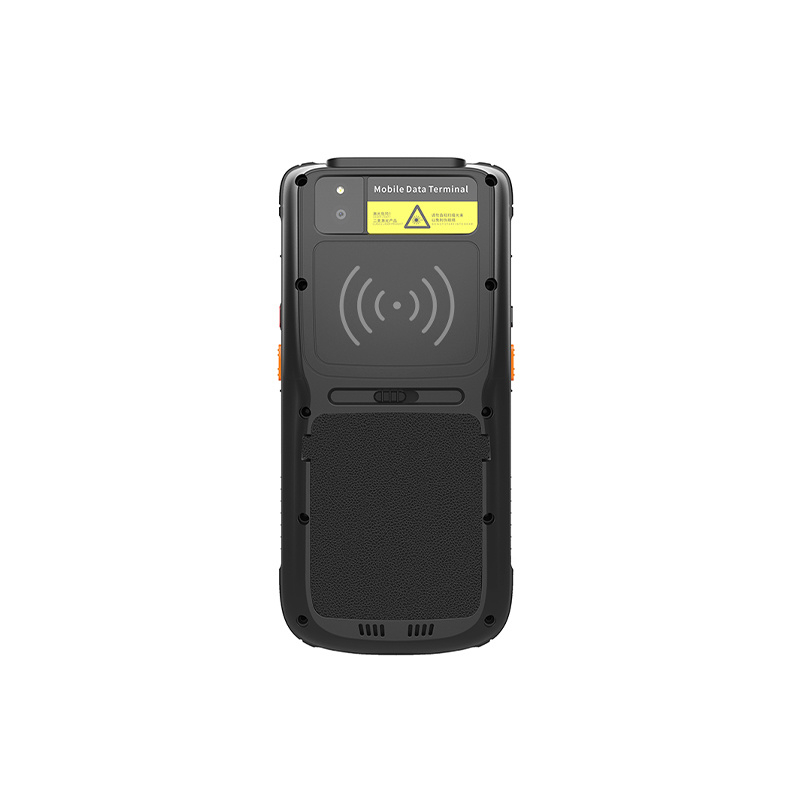

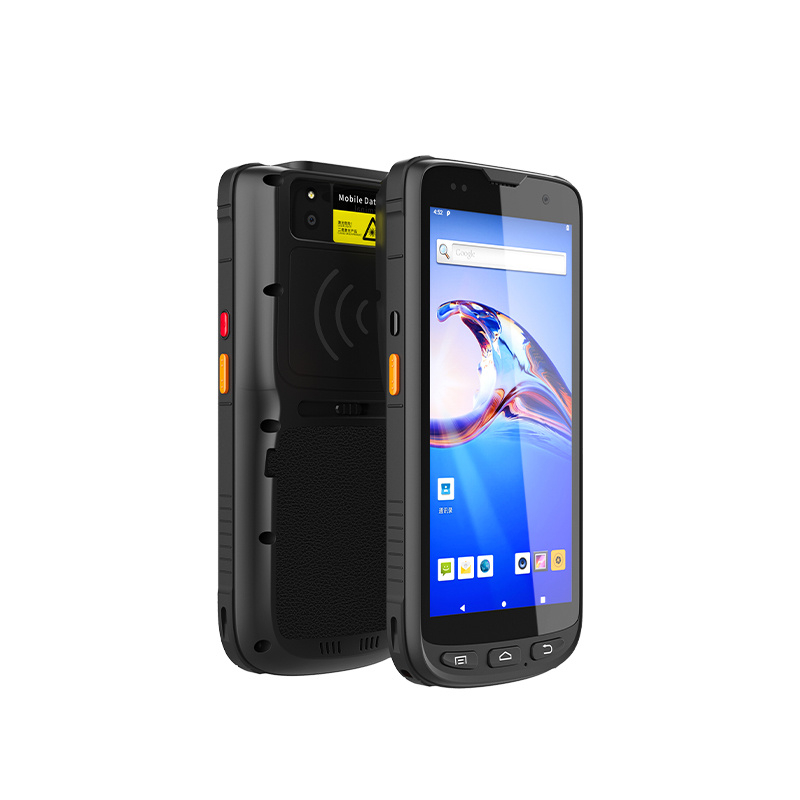

RFID multi-function mid-range handheld terminal AH-H78
$550.00
暂无数据
Communication:
Data Collection:
Frequency:
Shipping cost within 10kg is $100, and for every additional 1kg, the shipping cost increases by $5
Description
1. Industrialand Humanized Hardware Design
2. Octa-Core Processor&Large Memory
3. Superior Data Communication and Security Guarantee
Detail
|
Model No. |
AH-H78 |
|
PHYSICAL CHARACTERISTICS |
|
|
Dimension |
166mm(H)x79mm(W)x27mm(D)±2 mm |
|
Weight |
Net Weight :400g (including battery&wrist strap) |
|
Display |
Tough 5.5 in. TFT-LCD(720x1440)touch screen with backlight |
|
Backlight |
LED backlight |
|
Expansions |
1 PSAM, 1 SIM, 1 TF |
|
Battery |
Rechargeable li-ion polymer, 3.8V,4800mAh |
|
PERFORMANCE CHARACTERSTICS |
|
|
CPU |
Cortex A73 2.0GHz octa-core |
|
Operating System |
Android 10.0 |
|
Storage |
2GB RAM/16GB ROM or 4GB RAM/64GB ROM, MicroSD(max 256GB expansion) |
|
USER ENVIRONMENT |
|
|
Operating Temp |
-20℃ to 50℃ |
|
Storage Temp |
-20℃ to 70℃ |
|
Humidity |
5%RH to 95%RH(non-condensing) |
|
Drop Specifications |
5ft./1.5 m drop to concrete across the operating temperature range |
|
Sealing |
IP65, IEC compliance |
|
ESD |
±15kv air discharge, ±8kv direct discharge |
|
DEVELOPMENT ENVIRONMENT |
|
|
SDK |
VANCH Demo Software Development Kit |
|
Language |
Java |
|
Environment |
Android Studio or Eclipse |
|
DATA COMMUNICATION |
|
|
WWAN |
TDD-LTE Band 38, 39, 40, 41; FDD-LTE，Band 1, 2, 3, 4, 5,7,8,12, 17, 20;WCDMA (850/1900/2100MHz);GSM/GPRS/Edge (850/900/1800/1900MHz); |
|
WLAN |
2.4GHz/5.0GHz Dual Frequency, IEEE 802.11 a/b/g/n/ac |
|
WPAN |
Bluetooth Class v2.1+EDR, Bluetooth v3.0+HS, Bluetooth v4.2 |
|
GPS |
GPS(embedded A-GPS), accuracy of 5 m |
|
ACCESSORIES |
|
|
Standard |
1xPower Supply;1xLithium Polymer Battery; 1xType-C cable |
|
Optional |
Cradle |
|
BARCODE READER(OPTIONAL) |
|
|
2D Barcode |
2D CMOS Imager Zebra Se4710 |
|
Symbologies PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, Postal Codes, US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal. etc. |
|
|
COLOR CAMERA |
|
|
Resolution |
Rear 13 megapixel, front 5.0 megapixel |
|
Lens |
Auto-focus with LED flash Auto-focus with LED flash |
|
RFID READER(OPTIONAL) |
|
|
RFID LF |
Frequency 125KHz/134.2KHz(FDX-B/HDX) |
|
Protocol ISO 11784&11785 |
|
|
R/W Range 2cm to 5cm |
|
|
RFID HF/NFC |
Frequency 13.56MHz |
|
Protocol ISO 14443A&15693 |
|
|
R/W Range 2cm to 8cm |
|
|
RFID UHF |
Frequency 865~868MHz or 920~925MHz |
|
Protocol EPC C1 GEN2/ISO 18000-6C |
|
|
Antenna Gain Circular antenna(2dBi) |
|
|
R/W Range 1.5 m to 2 m(tags and environment dependent) |
|
|
FINGERPRINT READER(OPTIONAL) |
|
|
Sensor |
TCS1xx |
|
Sensor type |
Capacitive, area sensor |
|
Resolution |
508 DPI |
|
Performance |
FRR<0.008%, FAR<0.005% |
|
Capacity |
1000 |
|
PSAM SECURITY(OPTIONAL) |
|
|
Protocol |
ISO 7816 |
|
Baudrate |
9600, 19200, 38400,43000, 56000, 57600, 115200 |
|
Slot |
2 slots(maximum) |
