Model: APR-0407Plus
RFID Printer APR-0407Plus
$2577.00
暂无数据
Shipping cost within 10kg is $100, and for every additional 1kg, the shipping cost increases by $5
Description
Adopting advanced and powerful quad core processors, and applying innovative and leading printer thermal history control technology HEAT， Take you on a journey of surging power and enjoy exquisite delicacy beyond the past.

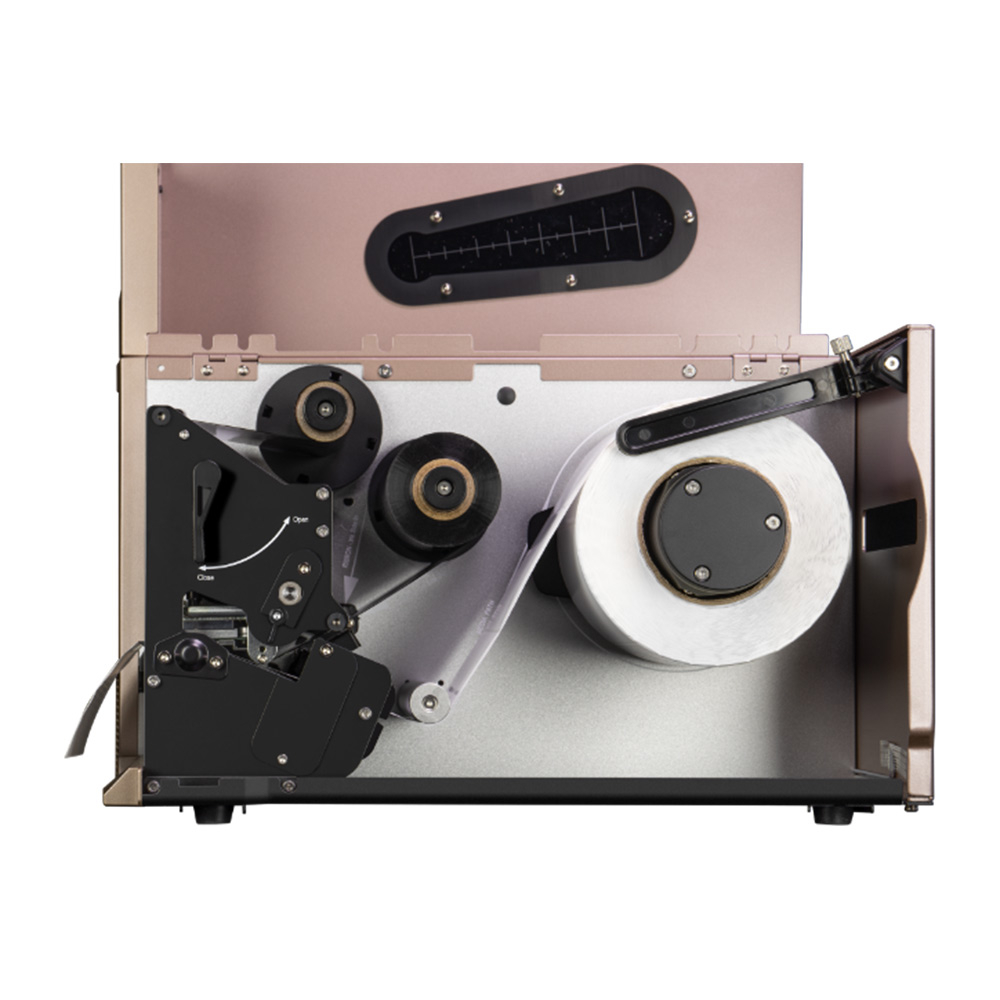

The intricately designed fixed movement frame is a great innovation, perfectly integrating the unparalleled stability, durability, and installation convenience of industrial grade equipment.

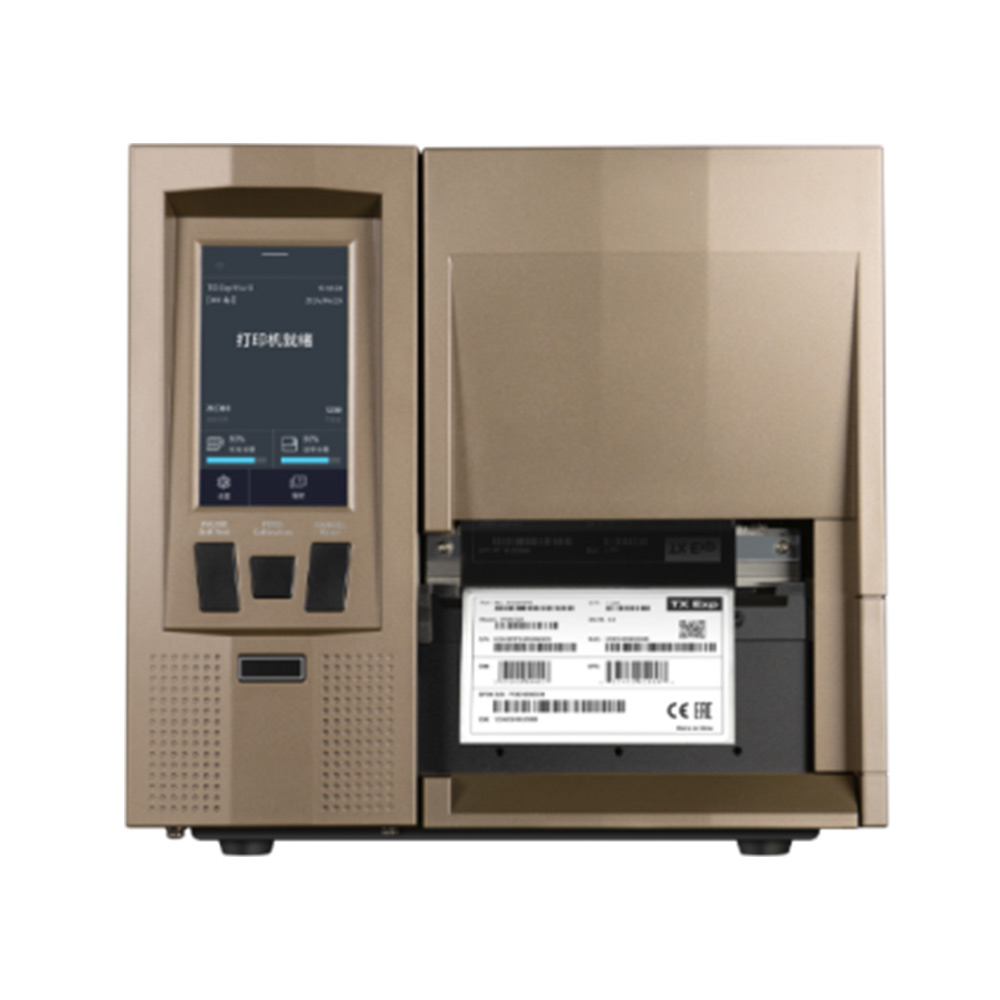

Equipped with a 4.5-inch color touch screen, smooth operation, and enjoyable human-computer interaction, this extraordinary charm and ability are captivating at first sight.
Detail
|
Procurement code (product model) |
APR-0407Plus |
|
Performance parameters |
|
|
Printing method |
Heat transfer printing, thermal sensitivity |
|
Resolution ratio |
203 dpi |
|
Maximum printing speed |
16 ips (406.4 mm/s) |
|
Maximum print width |
4.09"(104 mm) |
|
Maximum print length |
196"(5000 mm) |
|
MPU |
64 bit bus with four Cortex cores ®- A53 core, maximum main frequency 1.8GHz |
|
GPU |
support 2D(GC320)和3D(GCNanoUltra) Graphics hardware acceleration |
|
Memory |
2GB DDR4 RAM, 8GB Managed NAND Flash |
|
HEAT™ grade④ |
I grade |
|
RFID Function (only supported for RFID models) |
support UHF EPCGen2,1S0 18000-6C protocols |
|
Label roll size |
Width: maximum 4.56 "(116 mm), minimum 0.39" (10 mm) Outer diameter: maximum 8 "(203.2 mm) Inner diameter: minimum 1.5" (38 mm)/3 "(76.2mm) |
|
Minimum height of label |
Tear-off mode：0.2″ (5 mm) Paper cutting mode：0.79″ (20 mm)Paper tearing mode: 0.2 "(5 mm) Paper cutting mode: 0.79 "(20 mm) |
|
Label thickness |
Regular barcode label/RFID label printer: 0.0024 "~0.012" (0.06~0.305 mm), including base paper thickness Metal resistant RFID tag printer ②: not greater than 0.063 inches (1.6 mm), including the thickness of the backing paper |
|
Ribbon size |
Length: Maximum 1968 '(600 m) Width: Maximum 4.65' (118 mm) Outer diameter: maximum 2.75 "(70 mm) Inner diameter: minimum 1" (25.4 mm) Carbon belt type: both internal and external carbon can be used |
|
Paper detection method |
Upward reflection: black marked on top Downward reflection: black mark below Penetration: continuous paper, gaps, perforated labels |
|
Typeface |
Five built-in dot matrix fonts, including the basic Latin and Latin-1 supplementary character set, two built-in scalable fonts, one supporting Latin, Greek, and Cyrillic; Another specialized support for GB2312 Chinese character set Users can download TrueType fonts |
|
Bar code |
1d barcode：Code 39, Code 93, Code 128/subset A,B,C, Codabar, Interleave 2 of 5, UPC A/E 2 and 5 add-on, EAN-13/8/128, UCC-128,etc. 2d barcode：MaxiCode, PDF417, Data Matrix, QR Code, Hanxin code, etc |
|
Interface |
RS-232 port，10/100/1000Mbps EtherNet，USB DEVICE 2.0，USB HOST |
|
Screen display |
4.5″ LCD Capacitive touch screen |
|
Ac adapter |
100 ~ 240 V AC, 50/60 Hz |
|
Weight |
15 kgs (33.07 lbs) |
|
Size |
wide 11.3″ (286 mm) × depth17.6″ (448 mm) × height 10.7″ (271 mm) |
|
Work environment |
temperature：0℃ ~ 40℃ (32℉ ~ +104℉) relative humidity：5% ~ 85% No condensation |
|
Storage environment |
temperature：-40℃ ~ 60℃ (-40℉ ~ +140℉) relative humidity：5% ~ 85% No condensation |
